Mars Air Systems HV296-2UH-TS High Velocity Air Curtain, 96"-107" Door, Unheated, Dual 1 HP Motors 460V

Name: Chef's Deal — Murfreesboro Showroom
Address: 1155 Haley Rd, Murfreesboro, TN, 37129, US
Telephone: +1-877-254-5449
Price range: $$

SKU MRS-HV296-2UH-TS

$3,239.37/Each

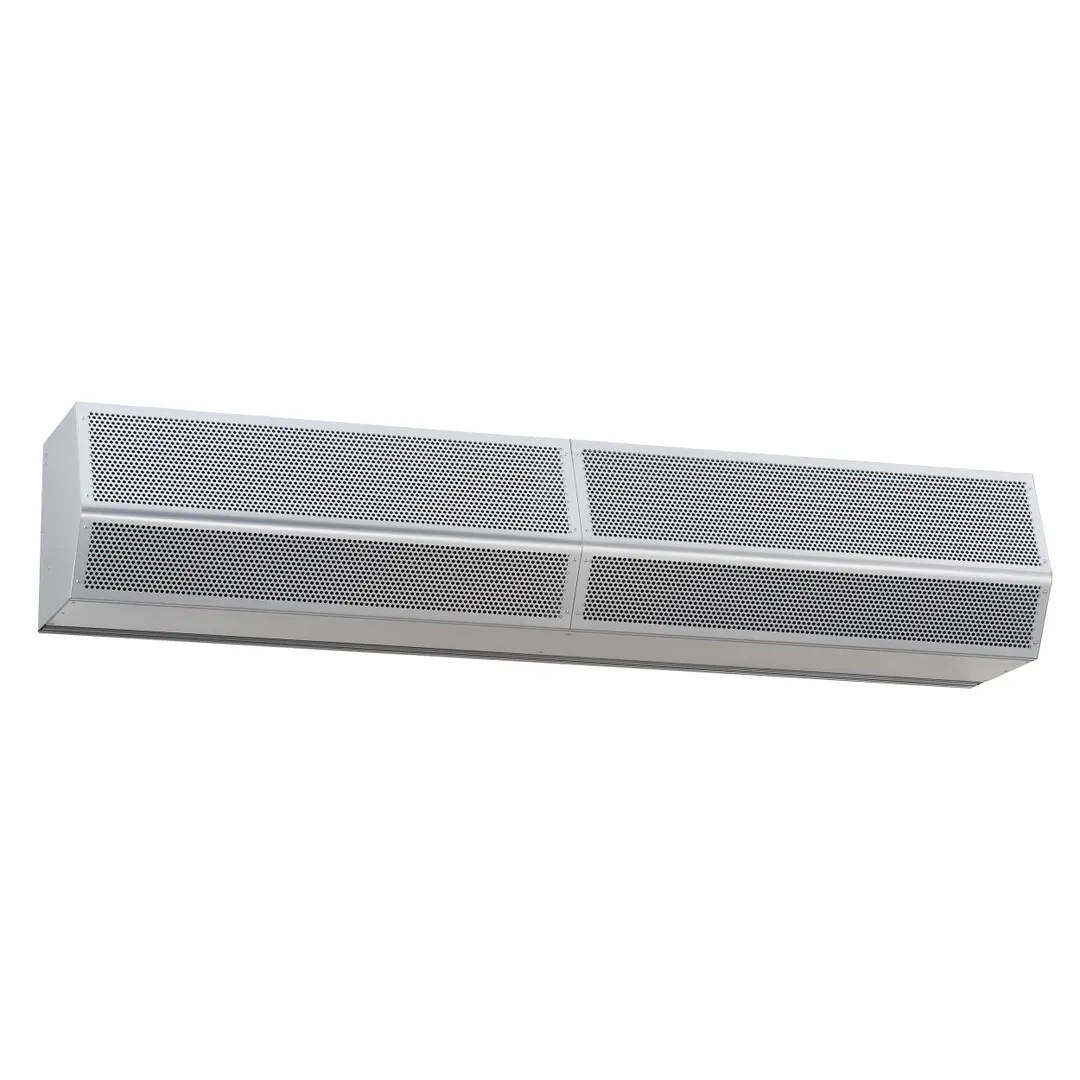

Mars Air Systems HV296-2UH-TS High Velocity Air Curtain, 96"-107" Door, Unheated, Dual 1 HP Motors 460V

$3,239.37/Each

Net 30 or as low as $300/month with

Credit Key Apply Now

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Marketing Sheet

Mars Air Systems HV296-2UH-TS Specs

Manufacturer	Mars Air Systems
Model Number	HV296-2UH-TS
Weight	272 lbs
Width	96″
Depth	15.63″
Height	14″
Type	un-heated
Horse Power Per Motor	1 hp
Motors	2 motors
Max Opening Height Window Door	14 ft
Certifications	cETLus

View All Mars Air Systems Products >

Description

Reviews

Efficient Entrance Air Barrier for Restaurants

Keep restaurant entrances climate-controlled and insect‑free with Mars Air Systems HV296-2UH‑TS high‑velocity air curtain.

Key Features

Fits 96"–107" door widths, sealing openings up to 14 ft high.
Two 1 HP NEMA‑1 TEAO motors (460 V 3‑phase) deliver 6,144 fpm core velocity.
Galvanized steel cabinet with titanium‑silver powder‑coat finish resists corrosion.
cETLus and AMCA‑certified for UL 507, CSA 22.2, and ASHRAE vestibule compliance.
Internal junction boxes and optional mounting brackets simplify installation and service.

From The Manufacturer

High Velocity Series 2 air curtain for 96"W door, unheated, galvanized steel cabinet with Titanium Silver powder coat finish, (2) 1 HP motors, 460v/60/3-ph, cETLus

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
