Energy‑Efficient Door Barrier for High‑Traffic Restaurants
Keep conditioned air inside your kitchen while blocking drafts and insects with a powerful, unheated air curtain.
Key Features
- Four 1/2 HP NEMA 1 TEAO motors delivering 5,840 CFM airflow for a 144"‑155" opening.
- Aluminum cabinet with Pearl White powder‑coat finish provides corrosion‑resistant durability.
- cETLus and AMCA‑certified performance ensures compliance with UL 507, CSA 22.2, and ASHRAE 90.1 standards.
- Operates on 208‑230 V single‑phase, 60 Hz power; each motor draws 10 A full‑load.
- Supports doors up to 8 ft high and can be suspended without intermediate support for widths up to 72".
From The Manufacturer

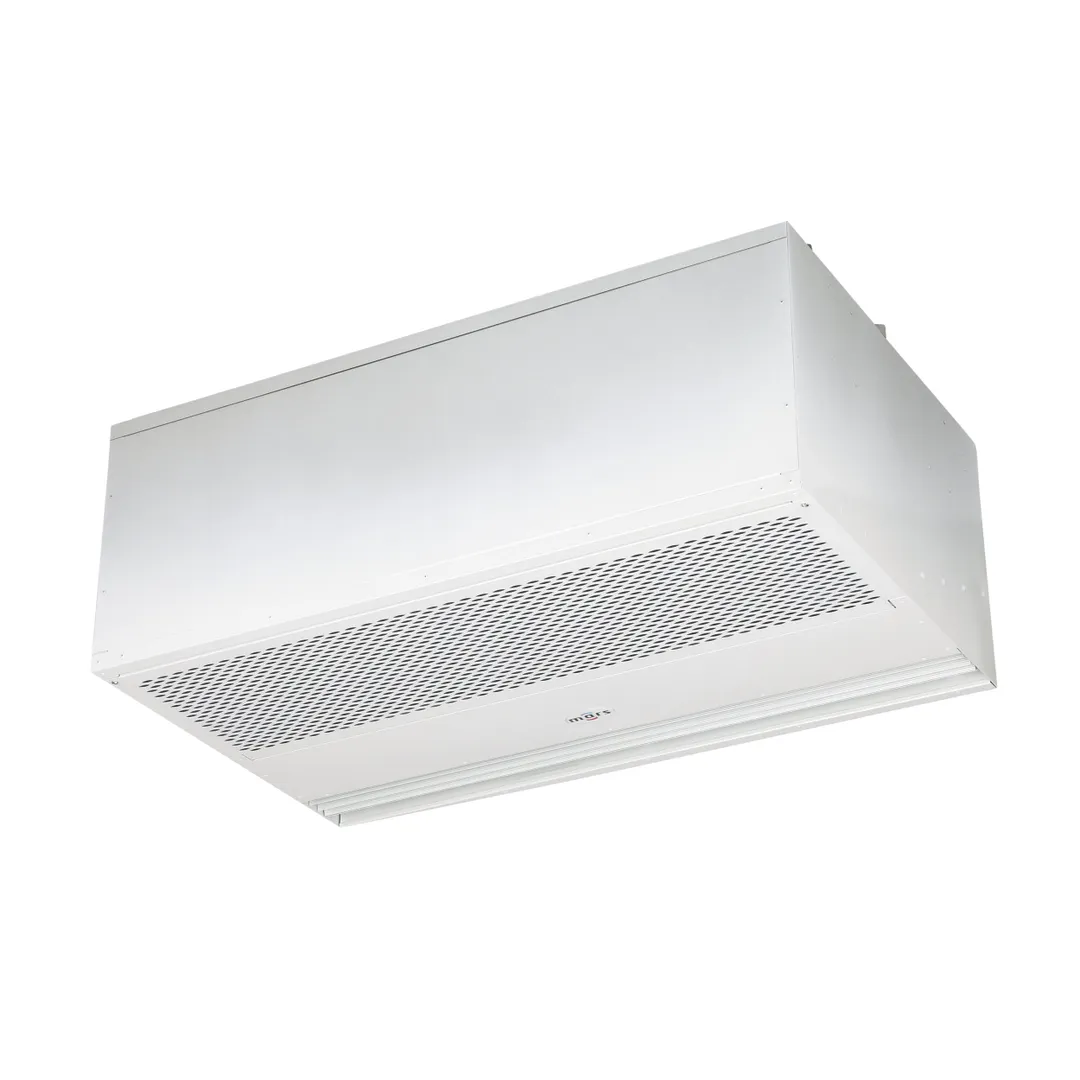

Phantom 10 air curtain for 144"W door, unheated, aluminum cabinet, Pearl White powder coat finish, (4) 1/2 HP motor, 208-230v/60/1-ph, cETLus
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
