Enhanced Doorway Climate Control for Restaurants
Keep indoor temperatures stable and reduce energy loss with a high‑capacity, un‑heated air curtain designed for 108"‑119" doors.
Key Features
- Three 1/2 HP NEMA 1 TEAO motors deliver 4,137 CFM airflow for up to 12 ft environmental separation.
- Galvanized steel cabinet with Obsidian Black powder‑coat finish provides corrosion‑resistant durability in commercial kitchens.
- cETLus certified and AMCA‑rated for airflow, velocity uniformity, and power consumption, meeting UL 507 and CSA 22.2 standards.
- 220 V / 50 Hz single‑phase power requirement with full‑load amps of 15.3 A per motor ensures reliable operation.
- Easy installation with internal junction boxes, 2" side clearances, 6" top clearance, and optional adjustable mounting brackets.
From The Manufacturer

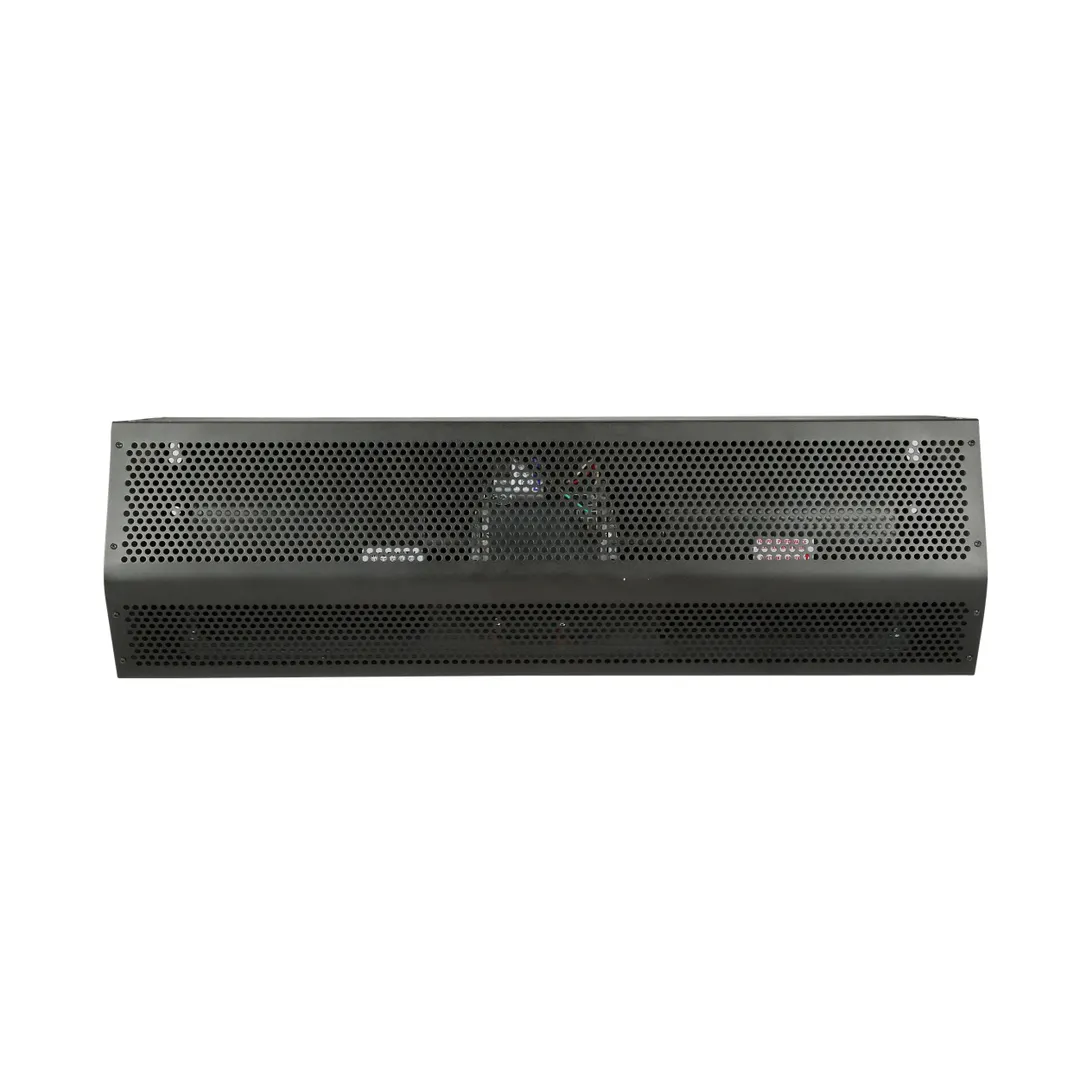

Standard Series 2 air curtain for 108"W door, unheated, galvanized steel cabinet with Obsidian Black powder coat finish, (3) 1/2 HP motors, 220v/50/1-ph, 1.5 kW, cETLus
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
