Mars Air Systems STD2144-3UG-OB Air Curtain, 144"-155" Door, Unheated, Steel, -1/2 HP, 208-230V 3-Phase

Name: Chef's Deal — Murfreesboro Showroom
Address: 1155 Haley Rd, Murfreesboro, TN, 37129, US
Telephone: +1-877-254-5449
Price range: $$

SKU MRS-STD2144-3UG-OB

$3,197.26/Each

Mars Air Systems STD2144-3UG-OB Air Curtain, 144"-155" Door, Unheated, Steel, -1/2 HP, 208-230V 3-Phase

$3,197.26/Each

Net 30 or as low as $296/month with

Credit Key Apply Now

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Marketing Sheet

Mars Air Systems STD2144-3UG-OB Specs

Manufacturer	Mars Air Systems
Model Number	STD2144-3UG-OB
Weight	152.5 lbs
Width	144″
Depth	12.75″
Height	12.13″
Type	un-heated
Horse Power Per Motor	1/2 hp
Motors	3 motors
Max Opening Height Window Door	12 ft
Certifications	cETLus

View All Mars Air Systems Products >

Description

Reviews

Efficient Air Barrier for Restaurant Entrances

Provides reliable, unheated air barrier for 144" doors, improving energy efficiency and keeping insects out in busy restaurant entrances.

Key Features

Galvanized steel cabinet with Obsidian Black powder‑coat finish offers corrosion‑resistant durability for high‑traffic kitchen areas.
Three ½ HP NEMA 1 TEAO motors (208‑230 V, 3‑phase) deliver 4.8 A per motor, meeting cETLus certification for safety.
Designed for door widths 144‑155 in and opening heights up to 12 ft, providing up to 4,326 CFM airflow for effective environmental separation.
ETL‑certified to UL 507 and AMCA‑211, approved as an alternate to vestibules per ASHRAE 90.1, ensuring compliance with commercial building codes.

From The Manufacturer

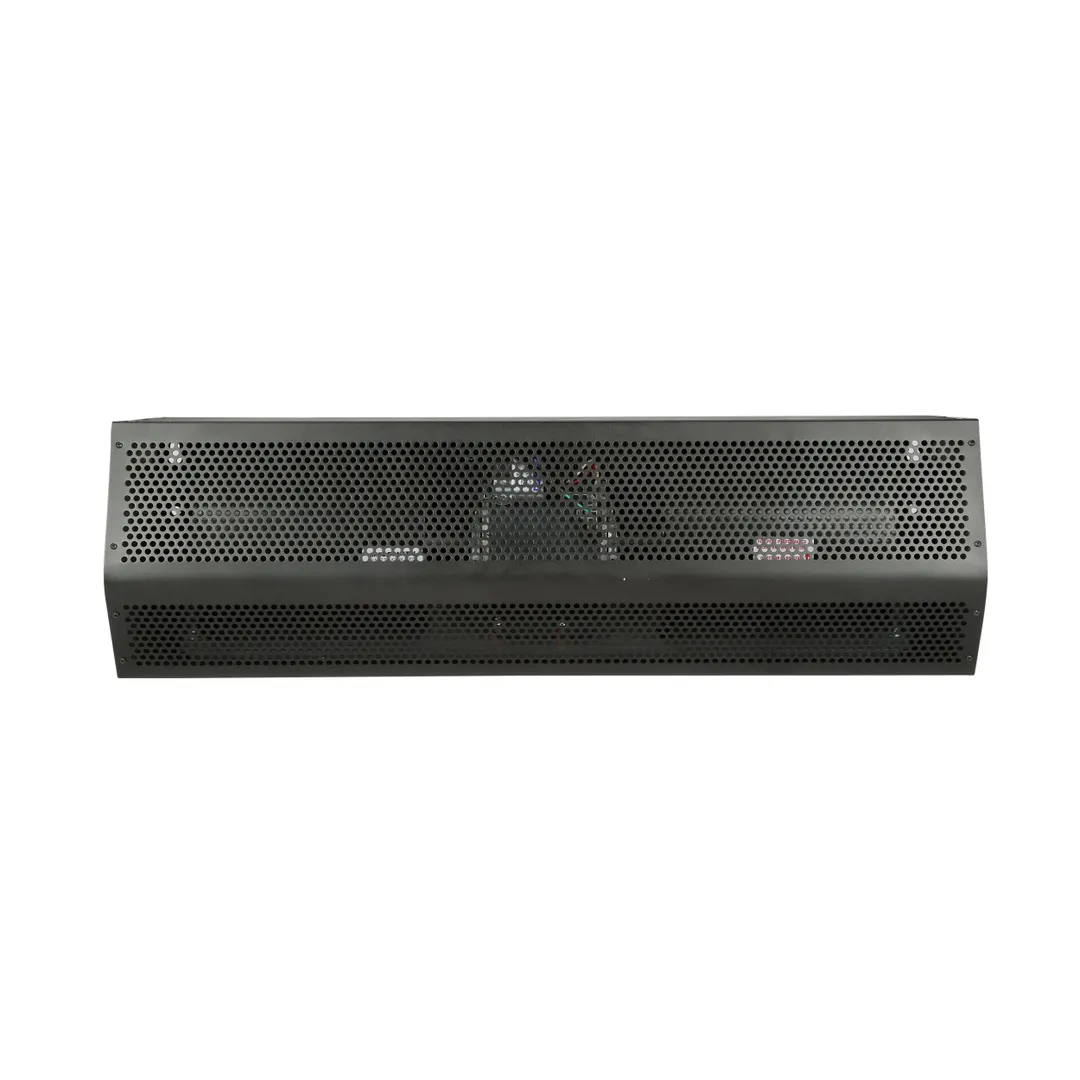

Standard Series 2 air curtain for 144"W door, unheated, galvanized steel cabinet with Obsidian Black powder coat finish, (3) 1/2 HP motors, 208-230v/60/3-ph, 1.65 kW, 5.4/4.8 amps, cETLus

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
