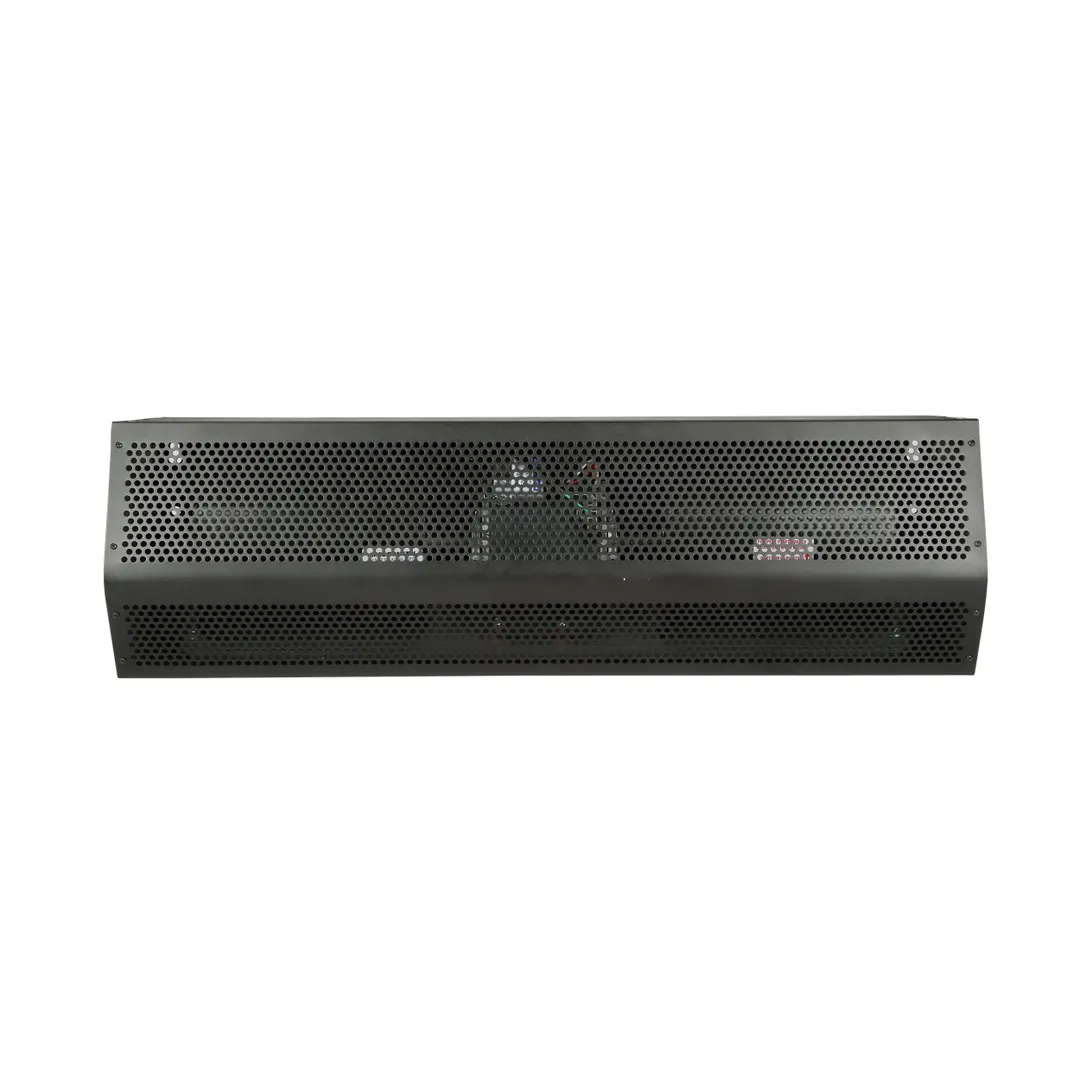

Mars Air Systems STD284-2UD-OB - 84"-95" Unheated Air Curtain, 2x-1/2 Motors, Cabinet, 208-230V, cETLus

Name: Chef's Deal — Murfreesboro Showroom
Address: 1155 Haley Rd, Murfreesboro, TN, 37129, US
Telephone: +1-877-254-5449
Price range: $$

SKU MRS-STD284-2UD-OB

$1,805.67/Each

Mars Air Systems STD284-2UD-OB - 84"-95" Unheated Air Curtain, 2x-1/2 Motors, Cabinet, 208-230V, cETLus

$1,805.67/Each

Net 30 or as low as $167/month with

Credit Key Apply Now

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Marketing Sheet

Mars Air Systems STD284-2UD-OB Specs

Manufacturer	Mars Air Systems
Model Number	STD284-2UD-OB
Weight	15 lbs
Width	84″
Depth	12.75″
Height	12.13″
Type	un-heated
Horse Power Per Motor	1/2 hp
Motors	2 motors
Max Opening Height Window Door	12 ft
Certifications	cETLus

View All Mars Air Systems Products >

Description

Reviews

Efficient Doorway Air Barrier for Restaurants

Keep indoor climate stable and reduce energy loss across an 84"‑95" door.

Key Features

Un‑heated design fits 84"‑95" openings and provides up to 12 ft of environmental separation.
Two 1/2 hp NEMA 1 TEAO motors operate on 208‑230 V single‑phase, drawing 5.0 A per motor.
Galvanized steel cabinet finished in Obsidian Black powder coat offers corrosion resistance for busy kitchen zones.
cETLus certified and AMCA‑rated for airflow, velocity uniformity, and power consumption.
SimpleLink optional junction box and mounting brackets enable quick installation without intermediate support.

From The Manufacturer

Standard Series 2 air curtain for 84"W door, unheated, galvanized steel cabinet with Obsidian Black powder coat finish, (2) 1/2 HP motors, 208-230v/60/1-ph, 1.02 kW, 5.0 amps, cETLus

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
