Mars Air Systems STD296-2UA-OB Air Curtain, 96"-107" Door, Unheated, Steel, Black, 1/2 HP Motors

Name: Chef's Deal — Murfreesboro Showroom
Address: 1155 Haley Rd, Murfreesboro, TN, 37129, US
Telephone: +1-877-254-5449
Price range: $$

SKU MRS-STD296-2UA-OB

$1,925.40/Each

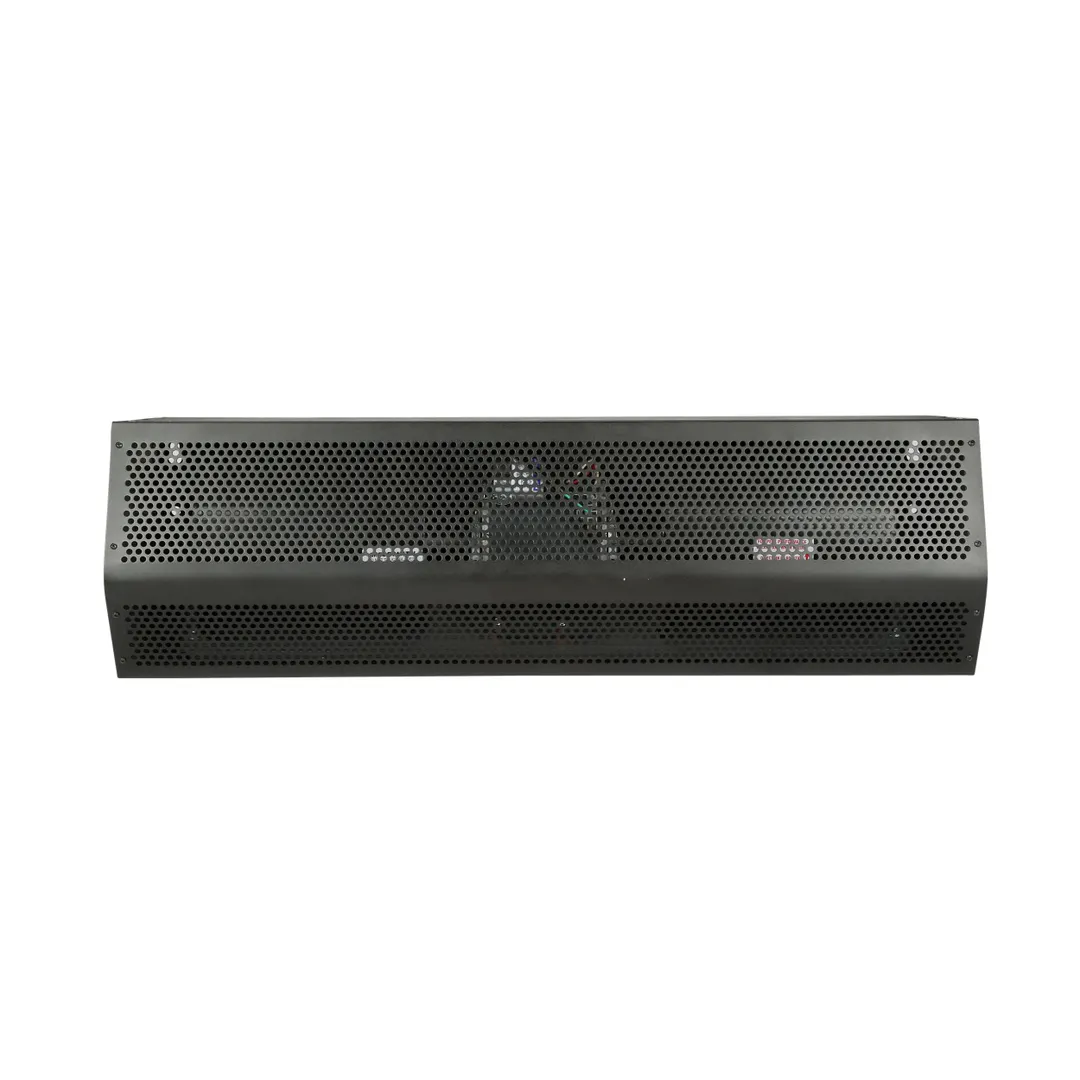

Mars Air Systems STD296-2UA-OB Air Curtain, 96"-107" Door, Unheated, Steel, Black, 1/2 HP Motors

$1,925.40/Each

Net 30 or as low as $178/month with

Credit Key Apply Now

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Marketing Sheet

Mars Air Systems STD296-2UA-OB Specs

Manufacturer	Mars Air Systems
Model Number	STD296-2UA-OB
Weight	148 lbs
Width	96″
Depth	12.75″
Height	12.13″
Type	un-heated
Horse Power Per Motor	1/2 hp
Motors	2 motors
Max Opening Height Window Door	12 ft
Certifications	cETLus

View All Mars Air Systems Products >

Description

Reviews

Efficient Doorway Air Separation for Restaurants

Provides reliable, energy‑efficient air separation for 96" doors, keeping indoor climate stable and reducing pest intrusion in busy restaurant entrances.

Key Features

Galvanized steel cabinet with Obsidian Black powder‑coat finish offers corrosion‑resistant durability for high‑traffic commercial settings.
Two ½ HP NEMA 1 TEAO motors (115 V/60 Hz, 10.2 A) deliver 2,884 CFM airflow, meeting cETLus certification for safety.
Fits 96‑107" door widths and up to 12 ft opening height, providing effective environmental separation, insect control, and AMCA‑certified performance.

From The Manufacturer

Standard Series 2 air curtain for 96"W door, unheated, galvanized steel cabinet with Obsidian Black powder coat finish, (2) 1/2 HP motors, 115v/60/1-ph, 1.1 kW, 10.2 amps, cETLus

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
