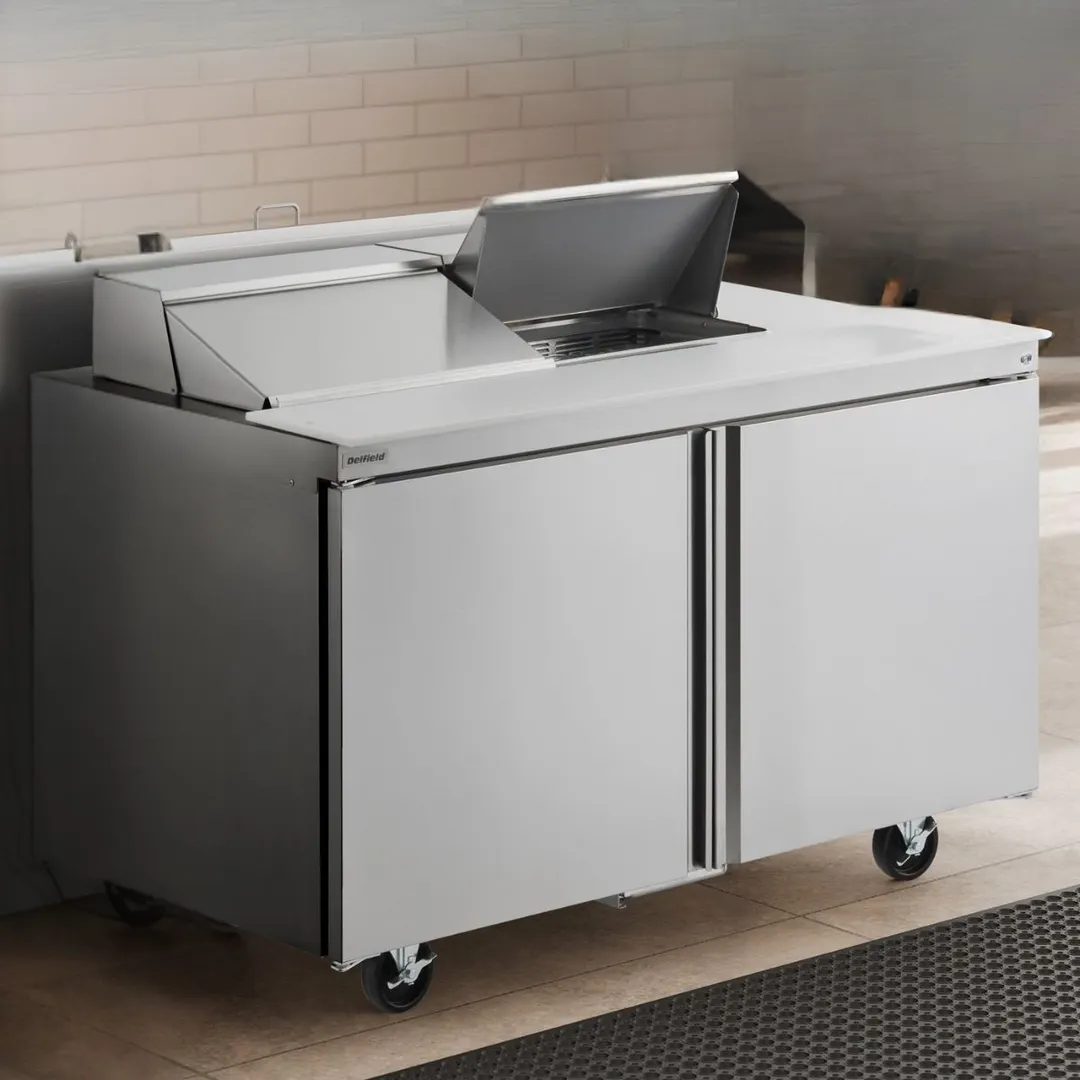

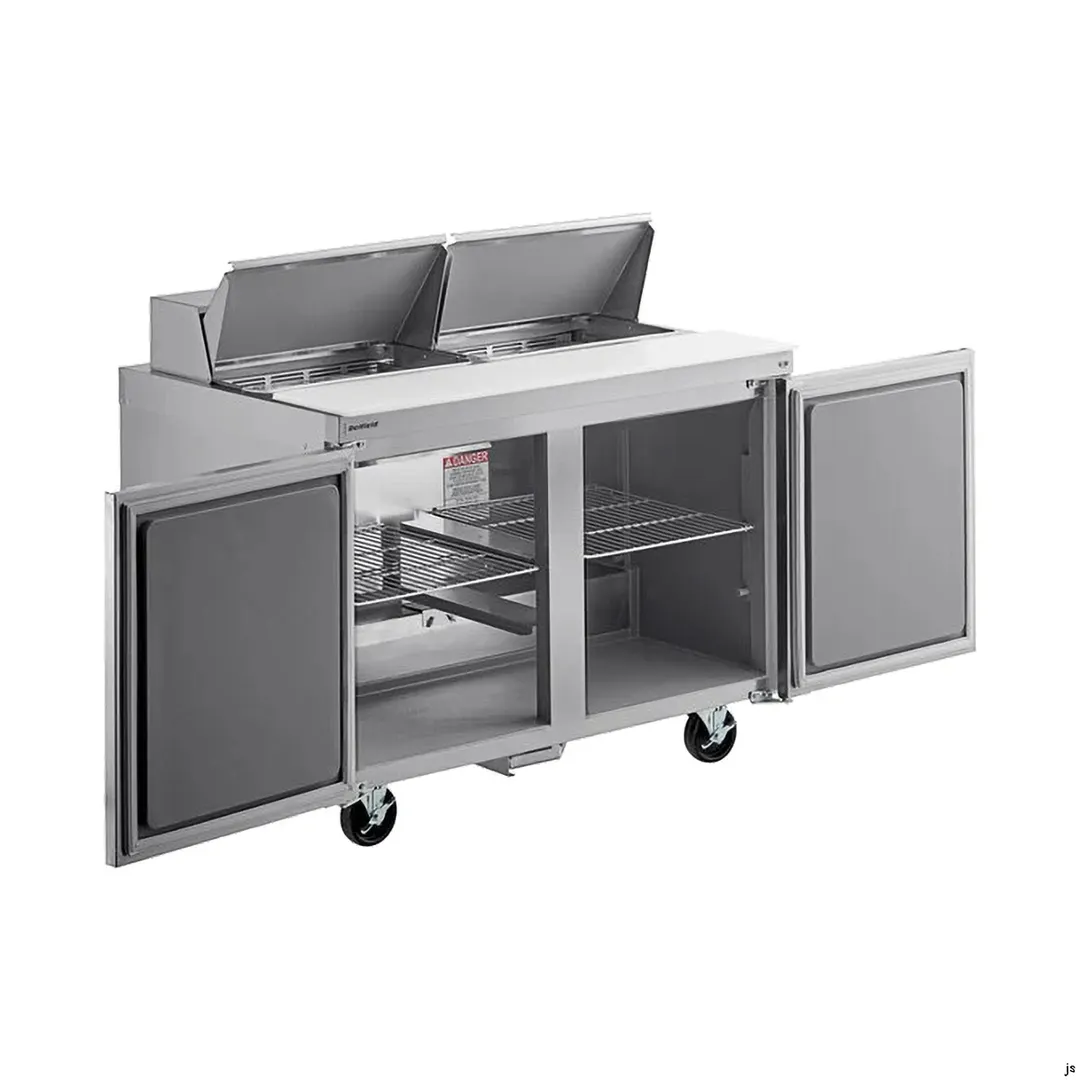

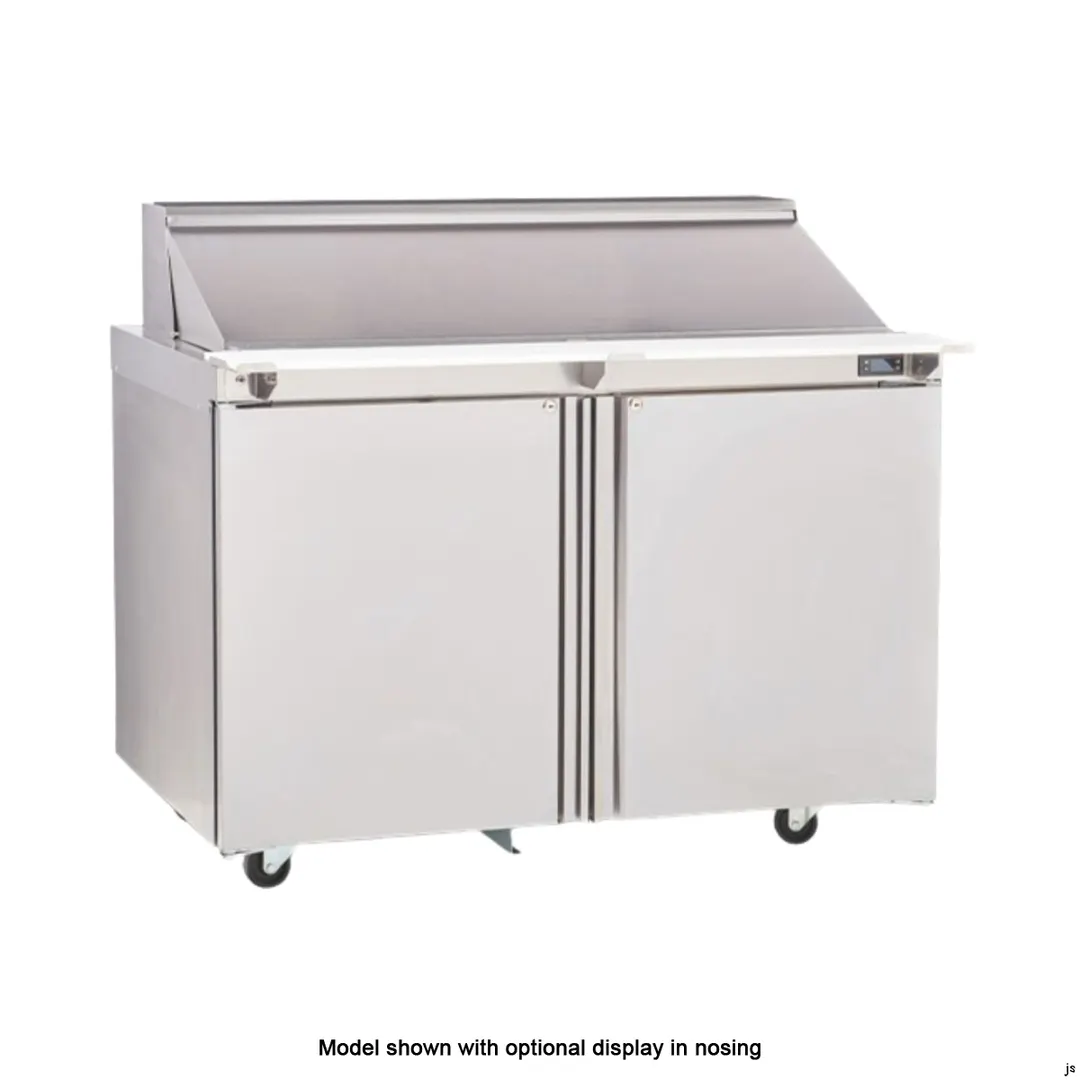

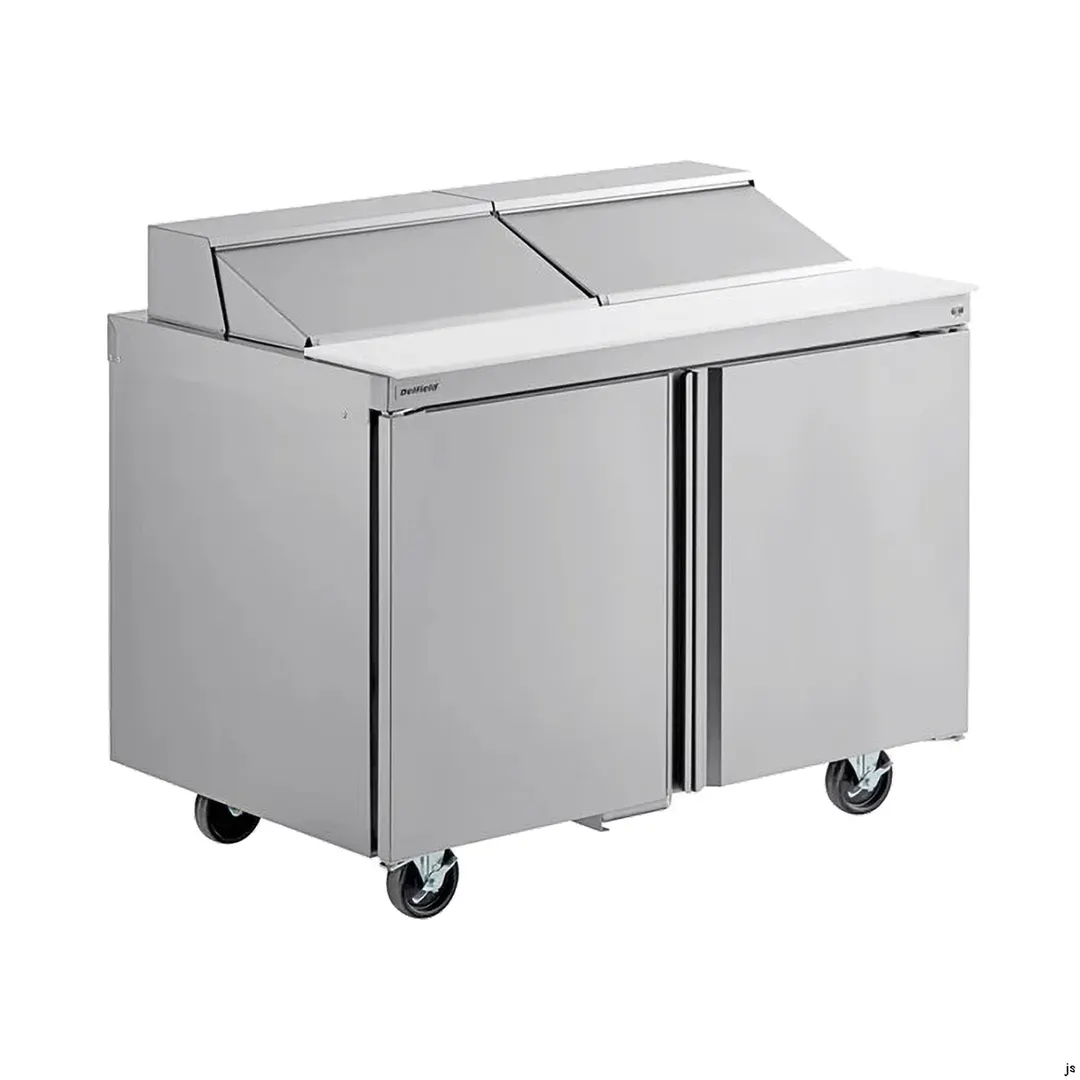

Delfield 4448NP-12M 48" Two Section Mega Top Sandwich Prep Table, 12 Pan

Standard Features

Patented air screen ensures product stays cold without drying it out
100% front breathing, which allows the unit to be pushed against a wall or built into a cabinet or an existing line up
Durable, rugged stainless steel sides, top and front
Features Delfield’s exclusive ABS interior (on sides). ABS is extremely durable - it won’t dent, chip or corrode and is backed by a limited lifetime warranty
Delfield supplies 1/6 size pans and positive placement adapter bars for top opening
Dual level pan brackets allow the pans to be lowered an additional inch in the unit without tools to provide additional pan temperature holding performance
Mega top refrigerators are standard with 8” wide, dishwasher safe polyethylene cutting board mounted on heavy-duty brackets
“D” prefix models feature Delfield’s drawer system. Drawers are backed by a 10-year warranty on the track assembly
Environmentally friendly R290 refrigerant
High density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane keeps energy costs low
Bent in full length handle
Standard on 5” casters for easy cleaning and installation
10’ cord and plug supplied
One epoxy coated wire shelf standard, installed per door section
ACT solid state electronic control

Specifications

Exterior top is one-piece 22-gauge stainless steel with integral 2.12” (5.4cm) square nosing on the front. Top of drawer unit has openings to accept eighteen 1/6 size plastic pans 4” (10cm) deep. Top of door unit has openings to accept eighteen 1/6 size plastic pans 4” or 6” (10cm or 15cm) deep. Adapter bars and 1/6 size pans are supplied by Delfield. Top has one telescoping lid is constructed of 20-gauge stainless steel. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C), with pans recessed 2.5” (6.4cm) at 86°F ambient room temperature, meeting NSF 7 requirements. One 48” x 8” x .5” (121.9cm x 20.3cm x 1.3cm) polyethylene cutting board is mounted on the top at the front edge.
Dual level pan brackets allow the pans to be lowered an additional inch in the unit without tools to provide additional pan temperature holding performance.
Exterior back and bottom are two-piece 24-gauge galvanized steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with integral shelf supports. Base is fully insulated with high-density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.

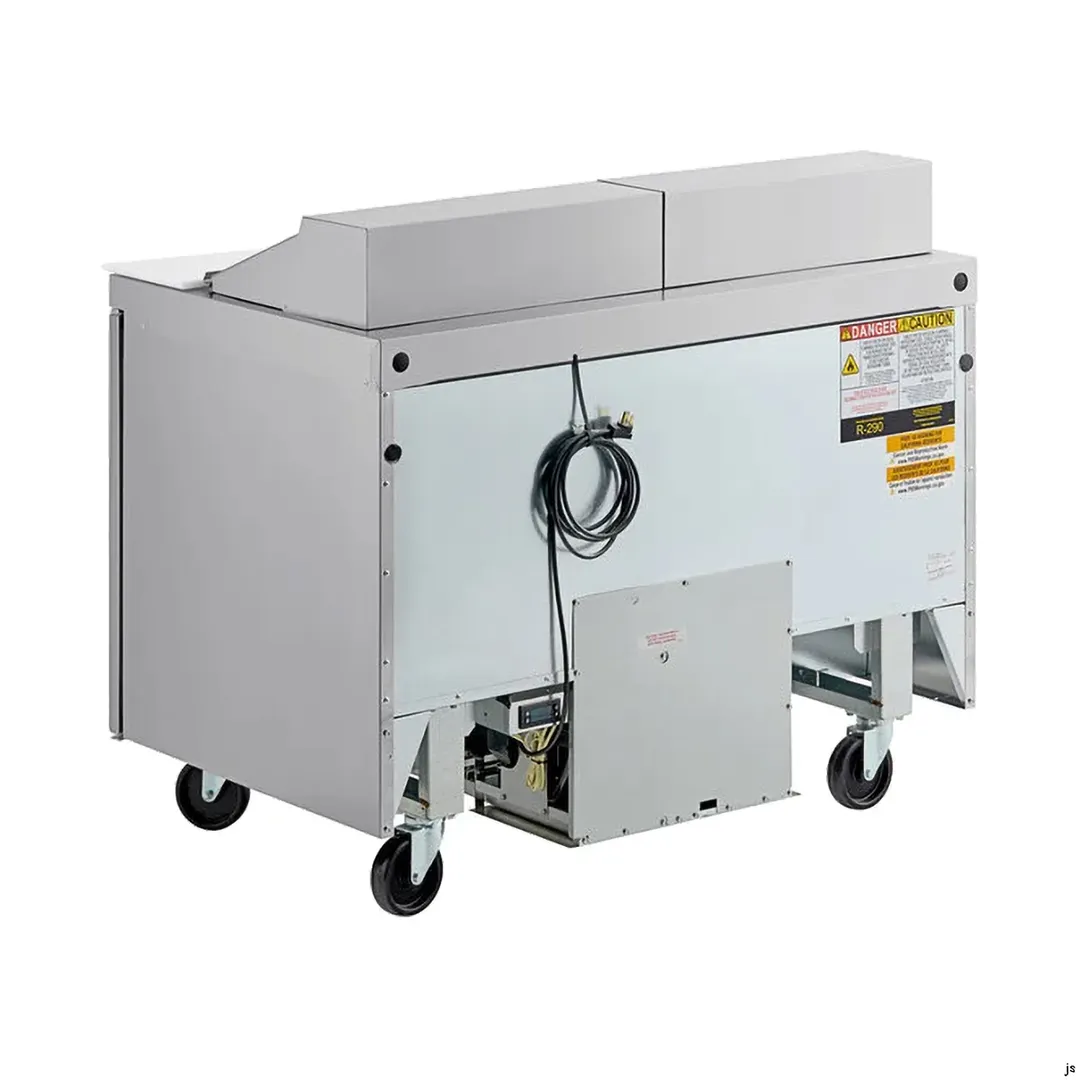

Refrigeration system uses environmentally friendly R290 refrigerant. Condenser coil and hot gas condensate evaporator mounted on rear of the cabinet. Evaporator coil is located on the interior rear wall of the cabinet. Refrigerant flow is controlled by a capillary tube. Cabinet maintains an interior cabinet temperature of 33°F to 40°F (0°C to 4°C).
ACT control: ACT electronic, solid state control, mounted on the exterior rear of the cabinet, allows unit to maintain precise temperatures in heavy duty conditions.
Electrical connections are 115 volt, 60 Hertz, single phase. Unit has a 10’ (3m) long electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5” (13cm) diameter plate casters with front two locking. Equipment clearance above the floor is 2.5” (6cm).
Doors have a 22-gauge stainless steel exterior, with thermoformed ABS plastic interior liner. Cabinet has one adjustable epoxy-coated wire shelf per door opening.
Drawers have 22-gauge stainless steel exterior with thermoformed ABS plastic interior liner. Drawer frames are 12-gauge stainless steel. Drawer slides are 11-gauge stainless steel with Delrin bearings. Each top drawer will hold one 12” x 20” (30.5cm x 50.8cm) pan and three 1/9 size 4”-6” (10.1cm-15.2cm) deep pans. Each bottom drawer holds one 12” x 20” (30.5cm x 50.8cm) pan and three 1/9 size 4” (10.1cm) deep pans. Pans are supplied by others.

From The Manufacturer

Mega Top Sandwich/Salad Top Refrigerator, two-section, 48" W, 16.0 cubic feet, (2) doors, (2) 1/1 GN shelves, stainless steel top with polyethylene cutting board & (12) 1/6 size plastic pans, ABS interior sides, stainless steel front & sides, 5" casters, front-breathing rear-mounted refrigeration system, R290 Hydrocarbon refrigerant, 0.3 hp, cUL, UL, NSF
