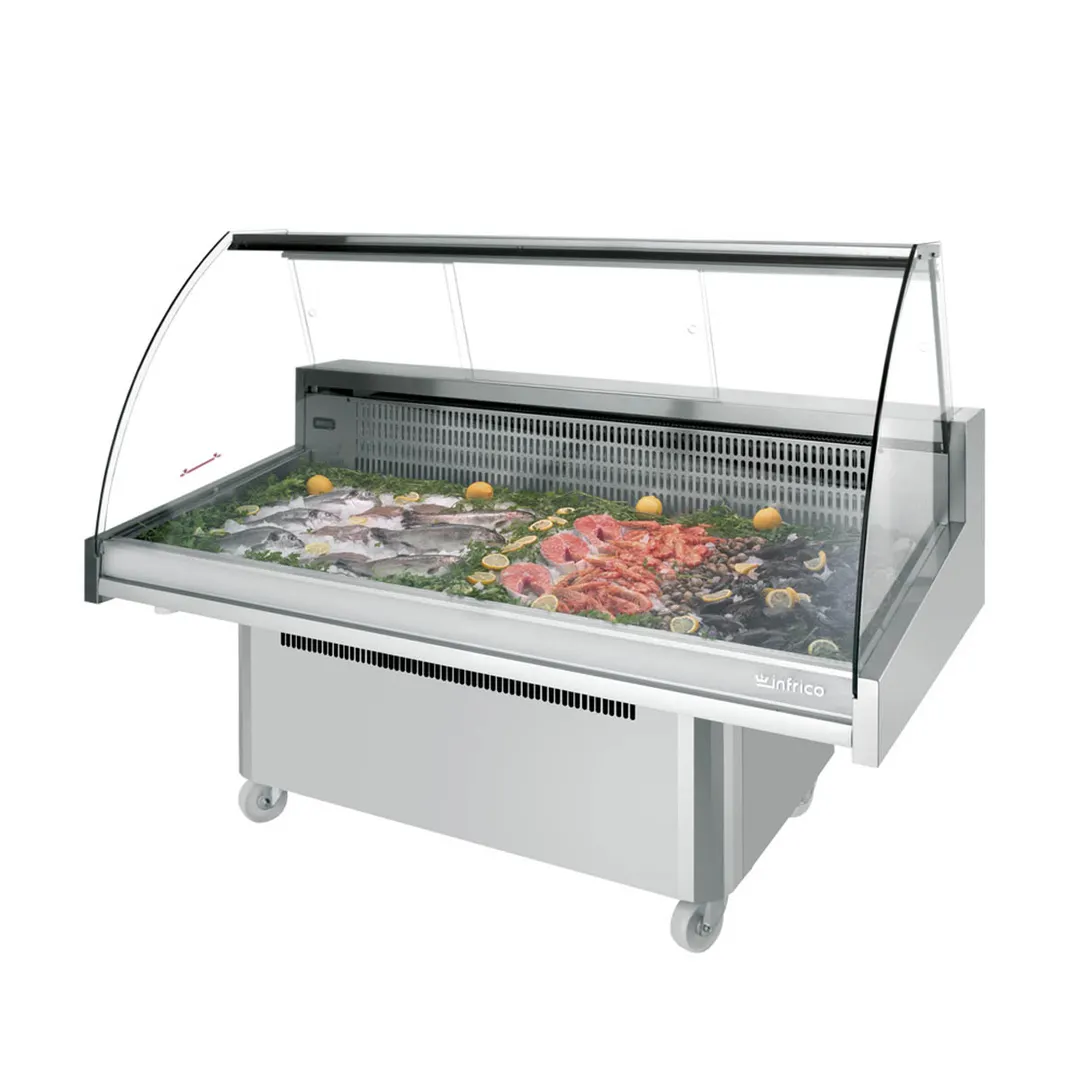

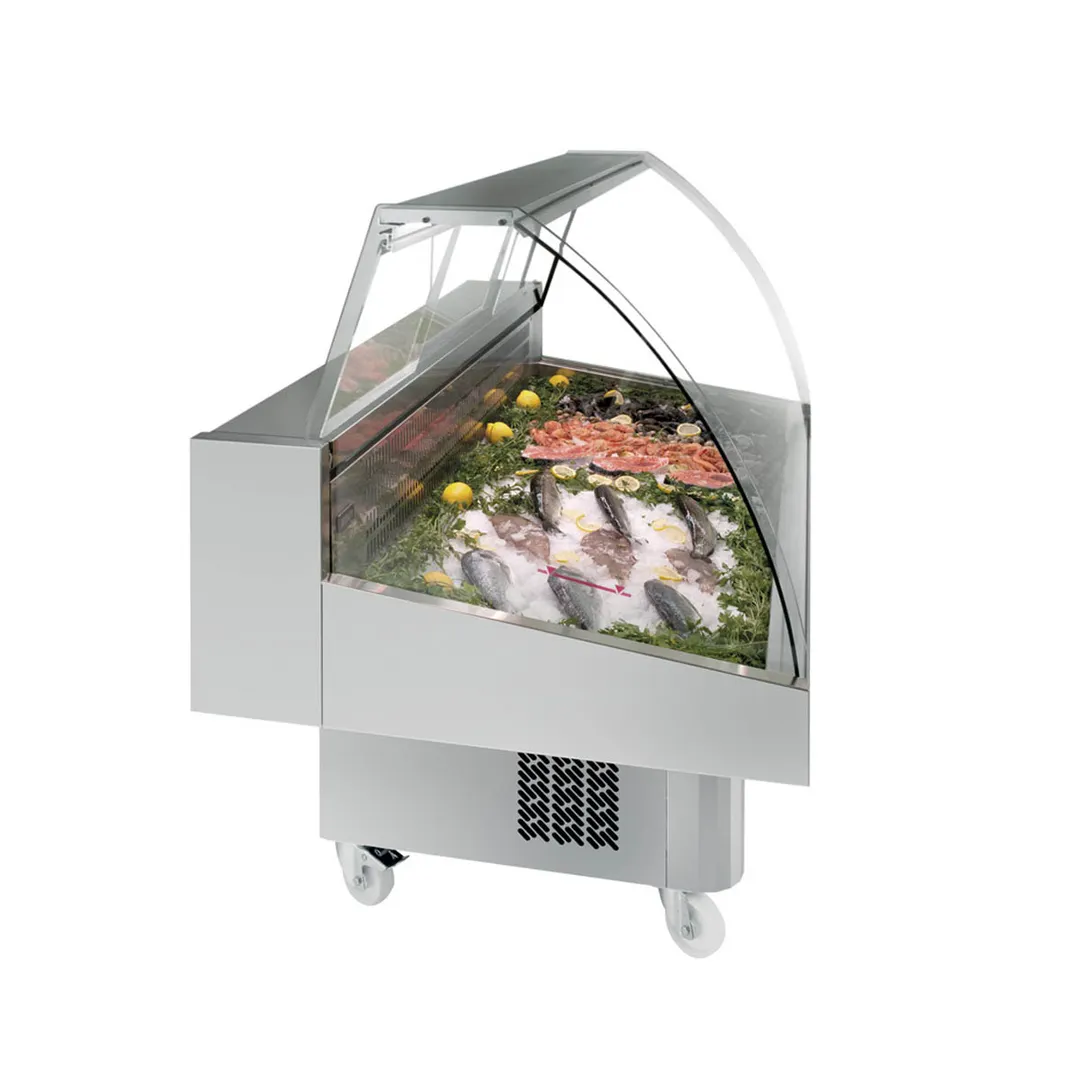

Infrico USA IDC-VML15 Malaga Series Fish Displays Case

Sanitation

Quick ability to take off shelves for interior cleaning. Each cabinet has a drain at the bottom of the unit. When cleaning the unit make sure the drain hose is routed to a floor drain.

Control Systems

Higher precision in managing temperature settings. Greater ability for the adjustment of temperatures ranges as per the end user’s requirement.

100% Tested

All unit condensing are tested 100%, in helium chambers to refrigerant leak detections.

Lighting

LED lighting in the canopy and cabinet sides reduces the energy consumption by 80% and 90% compared to a traditional bulb. Provides a much better light quality.

Certified

Audited and Certified by INTERTEK for compliance with UL 471 and NSF 7. AENOR audited and certified by internationally recognized firm. ISO 9001:2008 (Quality); ISO 14001:2004 (Environmental); OSHAS 18001:2007 (Prevention and Worker Safety)

Infrico USA IDC-VML15 Specifications

Dimensions(inches) : 61-1/2 W X 35-1/2 D X 48-5/8 H
Lateral Thickness (inches) : 1-1/8+1-1/8
Surface Exposure (ft2) :10.65
Ref. : R134a
Ref. Weight (Lbs.) : 1.21
Temp. Range (ºF) (ºC) :30ºF/34ºF
Cond. Unit. H.P : 1/2
Case Amps (115V.) :7.78
Crated Weight (Lbs.) : 401

From The Manufacturer

Fish Display Case, refrigerated, 64-5/8"W, 8.4 cu. ft. capacity, curved tempered front glass with lift up system, digital controller, rear sliding windows, 32 lbs. ice load capacity, static evaporator with gravity coil & cold plate refrigeration system on the bottom, stainless steel worktop on the back, internal drain, 300 series stainless steel interior & exterior, LED lighting, 1/2 HP, cETLus, ETL-Sanitation

Manufacturer	Infrico USA
Model Number	IDC-VML15
Weight	485 lbs
Width	64.63″
Depth	35.44″
Height	52.56″
Display Case Type	single duty
Compressor Location	bottom mounted
Compressor HP	1/2 HP
Glass Style	curved
Refrigeration Type	gravity coil
Exterior Finish	stainless steel
Interior Finish	stainless steel
Pan Qty	1-pan
Voltage	115
Phase	1
Capacity (cu. ft.)	8.4
