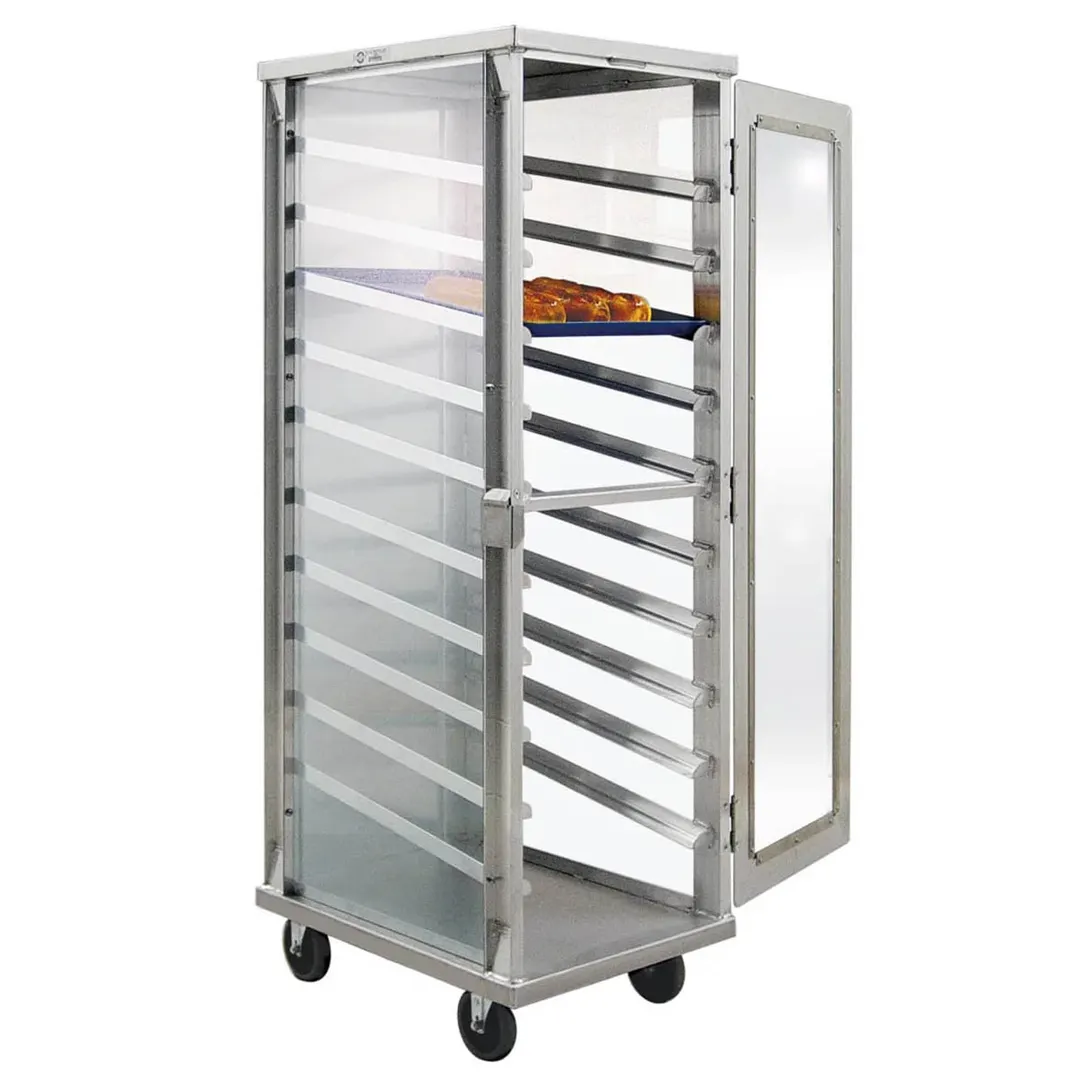

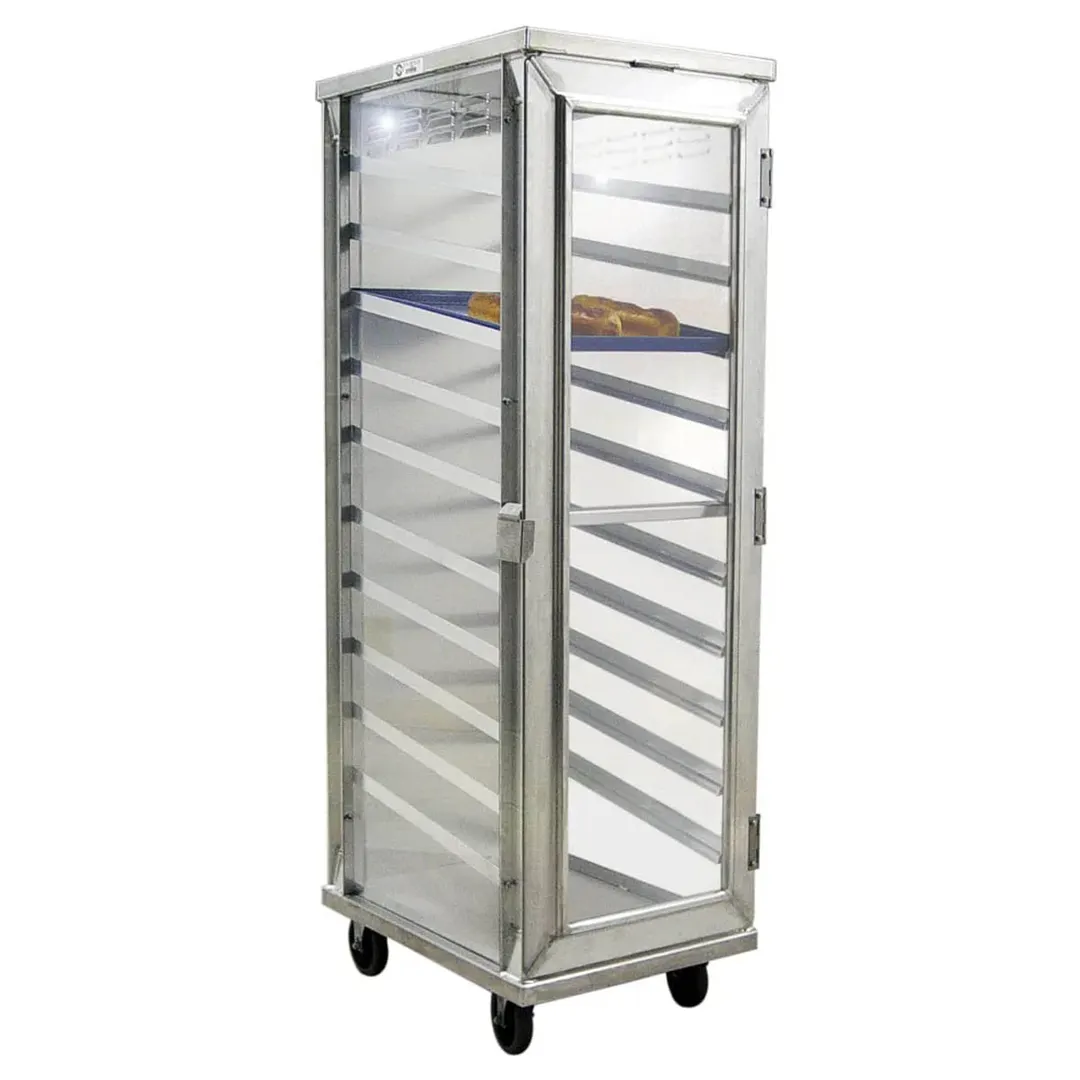

New Age 98063 10 Pan Mobile Bun / Food Pan Enclosed Display Cabinet

Features:

• APPLICATIONS: Product Display.
• CONSTRUCTION: Heavy duty, high tensile, extruded aluminum. Type 6063-T5 alloy.
• UPPER FRAME & TOP: The upper frame is constructed of vertical uprights 1” x 2 1/2” x 1/8” thick extruded aluminum channels with top cross and side bracing of 1 1/4” x 1 1/4” x .070 wall extruded aluminum tubing, all fully welded together. A solid cap of .063 thick aluminum is welded to uprights and cross bracing.
• TRAY SLIDES: Slides are 1 1/4” x 1 5/8” x .100” thick extruded aluminum angle with 1 1/4” lip on front end.
• REAR PANEL: Rear panels is .080 thick aluminum panels with corrugation on each side for strength and enhanced air circulation. Panel is welded to the top, bottom, and rear vertical uprights.
• DOOR: Custom extruded aluminum frame with polycarbonate insert. The door is supported by three stainless steel hinges designed to provide 270° door swing. A positive gravity catch is provided to retain door in a closed position.
• SIDES: Covered with 1/8“ thick polycarbonate that bolts to aluminum uprights.
• TIE ROD: A 1” x 1” x .070 wall extruded aluminum tube tie rod is welded to the front vertical upright for extra rigidity.
• BOTTOM FRAME: Bottom frame is constructed of 1/8” thick aluminum sheet with four sides bent down 1 5/8”, all corners welded smoothly. Tubular framework welded inside the 1 3/8” aluminum sheet for extra rigidity. Caster plates (2 3/4” x 4“ x 3/8” thick pre-tapped) are welded to bottom of frame.
• CASTERS: Four platform type 5” casters, full swivel design with sealed ball bearing axle and non-marking wheel.
