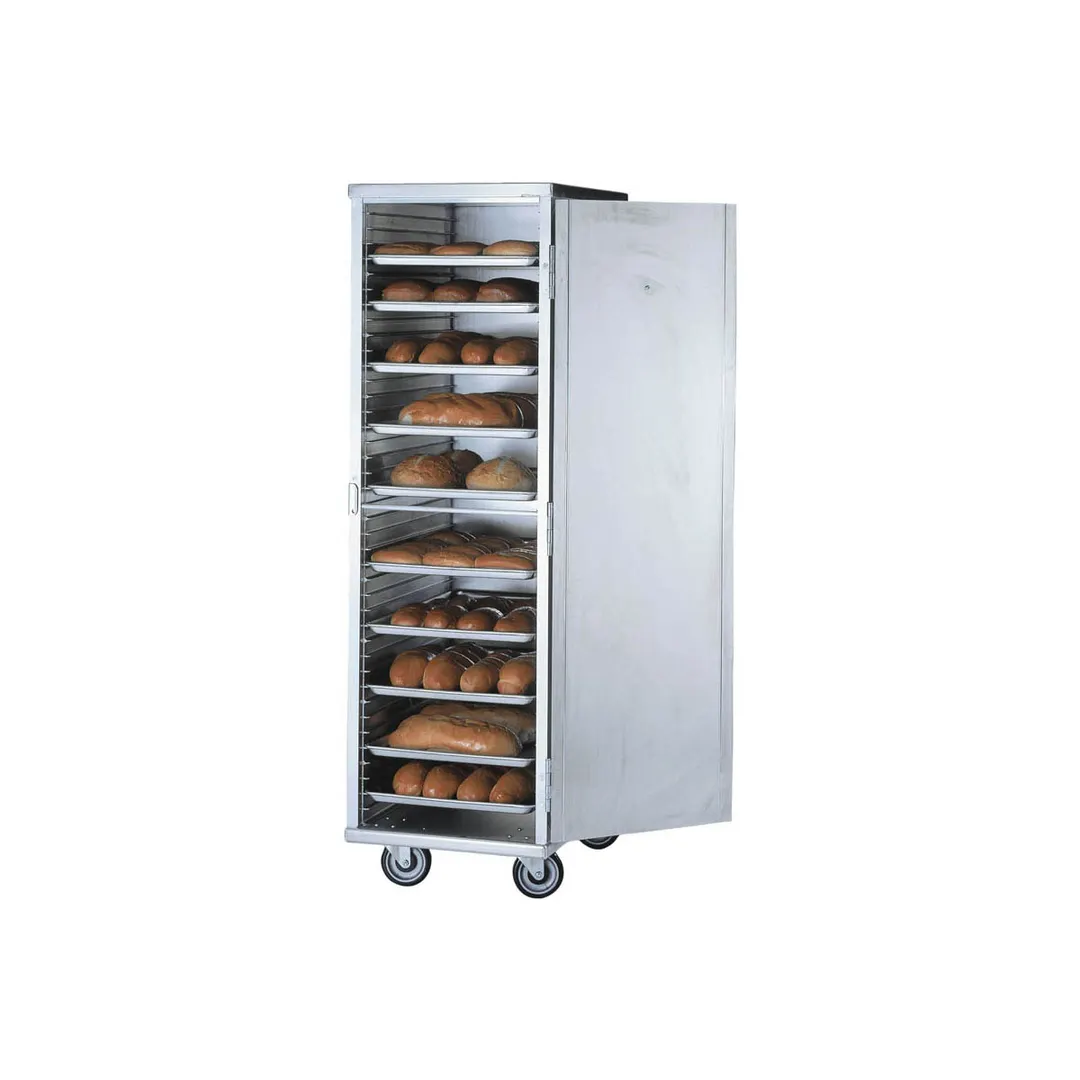

Piper Products 540 40 Pan Bun / Food Pan Enclosed Storage Cabinet w/ 1-1/2" Bottom Load Slides

Why use Piper Products Econoline Cabinets?

When work loads increase and you need more cabinets, Econoline Cabinets from Piper Products may be just the thing. Built to demanding Piper specifications, these cabinets provide most of the same great features found on our heavy-duty cabinets. Though constructed without some of the cosmetic enhancements and touches of our standard cabinets, the Econoline series still provides the service and reliability you’ve come to expect from all Piper products. They are offered in three of our most popular sizes to work flawlessly along side your other equipment.

Piper Products 540 Sturdy Tray Supports And Bars

• Base is a solid bottom constructed of .080” aluminum, rolled edge acts as built in bumper
• Two 14-gauge aluminized steel reinforcing channels attach the casters and support the bottom panel
• Frame consist of four extruded channels 1-1/2” x 5/8” x.094” aluminum. Corners have .190 channel supports for reinforcement
• Single pan top constructed of one .080” thick aluminum panel, fully welded corners
• Glides are channels spaced on 1-1/2” centers with 5/8” ledge, .090 thick extruded aluminum continuously welded to the frame
• Door panel is .125” PVC coated aluminum attached to cabinet with bakery hinges, 270 degree door swing with card clip
• Back panel is .080” aluminum fully welded
• 1/2” extruded aluminum tie bar keeps cabinet square
• 16-gauge stainless steel positive gravity latch is provided to keep door closed during transport
• Stainless steel side door latch holds door open
• Card clip, easy identification of cabinet content when door is closed

Piper Products 540 Heavy Duty Casters

• 5” diameter x 1/1/4” wide swivel sealed wheels, two with brakes
• 350 lb. capacity
• Maximum resistance to chemicals, acids, bases, alcohol,water and steam
• Maximum low temperature flexibility or superior performance even in freezing temperatures
