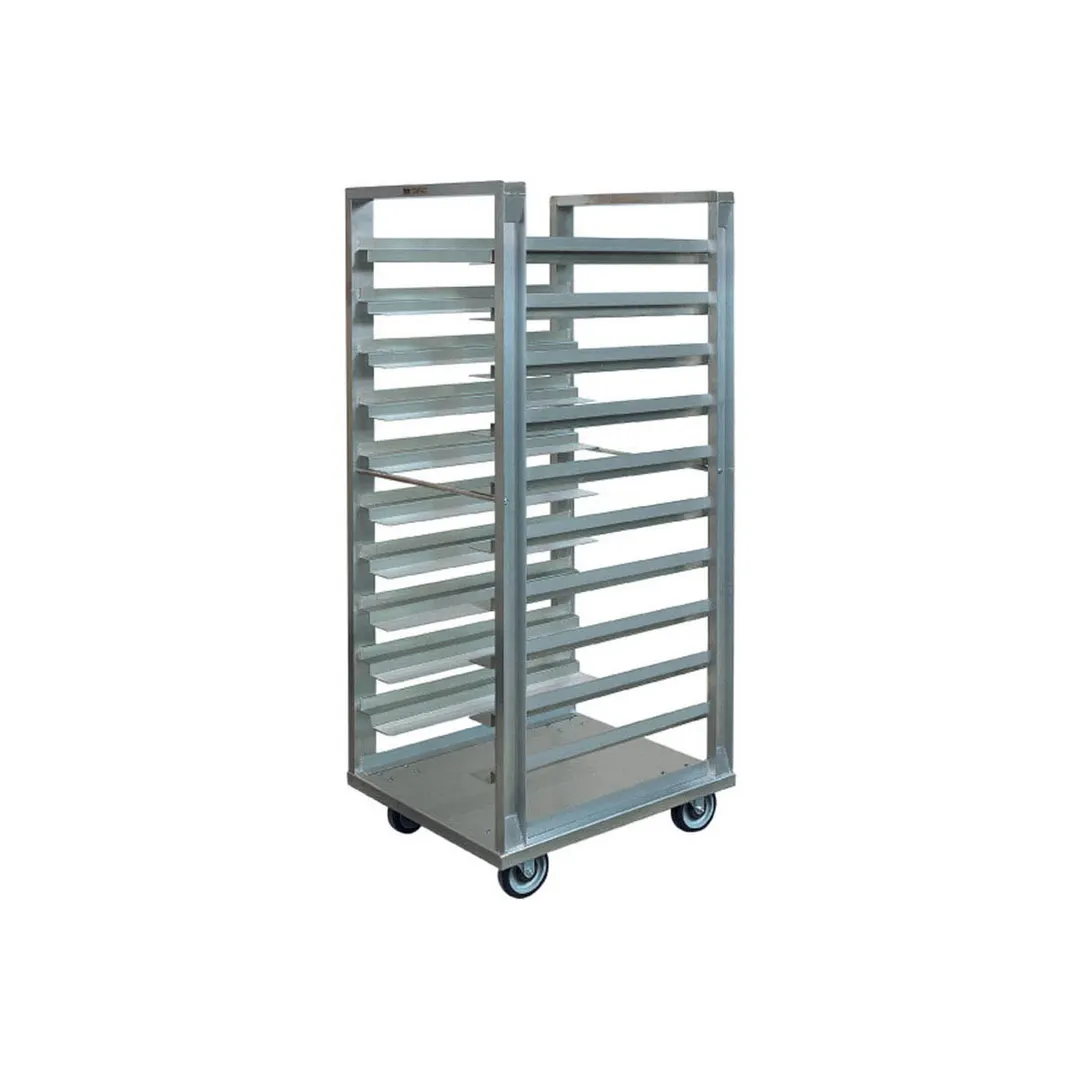

Piper Products 612-U 12 Pan Sheet Pan / Steam Table Universal Angle Rack w/ 5" Bottom Load Slides

Why use Piper Products Angle Rack ?

Piper Universal Angle Racks are designed for in-house foodservice facilities, bakeries, restaurants and highactivity operations handling trayed product. Roll-in sizes are available for walk-in refrigerators or freezers. Piper's fully welded frame and 1/2” aluminum tie bar avoids distortion and gives greater side-to-side strength.

Piper Products 612-U Heavy-Duty Casters And Pan Glides

• Plate casters for added rigidity and stability
• 5" x 1-1/4" sealed wheels
• Delrin bearing, each with 350 lbs. capacity
• Maximum resistance to chemicals, acids, bases, alcohol, water and steam
• Maximum low temperature flexibility for superior performance, even in freezing temperatures
• Universal ledge angles set at 3” or 5” spacing
• Holds sheet pans or steam table pans
• Weld along entire edge of glides

Piper Products 612-U The Bars And Continuous Weld

• 1/2” extruded aluminum tie bar keeps rack square
• Adds rigidity and stability to rack
• Two tie bars per unit
• Weld along entire edge of glides
• No gaps to promote bacterial growth
• Solid Bottom

Piper Products 612-U Solid Bottom And Superior Corner Supports

• Rolled edge acts as bumper
• 12 gauge reinforcing caster channel eliminates twisting
• Fully welded corners
• Greatly enhances rack strength
• .125" thick aluminum
• .190” thick gussets provide superior strength
• Extruded 3-sided channel support
• All sides fully welded
