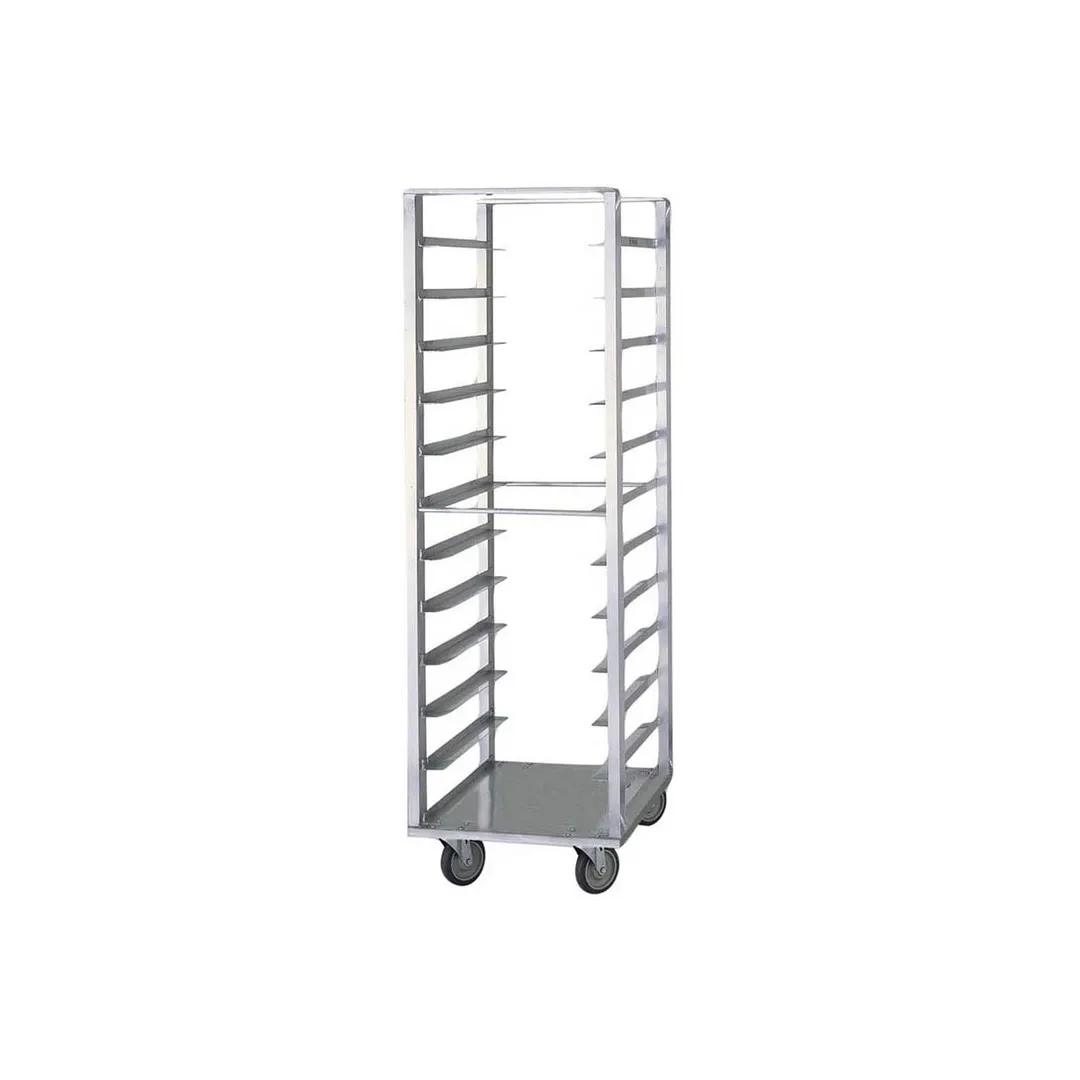

Piper Products 630 30 Pan Aluminum Bun / Sheet Pan Angle Rack with 2" Bottom Load Slides

Why use Piper Products Angle Rack ?

Piper Angle Racks are designed for in-house foodservice facilities, bakeries, restaurants and high-activity operations handling trayed product. Piper's fully welded frame and 1/2” aluminum tie bar avoids distortion and gives greater side-to-side strength. Add that to Piper's unique Piper-engineered base and casters and you have the finest Angle Rack in the industry.

Piper Products 630 Heavy-Duty Casters

• Plate casters for added rigidity and stability
• 5" x 1-1/4" sealed wheels
• Delrin bearing, each with 350 lbs. capacity
• Maximum resistance to chemicals, acids, bases, alcohol, water and steam
• Maximum low temperature flexibility for superior performance, even in freezing temperatures

Piper Products 630 The Bars And Continuous Weld

• 1/2” extruded aluminum tie bar keeps rack square
• Adds rigidity and stability to rack
• Two tie bars per unit
• Weld along entire edge of glides
• No gaps to promote bacterial growth
• Solid Bottom Standard

Piper Products 630 Solid Bottom And Superior Corner Supports

• Rolled edge acts as bumper
• 12 gauge reinforcing caster channel eliminates twisting
• Fully welded corners
• Greatly enhances rack strength
• .090" thick aluminum
• .190” thick gussets provide superior strength
• Extruded 3-sided channel support
• All sides fully welded
