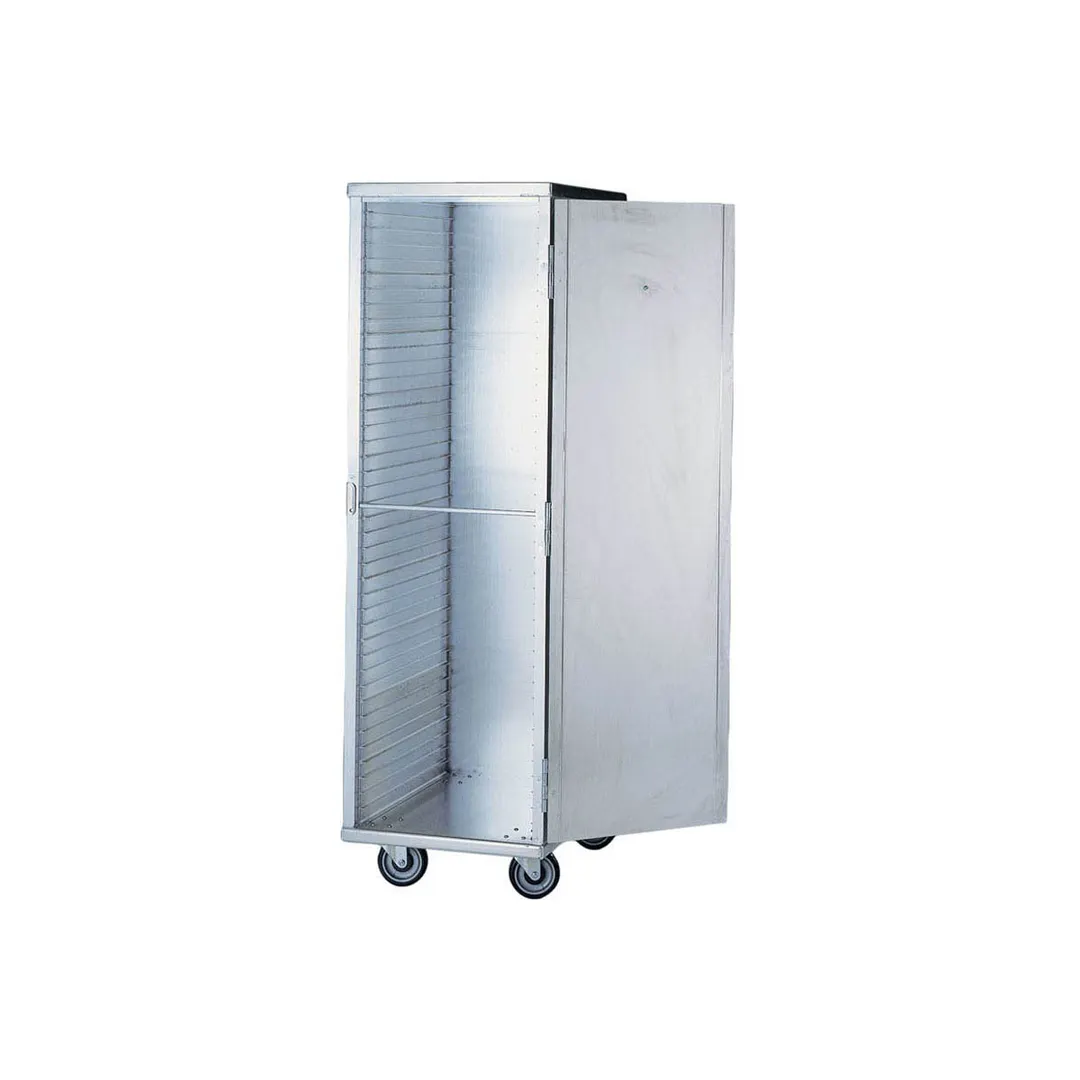

Piper Products 926 Transport Cabinets Aluminum For Transport

Why use Piper Products Cabinets ?

Piper Transport Cabinets are built extra-strong to withstand the rigors of transporting bakery and food service products. A welded bottom ensures rigidity as well as permits forklift loading and unloading. Heavyduty plate casters promote easy mobility, and with many sizes to choose from, storage space will never be a problem.

Piper Products 926 Heavy-Duty Casters

5” diameter x 1/1/4” wide swivel sealed wheels, two with brakes
350 lb. capacity
Maximum resistance to chemicals, acids, bases, alcohol, water and steam
Maximum low temperature flexibility for superior performance, even in freezing temperatures

Piper Products 926 Standart Features

Base is a solid bottom constructed of .125” aluminum, rolled edge base acts as a built-in bumper
Two 14-gauge aluminized steel reinforcing channels attach the casters and support the bottom panel
Frame consist of four extruded channels 1-1/2” x 5/8” x .094” aluminum. Corners have .190 channel supports for reinforcement
Double pan top constructed of two .080” thick aluminum panels, fully welded corners
Glides are channels spaced on 1-1/2” centers with 5/8” ledge, .090 thick extruded aluminum continuously welded to the frame
Door panel is .125” PVC coated aluminum attached to cabinet with bakery hinges, 270 degree door swing
Back panel is .080” aluminum fully welded
1/2” extruded aluminum tie bar keeps cabinet square
16-gauge stainless steel positive gravity latch is provided to keep door closed during transport
Stainless steel side door latch holds door open
One inch insulation surround the cabinet (Insulated models only)
Card clip, easy indentification of cabinet content when door is closed

From The Manufacturer

Transport Cabinet, standard, holds (26) 18" x 26" trays, 1-1/2" slide spacing, 5" heavy plated casters, aluminum, NSF

Manufacturer	Piper Products
Model Number	926
Weight	109 lbs
Width	27.38″
Depth	21″
Height	46.75″
Rack Type	food pan carriers
Style	enclosed
Rack Style	bun pan
Door Style	solid door(s)
Insulation	non-insulated
Pan Size	18" x 26"
Construction	aluminum
Slides	fixed slides
Slide Capacity	26 - 30 pair
Centers	1-1/2"
Cabinet Design	standard
Certifications	NSF
Pan Capacity	26

	Piper Products 926 26 Pan Aluminum Bun / Food Pan Enclosed Cabinet w/ 1-1/2" Bottom Load Slides	Carter-Hoffmann E8623 23 Pan Non-Insulated Mobile Bun Pan Enclosed Cabinet w/ Hinged Doors Free Shipping	FWE ETC-1826-15-24-AL 24 Pan Aluminum Bun / Food Pan Enclosed Transport Cabinet w/ 1-1/2" Bottom Load Slides	Winholt EC1824-C 24 Pan Reinforced Aluminum End Load Enclosed Mobile Transport Cabinet	Piper Products 922 22 Pan Aluminum Bun / Food Pan Enclosed Cabinet w/ 1-1/2" Bottom Load Slides	Cres Cor 1001822D 22 Pan End Load Mobile Enclosed Non-Insulated Bun / Sheet Pan Rack - Aluminum	Piper Products 941 41 Pan Aluminum Bun / Food Pan Enclosed Transport Cabinet w/ 1-1/2" Bottom Load Slides	Piper Products 936 36 Pan Aluminum Bun / Food Pan Enclosed Cabinet w/ 1-1/2" Bottom Load Slides	Piper Products 933 33 Pan Aluminum Bun / Food Pan Enclosed Cabinet w/ 1-1/2" Bottom Load Slides
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Pan Capacity	Pan Capacity 26	Pan Capacity 23	Pan Capacity 24	Pan Capacity 24	Pan Capacity 22	Pan Capacity 22	Pan Capacity 41	Pan Capacity 36	Pan Capacity 33
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)27.38	WIDTH (SIDE - SIDE)23.75	WIDTH (SIDE - SIDE)21	WIDTH (SIDE - SIDE)21	WIDTH (SIDE - SIDE)27.38	WIDTH (SIDE - SIDE)20.88	WIDTH (SIDE - SIDE)27.38	WIDTH (SIDE - SIDE)27.38	WIDTH (SIDE - SIDE)27.38
Manufacturer	ManufacturerPiper Products	ManufacturerCarter-Hoffmann	ManufacturerFWE	ManufacturerWinholt	ManufacturerPiper Products	ManufacturerCres Cor	ManufacturerPiper Products	ManufacturerPiper Products	ManufacturerPiper Products
Pan Size	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"	Pan Size18" x 26"
Height	Height43" - 48"	Height43" - 48"	Height43" - 48"	Height43" - 48"	Height37" - 42"	Height37" - 42"	Height67" - 72"	Height61" - 66"	Height55" - 60"
Construction	Constructionaluminum	Constructionaluminum	Constructionaluminum	Constructionaluminum	Constructionaluminum	Constructionaluminum	Constructionaluminum	Constructionaluminum	Constructionaluminum
Slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides	Slidesfixed slides
Insulation	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated	Insulationnon-insulated
Slide Capacity	Slide Capacity26 - 30 pair	Slide Capacity21 - 25 pair	Slide Capacity21 - 25 pair	Slide Capacity21 - 25 pair	Slide Capacity21 - 25 pair	Slide Capacity21 - 25 pair	Slide Capacity41 pair (and up)	Slide Capacity36 - 40 pair	Slide Capacity31 - 35 pair
Door Style	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)	Door Stylesolid door(s)
Centers	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"	Centers1-1/2"
Rack Type	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers	Rack Typefood pan carriers
Overall Height	Overall Height43" - 48"	Overall Height43" - 48"	Overall Height43" - 48"	Overall Height43" - 48"	Overall Height37" - 42"	Overall Height37" - 42"	Overall Height67" - 72"	Overall Height61" - 66"	Overall Height55" - 60"
Rack Style	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan	Rack Stylebun pan
Style	Styleenclosed	Styleenclosed	Styleenclosed	Styledouble	Styleenclosed	Styleenclosed	Styleenclosed	Styleenclosed	Styleenclosed
Pan capacity	Pan capacity21 - 30 pans	Pan capacity21 - 30 pans	Pan capacity21 - 30 pans	Pan capacity21 - 30 pans	Pan capacity21 - 30 pans	Pan capacity21 - 30 pans	Pan capacity41 - 50 pans	Pan capacity31 - 40 pans	Pan capacity31 - 40 pans
18" x 26" Sheet Pan Capacity	18" x 26" Sheet Pan Capacity20 - 30 pan	18" x 26" Sheet Pan Capacity20 - 30 pan	18" x 26" Sheet Pan Capacity20 - 30 pan	18" x 26" Sheet Pan Capacity20 - 30 pan	18" x 26" Sheet Pan Capacity20 - 30 pan	18" x 26" Sheet Pan Capacity20 - 30 pan	18" x 26" Sheet Pan Capacity31 - 60 pan	18" x 26" Sheet Pan Capacity31 - 60 pan	18" x 26" Sheet Pan Capacity31 - 60 pan
Certifications	CertificationsNSF	Certifications-	Certifications-	Certifications-	CertificationsNSF	CertificationsNSF	CertificationsNSF	CertificationsNSF	CertificationsNSF
Cabinet Design	Cabinet Designstandard	Cabinet Design-	Cabinet Design-	Cabinet Design-	Cabinet Design-	Cabinet Design-	Cabinet Designstandard	Cabinet Designstandard	Cabinet Designstandard

Manufacturer	Piper Products
Model Number	926
Weight	109 lbs
Width	27.38″
Depth	21″
Height	46.75″
Rack Type	food pan carriers
Style	enclosed
Rack Style	bun pan
Door Style	solid door(s)
Insulation	non-insulated
Pan Size	18" x 26"
Construction	aluminum
Slides	fixed slides
Slide Capacity	26 - 30 pair
Centers	1-1/2"
Cabinet Design	standard
Certifications	NSF
Pan Capacity	26
