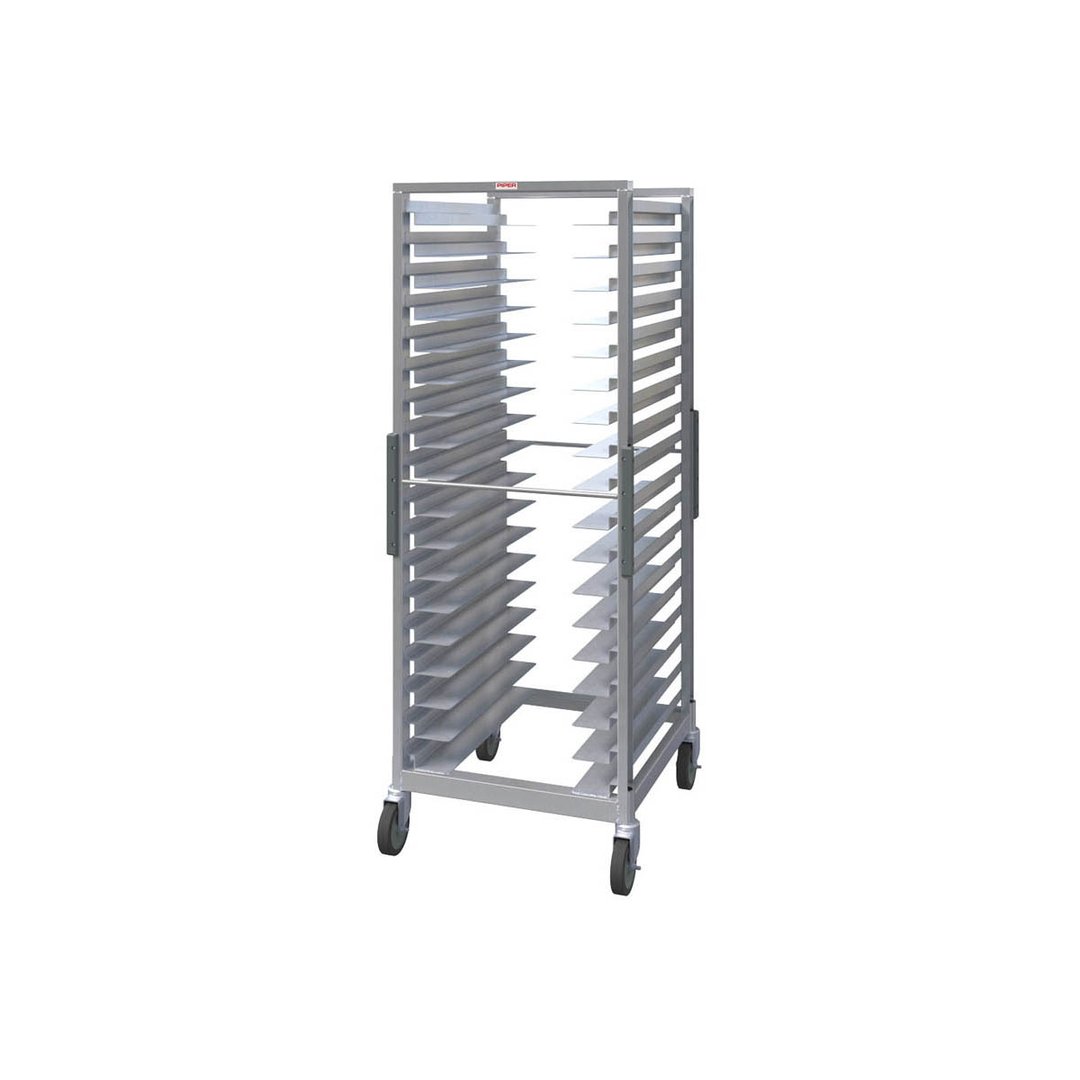

Piper Products RIUW64-17, 17 Tray Full Height Aluminum Universal Wide Angle Guide Rack

Why use Piper Products Racks ?

Pipers’s Universal Wide Angle Guide Rack Series UW, is one of the most versatile types available for the storage and transport of various size pans. The all−welded, exclusively designed guides in this Series require no adjustment or removal in order to handle any depth food pans. Series UW aluminum universal, wide angle guide racks to accommodate 18" x 26" sheet pans, 20" x 26" baking pans and 12" x 20" food pans.

Piper Products RIUW64-17 Specification

• Frame: The vertical uprights and the top and bottom cross bracing are 2" x 1" x 1/8" thick extruded aluminum channels, welded to form a rigid frame. Each vertical upright is fabricated with a series of obtuse angle slots, 1-5/8" on centers, to receive and contain the guides. Caster support channels are 1-7/8" x 4" x 1/8" thick extruded aluminum, fully welded to the vertical uprights and bottom cross supports.
• Guides:The two level guides are 1/2" x 1" x 7/8" x 3-1/8" x .105" thick extruded aluminum, with all corners chamfered and deburred. They are easily removable and are securely held in position by a series of obtuse angle slots, 1-5/8” on center, which are punched in one wall of each channel upright.
• Rod:All models have 1/2" diameter aluminum tie rods welded to the front and rear vertical uprights for extra rigidity
• Casters:The units are mounted on four 5" diameter, heavy duty, swivel casters.
