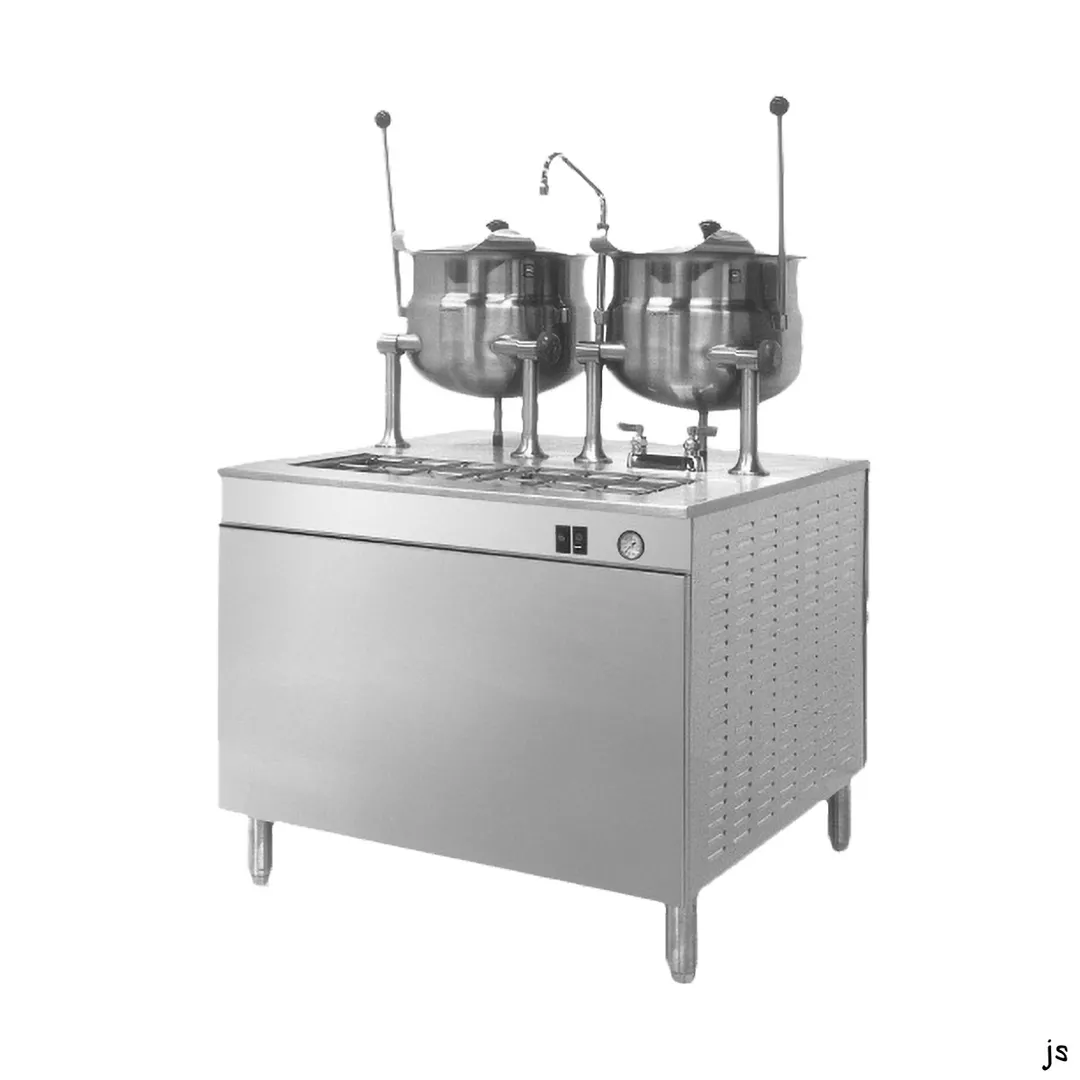

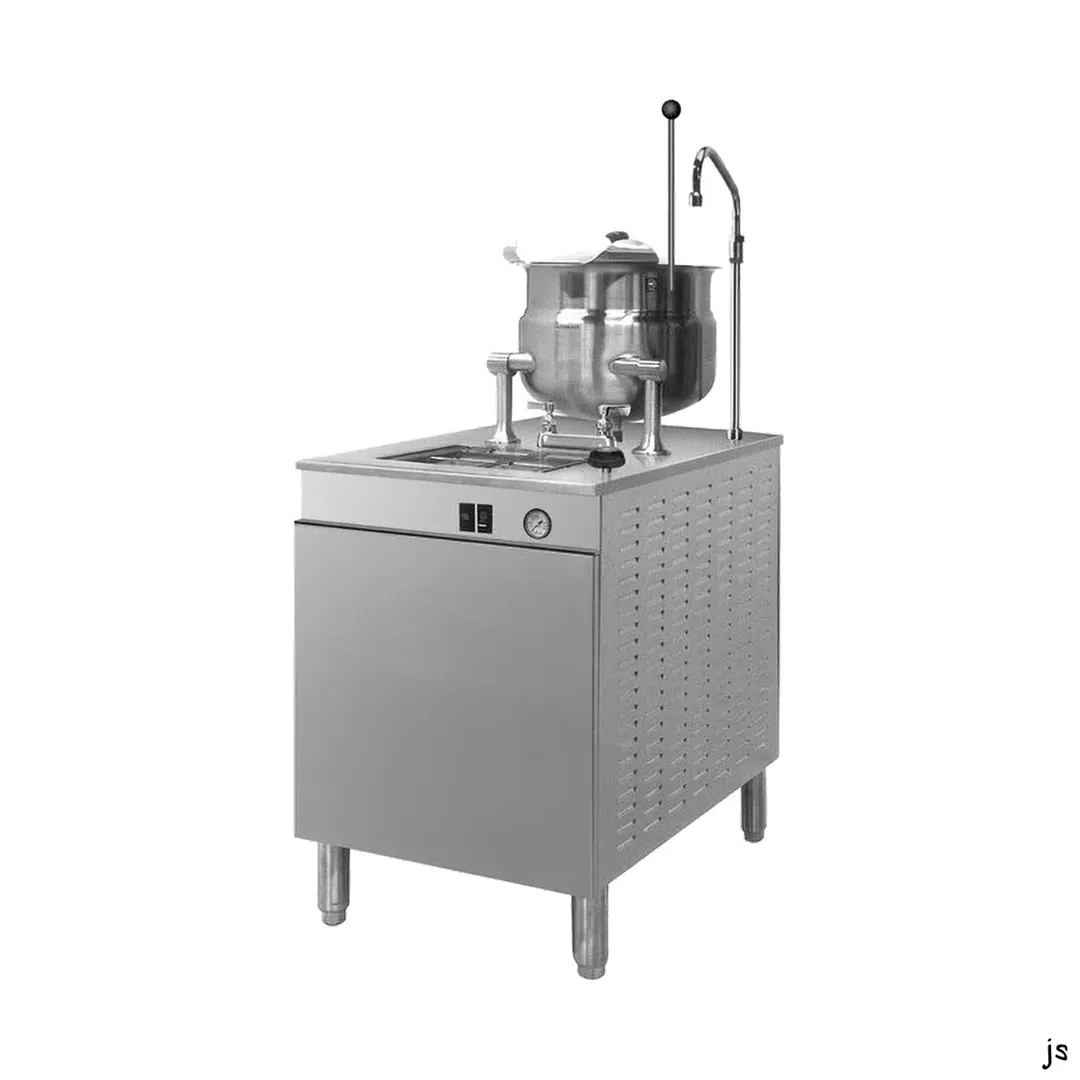

Cleveland 24DMK6 6 Gallon Floor Tilting 2/3 Steam Jacketed Direct Steam Kettle w/ Modular Base

Cleveland 24DMK6 Standard Features

• Factory assembled Kettle/Modular Base combination with one or two, 6 gallon kettle(s) for direct connection to steam from another source
• Steam Control Kit: includes needle type Steam Control Valve(s), Steam Trap, Condensate Strainer, Check Valve, nipples and fittings, factory assembled and mounted on kettle(s)
• Type 430 Stainless Steel exterior enclosure, kettle(s) and table top (with drain Trough which has 1.50" diameter male drain); #4 exterior finish
• 6 gallon kettle(s) are 2/3 Steam Jacketed and include Lift-Off Cover(s)
• Hot and Cold Water Faucet with Swing Spout
• Kettle(s) have 50 psi Steam Jacket Rating, 50 psi chrome plated Safety Valve(s) and Manual Tilting, balanced design
• Tilt Handles can be mounted on either side of kettle(s)
• Adjustable Flanged Feet (FF-A)
• Stainless Steel Base Frame (FSS)

Cleveland 24DMK6 Optional and Accessories

• Type 316 Stainless Steel Kettle interior(s) for high acid food products (316)
• Food Strainers (FS)
• Pressure Reducing Valve for incoming supply over 50 psi (PRV)

Cleveland 24DMK6 Specification

Shall be CLEVELAND, Direct Steam, Modular Cabinet Base with one or two, 6 gallon kettle(s), Model _____ DM-K _____ Type 430 Stainless Steel exterior enclosure, Table Top and 4 Level adjustable Feet. 2/3 Steam Jacketed, type 304 Stainless Steel kettle(s) with 50 psi Steam Jacket Rating. Needle type Steam Control Valve on each kettle. To operate connect directly to a steam source supplying from 5 to 10 psi steam. Steam Condensate Trap and Strainer, factory assembled and installed. Includes Hot and Cold Water Faucet with Spring Spout and Lift-Off Kettle Cover(s).
