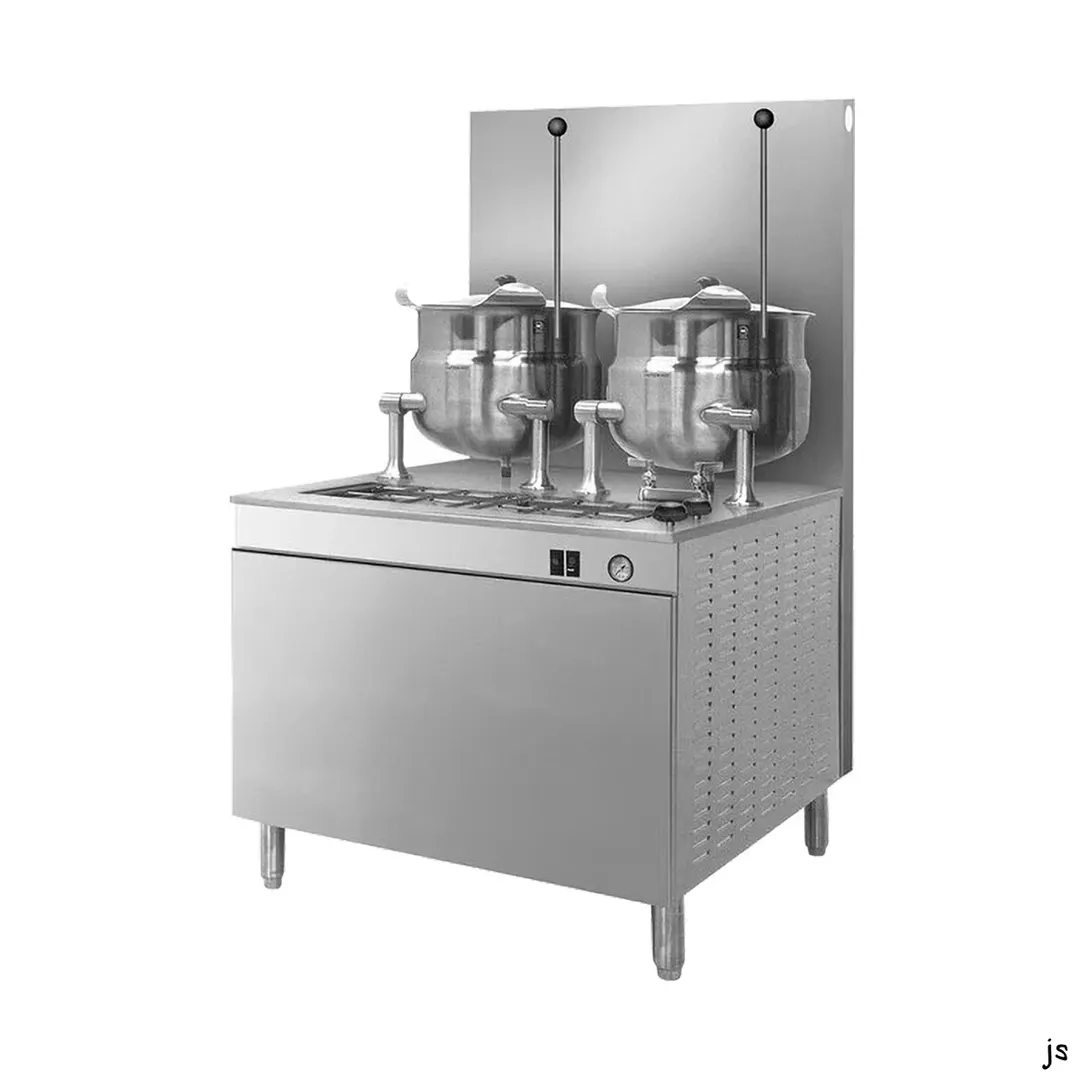

Cleveland 36GMK1010300 20 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, 300.000 BTU

Cleveland 36GMK1010300 Standard Features

• Factory assembled Kettle/Steam Generator NickleGard Base combination with two 10 gallon kettles with 300M BTU GasFired Steam Generator
• Type 430 Stainless Steel exterior enclosure, and table top (with Drain Trough which has 1.50" diameter male drain), #4 exterior finish
• Kettle(s) have 50 psi Steam Jacket Rating, 50 psi chrome plated Safety Valve(s) and Manual Tilting, balanced design
• Steam Generator empties under pressure (blowdown) automatically upon each Shut-Down. Automatic Water Refill on Start-Up
• Solid State steam generator Water Level Controls
• Low Water Safety Cut-Off
• Pressure Limit Controls with 15 psi Safety Valve
• Type 304 Stainless kettle(s), #4 exterior finish
• Separate "Start/Reset" Illuminated Switch Controls, plus Pressure Gauge
• Solid State Electronic Spark Ignition for energy savings
• Major components serviceable from the front of the unit
• 10 gallon kettle(s) are 2/3 Steam Jacketed and include Lift off Cover(s)
• Hot and Cold Water Faucet with Swing Spout
• Tilt Handles can be mounted on either side
• Standard voltage for controls is 115 volt, 60 Hz, single phase
• 6" Stainless Steel Legs with Adjustable Flanged Feet (FF-A)
• Stainless Steel Base Frame (FSS)

Cleveland 36GMK1010300 Specification

Shall be CLEVELAND, Modular Cabinet Base with two 10 gallon kettles, Model 36-GMK1010 -____ , 200M or 300M BTU Nickelguard™ Gas-Fired Steam Generator, type 430 Stainless Steel exterior enclosure, Table Top, Back Splash and 4 level adjustable feet. 2/3 Steam Jacketed type 304 Stainless Steel kettles with 50 psi Steam Jacket Rating. Console mounted Controls, Pressure Gauge and Illuminated "Start/Reset" Control Switches. Solid State Water Level Steam Generator Controls and Electronic Spark Ignition. Steam Generator drains under pressure (blowdown) after each Shut-Down with Automatic Water Refill on Start-Up. 15 psi Safety Valve
