Cleveland SD Series
STANDARD FEATURES:
- Shall be CLEVELAND, Kettle(s) with Stand, Model SD - _____ - K _____ , full width Drain Trough with1 1/2" male Drain Connection, Sliding Catch Pan and 2/3 Steam Jacketed Kettle(s) _____ ea. _____ Gallon (and _____ ea. _____ Gallon) Steam Jacket Ratings to be 50 psi; Kettle and Legs to be Type 304 Stainless Steel. To operate, connect directly to a steam source supplying from 5 to 45 psi steam. Steam Condensate Trap and Strainer, Factory Assembled and Installed; includes: Hot and Cold Water Faucet with Swing Spout and LiftOff Kettle Covers.
- Type 304 Stainlesss Steel construction, with #4 finish on Kettle
- Factory Assembled Kettle/Stand combinations with available kettle capacities to suit most needs
- Steam Control Kit: includes: Needle Type Steam Control Valve, Steam Trap, Condensate Strainer, Check Valve, Nipples and Fittings, factory assembled and mounted on kettles(s)
- Kettles are Mounted on Stainless Steel Stand of Modular Cabinetized Design
- Hot and Cold Water Faucet with Swing Spout
- Table Top has Full Width Drain Trough equipped with standing 1.50" diameter male Drain Connection
- Sliding drain Catch Pan with Splash Shield, easy to position for use
- Kettles are 2/3 Steam Jacketed and include Lift-Off Covers
- 50 psi Steam Jacket Rating
- 50 psi Chrome Plated Saftey Valve
- Manual Tilting, Balanced Design
- Typical approvals include NSF and ASME
From The Manufacturer

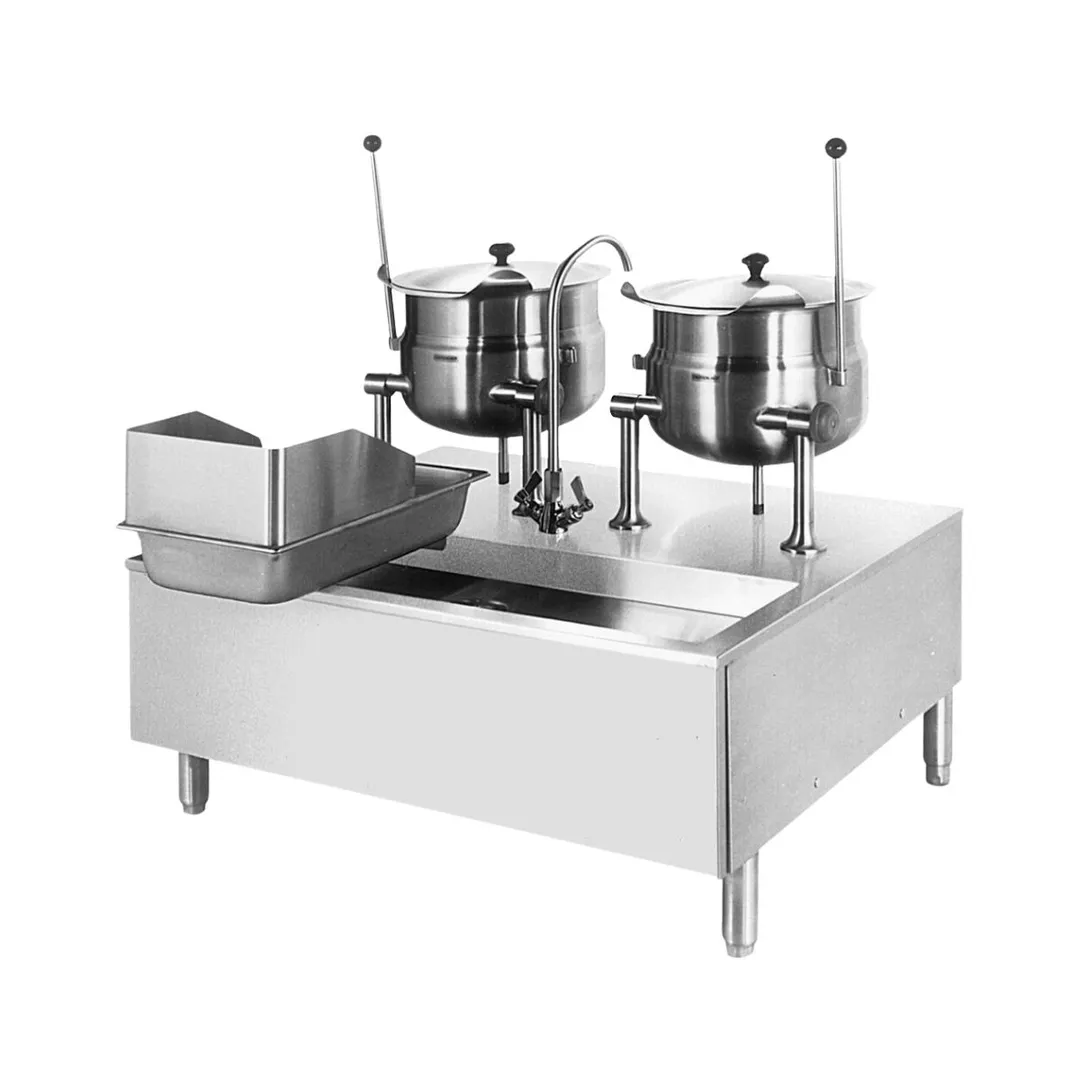

Kettle/Cabinet Assembly, direct-steam, 63" W cabinet base, with two 12-gallon kettles, low cabinet height, stainless steel kettles, top, front & sides with 316 series stainless steel interior,, lift-off covers, double pantry faucet, sliding drain pan with splash shield, factory installed steam control kits
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
