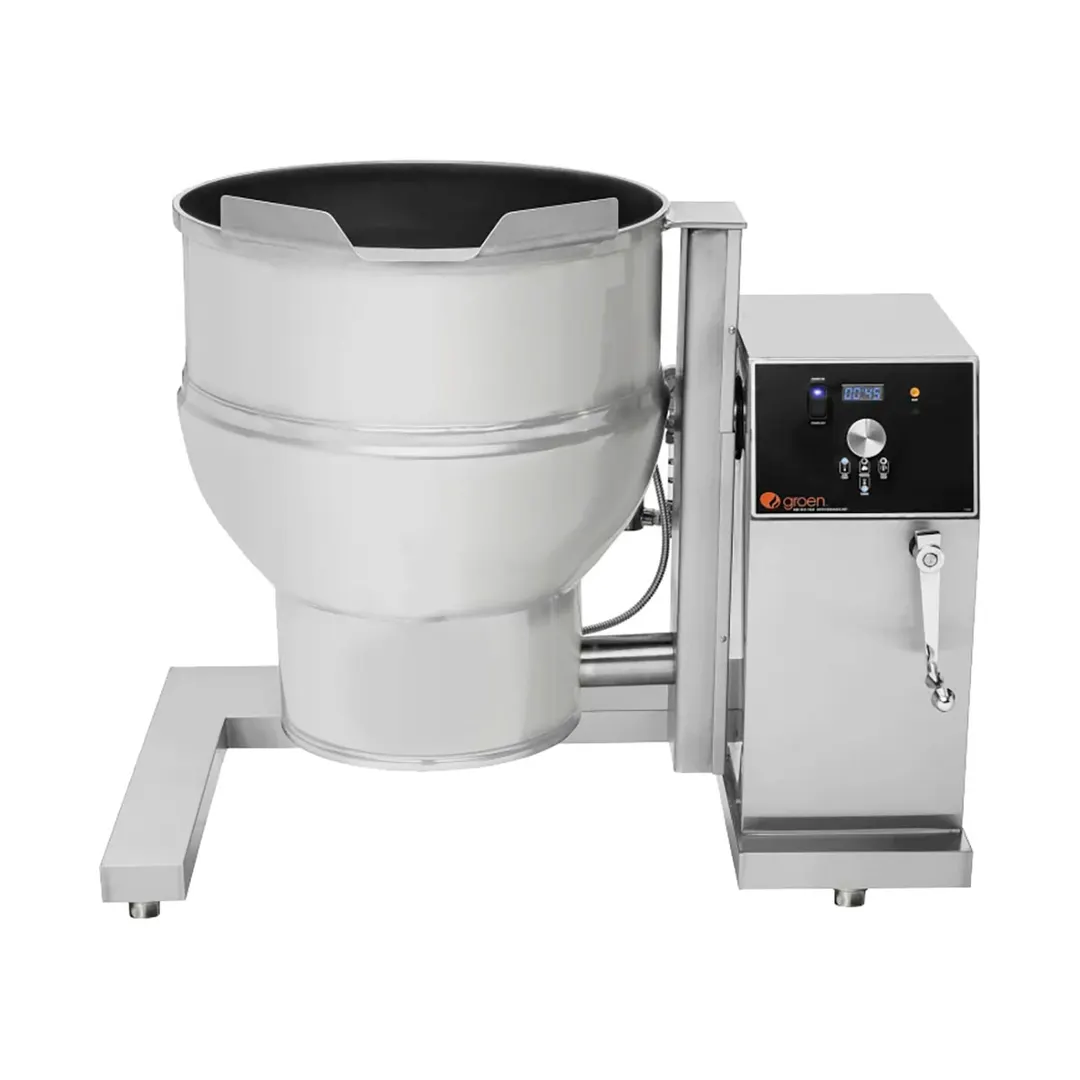

Groen DEE/4T-40A TA/3 40 Gallon Floor Tilting 2/3 Steam Jacketed Electric Kettle Mixer
Construction
Kettle interior shall be of 316 stainless steel, solid one-piece welded construction. The control console and kettle exterior shall be 304 stainless steel. The kettle body shall be mounted on a heavy duty stainless steel, combination kettle support tilt trunnion which is supported by the polished stainless steel enclosed base. The kettle shall be furnished with heavy duty reinforced rim with a butterfly shaped pouring lip for maximum sanitation and ease of pouring. The base shall be provided with stainless steel tubular legs with adjustable flanged feet. The enclosed support base shall contain a self-locking worm and gear tilt mechanism, contactor, etc., and shall be of sanitary drip-proof construction with interior readily accessible for installation or maintenance. Unit includes 2” TDO and 10-gallon etch markings and double pantry faucet.
Finish
Interior of kettle shall be polished to a 180 emery grit finish. Exterior of kettle shall be finished to a bright semi-deluxe finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.

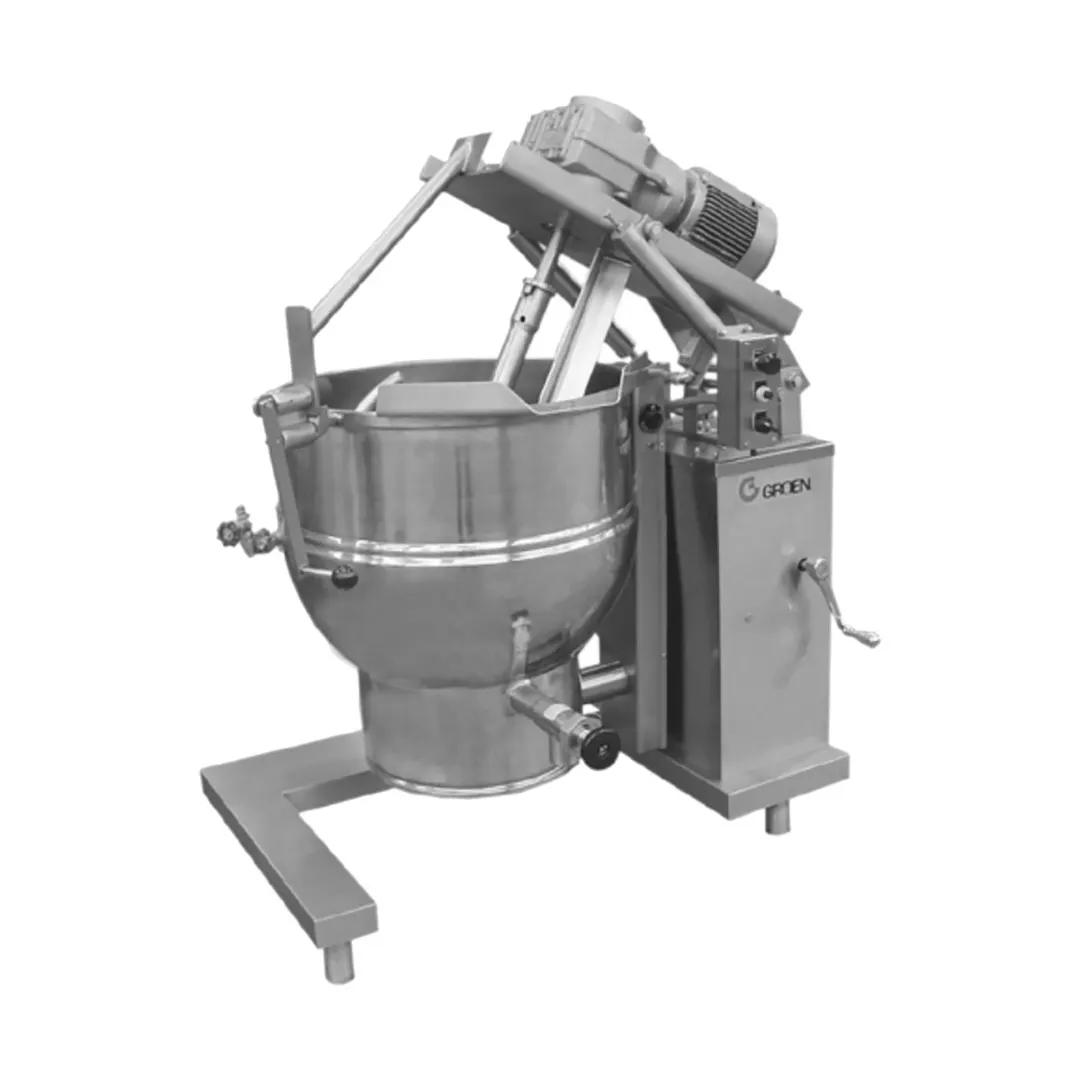

Agitator Assembly
Enclosed transfer case to be cast aluminum with a 3-to-1 gear ratio. Gear motor to be completely enclosed-type, cast iron housing, right angle shaft down, helical bevel gearing, variable speed motor driven through an electronic speed control. See table on back for minimum and maximum agitator speeds. Main agitator to be anchor-type, shaped to the contour of the kettle and provided with removable nylon finger scrapers. The secondary counter-rotating bar type agitator shall be centrally-located between the center shaft and the outside arms of the main agitator. Both agitators are attached with bayonet connections for easy, quick removal for cleaning or when kettle is to be used without the mixing mechanism. Both agitators are 304 stainless steel and either can be used alone. Agitator and motor drive assembly can be manually tilted to the right side of kettle.
ASME Code And Ul Listing
Unit shall be ASME shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 50 PSI. Kettle is UL listed.
Sanitation
Unit shall be designed and constructed to meet NSF requirements, and be NSF listed.
Self Contained Steam Source
Kettle shall have an electrically heated self-contained steam source to provide kettle temperatures of 150°F to approximately 295°F. Unit shall be factory charged with water and rust inhibitors to ensure long life and minimum maintenance.
Safety Features
Kettle shall have safety cut-off (cuts off heat when tilted to an angle above 10 degrees), pressure relief valve, high limit pressure switch and low water cut off, 24V control system, and agitator safety tilt cut off.
