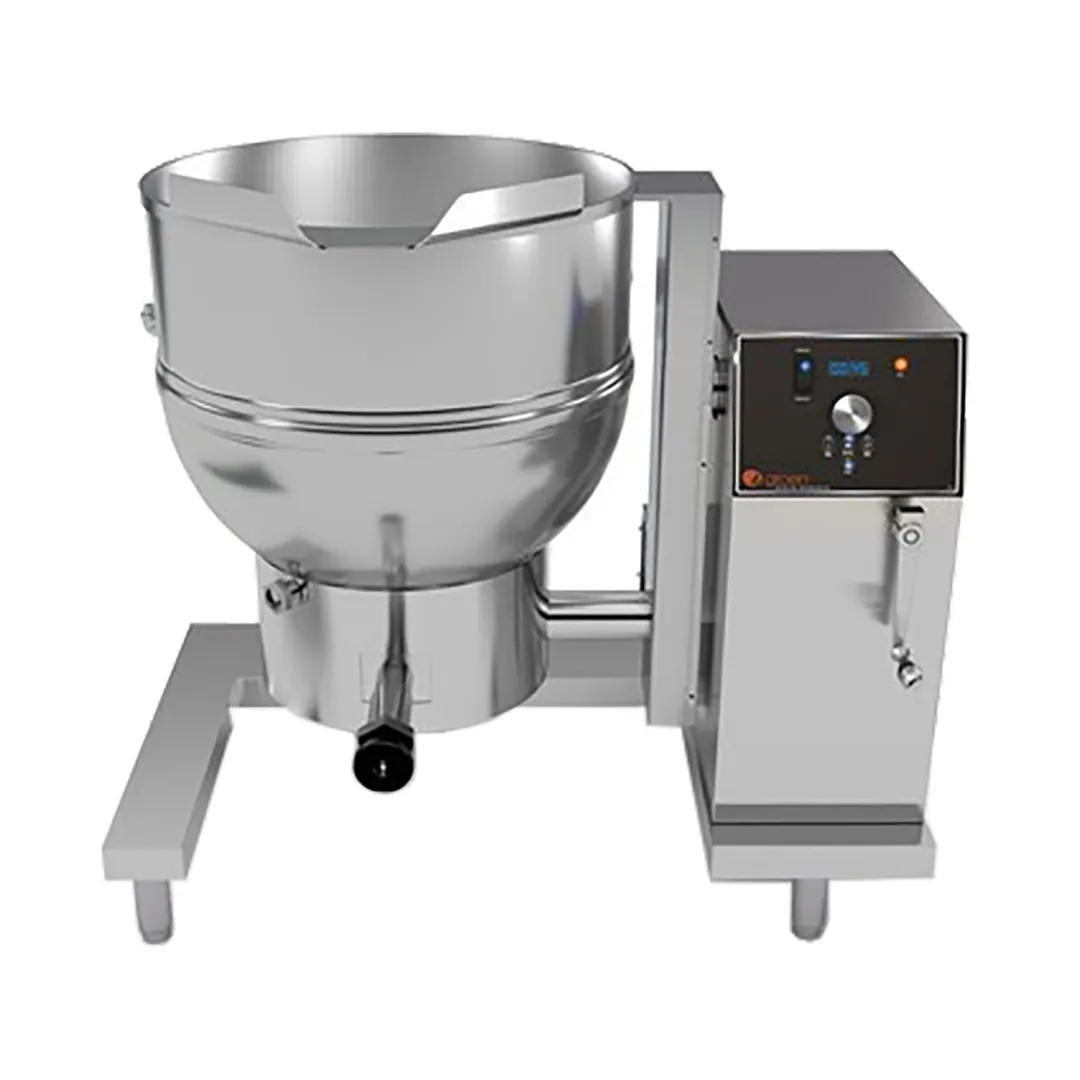

Groen DHS-40C2T 40 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle, 150.000 Btu
Construction

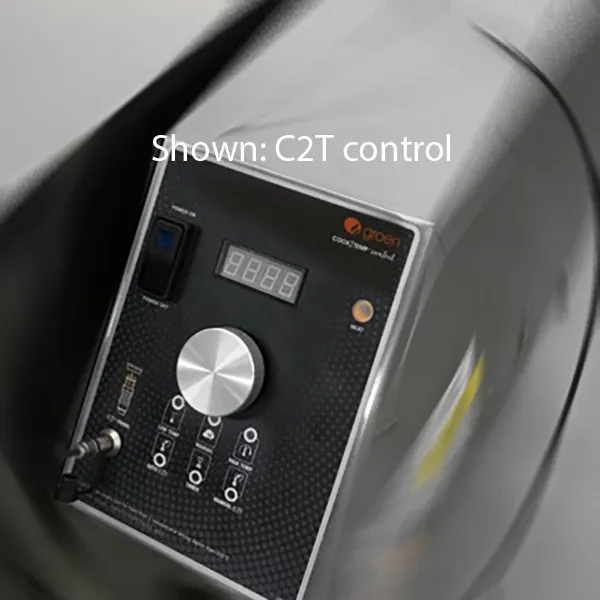

Kettle interior shall be of 316 stainless steel with solid one-piece welded construction. The console and all exposed surfaces shall be stainless steel. All controls shall be mounted in a water resistant IPX6-rated enclosure right of the kettle body. The kettle body shall be mounted to a heavy-duty stainless steel tilt trunnion with manual crank and worm-and-gear. The trunnion assembly is supported by the stainless steel enclosed base. The base shall have stainless steel tubular legs with adjustable bullet feet. The trunnion enclosure shall contain a smooth operating, self locking hand crank tilt mechanism, with interior readily accessible for installation or maintenance. The unit shall have a heavy reinforced bar rim with a welded-in butterfly shaped pouring lip for maximum sanitation and durability. Faucet mounting bracket is standard.
Finish
Kettle interior shall be polished to a 180 emery grit finish. Exterior of kettle shall be finished to a bright high buff finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.
ASME Code
Unit shall be ASME shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 30 PSI. Unit shall be Design Certified by CSA International and registered in Canada with a CRN number.
Sanitation
Unit shall be designed and manufactured to meet NSF requirements and be NSF listed.
Self Contained Steam Source
Kettle shall have a gas-heated (natural or propane) selfcontained steam source to provide kettle temperatures of 150 to approximately 295˚F. Unit shall be factory charged with water and rust inhibitor to ensure long life and minimum maintenance.
Safety Systems
Safety systems to include kettle-mounted: pressure-vacuum gauge, pressure relief valve, pressure limit control, water sight glass; plus lowwater cutoff, gas regulator valve and kettle tilt automatic gas shutoff.
Performance Features
Patented fin tube burner assembly delivers 77-80% combustion efficiency; 40 Gallon Low Height Model has 150,000 BTU/HR firing rate with 115,500 BTU/HR into the product. Lower rim height makes inspection, ingredient [loading] and cleaning easier. Electronic ignition to standing pilot is standard. Unit shall be thermostatically controlled to automatically shut off when desired temperature is reached and turn on when product temperature drops below desired setting.
Drawoff
A 2” sanitary tangent drawoff is optional. If drawoff is specified, outlet shall be equipped with removable 1/4” perforated stainless steel strainer.
