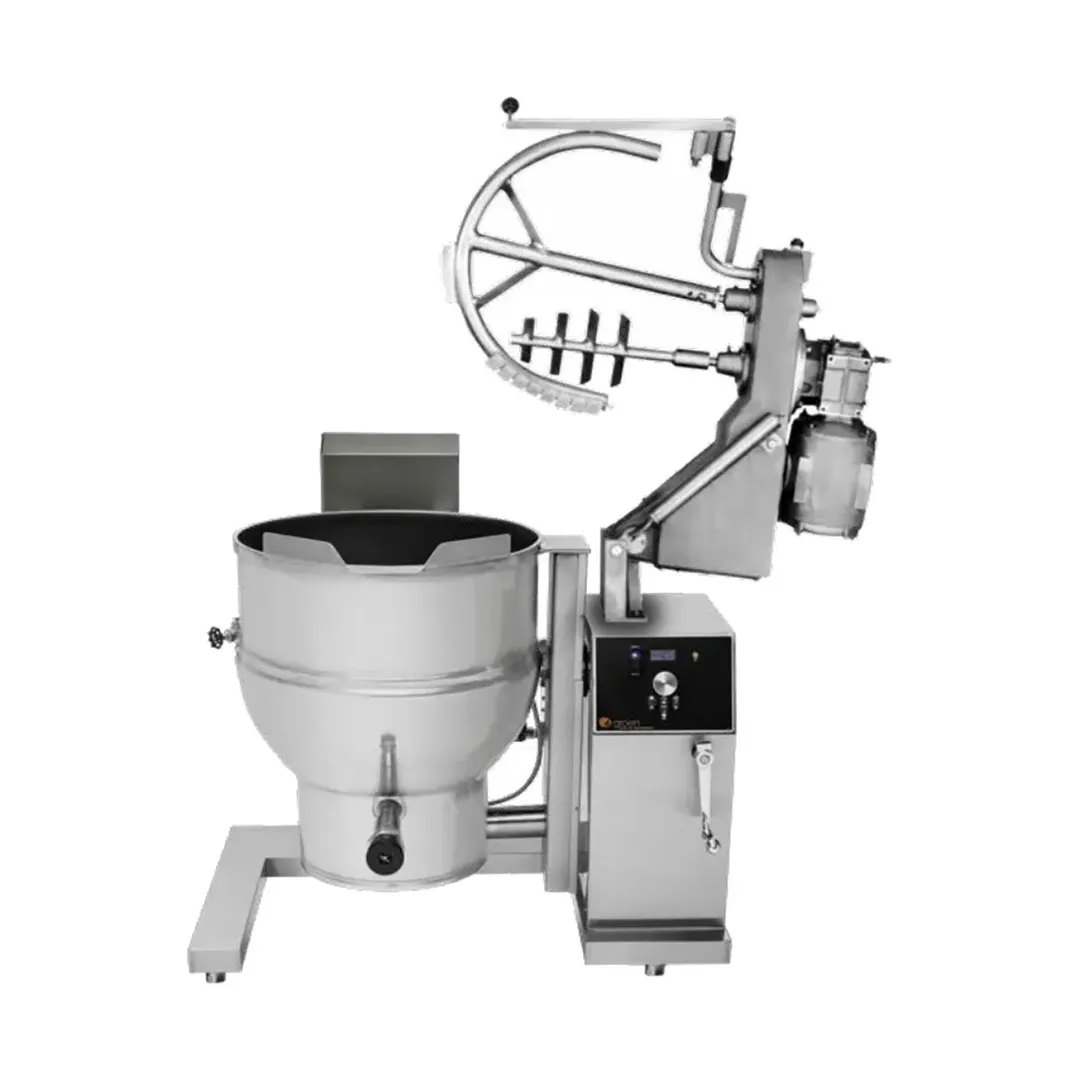

Groen DHT-60C,TA/3 60 Gallon Floor Tilting 2/3 Steam Jacketed Gas Kettle Mixer, Twin Shaft Agitator
Construction
Kettle interior shall be of type 316 stainless steel, solid one-piece welded construction. The control console and kettle exterior shall be 304 stainless steel. The kettle body shall be mounted on a heavy-duty stainless steel, combination kettle support tilt trunnion, which, is supported by the polished stainless steel enclosed base. The kettle shall be furnished with heavy-duty reinforced rim with a butterfly-shaped pouring lip for maximum sanitation and ease of pouring. The base shall be provided with stainless steel tubular legs with adjustable bullet feet. The enclosed support base shall contain a self-locking worm and gear tilt mechanism, controls, etc., and shall be of sanitary, drip-proof construction with interior readily accessible for installation or maintenance. Unit includes 2” TDO, 10-Gallon etch markings and double pantry faucet.
Finish
Kettle interior shall be polished to a 180 emery grit finish. Kettle exterior shall be finished to a bright semi-delux finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.
Agitator Assembly
Enclosed transfer case to be cast aluminum with a 3- to-1 gear ratio. Gear motor to be completely enclosed-type, cast iron housing, right angle shaft down, helical bevel gearing, variablespeed motor driven through an electronic speed control. See table on back for minimum and maximum agitator speeds. Main agitator to be anchor type, shaped to the contour of the kettle and provided with removable nylon finger scrapers. The secondary counter-rotating bar type agitator shall be centrally-located between the center shaft and the outside arms of the main agitator. Both agitators are attached with bayonet connections for easy, quick removal for cleaning or when kettle is to be used without the mixing mechanism. Both agitators are 304 stainless steel and either can be used alone. Agitator and motor drive assembly can be manually tilted to the right side of the kettle.
ASME Code And CSA Certification
Unit shall be ASME shopinspected, stamped and registered with the National Board for operation up to a maximum working pressure of 50 PSIG. Kettle shall be design certified by CSA America for use with natural gas or LP gas.
Sanitation
Unit shall be designed and constructed to be NSF listed, meeting NSF requirements.
Self Contained Steam Source
Kettle shall have an gas-heated (natural or propane), self-contained steam source to provide kettle temperatures of 150°F to approximately 295°F. Unit shall be factory-charged with water and rust inhibitors to ensure long life and minimum maintenance.
Safety Features
Kettle shall have safety cut-off (turns off heat when tilted to an angle above 10 degrees), pressure relief valve, high limit pressure switch and low water cut-off, 24Volt control system and agitator safety tilt cut-off.
