Groen TDHC-20C2T 5 Gallon Countertop Tilting 2/3 Steam Jacketed Gas Kettle, 31.000 Btu
Construction
Kettle shall be of Type 304 stainless steel, one-piece welded construction. All exposed surfaces shall be stainless steel. All controls shall be contained in a water resistant IPX6-rated enclosure. Unit shall have a heavy reinforced rim with a welded in butterfly shaped pouring lip for durability and pouring control. Right and left hand tilt handle mounts provided. Faucet bracket is standard and mounted on rear of controls/trunnion enclosure.
Finish
Interior of kettle shall be polished to a 180 emery grit finish. Exterior of kettle shall be finished to a bright high buff finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.
ASME Code
Unit shall be ASME shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 50 PSI. Unit shall be design certified by CSA International.
Sanitation
Unit shall be designed and constructed to meet NSF and known health department and sanitation codes, and NSF listed.
Self Contained Steam Source
Kettle shall have a gas-heated (natural and propane gas CSA certified; consult factory for butane or butane/propane mixture), self-contained steam source to provide kettle temperatures of 150° to approximately 295°. Unit shall be factory charged with water and rust inhibitors to ensure long life and minimum maintenance.
Safety Systems

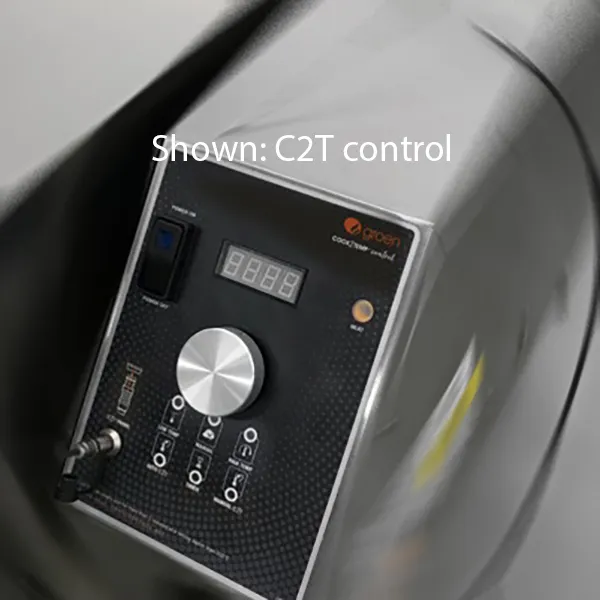

Kettle shall have safety tilt cut-off (cuts off heat when tilted more than 12°), pressure relief valve, high limit pressure switch, low water cut-off and 24 volt control system. Gas supply shuts off automatically when unit is tilted.
Performance Features
Patented fin tube burner assembly delivers efficient combustion. The 20/24 quart units shall have 31,000 BTU/hr firing rate and the 40/48 quart units shall have a 52,000 BTU/hr firing rate. Electronic spark ignition is standard. Unit shall be thermostatically controlled to automatically shut off when desired temperature is reached and turn on when product temperature drops below desired setting. Design shall make it easy for one person to precisely tilt kettle, when filled to capacity. Pouring height allows filling of 4” deep pans on the table top. Tilt handle is field reversible for right or left hand tilt.
