Legion Model LSI
STANDARD FEATURES
- The Legion 316 Kettle System
- 316L stainless liner
- 316 stainless draw-off tube and welds
- 316 stainless 11⁄2” compression draw-off valve
- 304L stainless kettle jacket
- 304 stainless leg socket supports, seam welded to jacket
- 304 stainless legs provided with reinforcing bracing
- 4 legs for 20 - 30 gallon, 1 5/8” diameter
- 4 legs for 40 - 100 gallon, 2” diameter
- Adjustable fl anged feet
- 304 stainless, one piece, domed cover, actuator-assisted on 40 - 100 gallon
- Full body insulation (3” - 14”) between kettle jacket and outer casing
- 304 stainless outer casing seam welded to the 3” reinforced radius lip
- Condensate drain and steam supply provided with rear connections
- Front mounted steam control valve
- 30 psi operating pressure
- Perforated disk strainer, 1/4” holes
From The Manufacturer

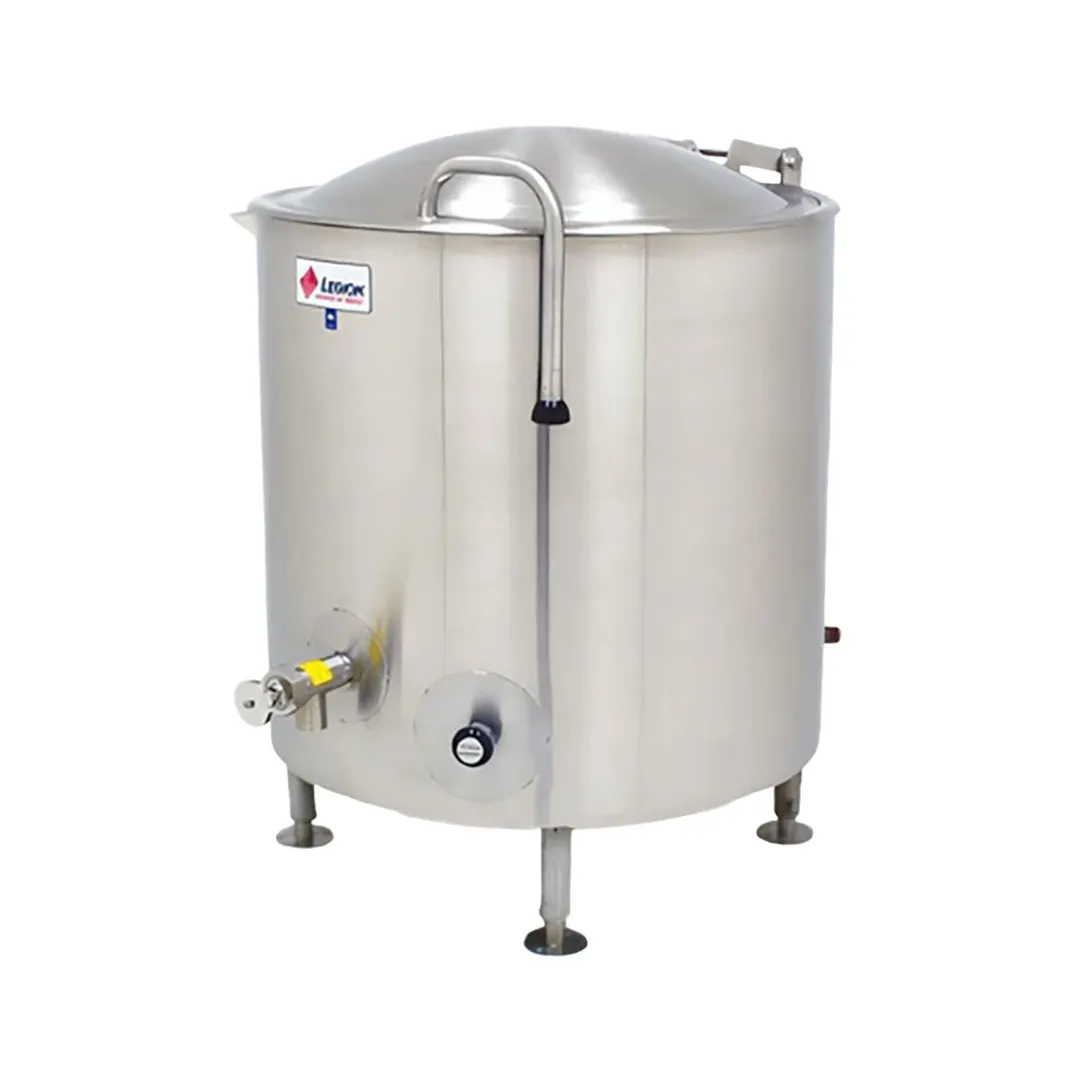

Low-Rim™ Stationary Direct Steam Kettle, with mixer, 60-gallon, 304 stainless steel liner, insulated full jacket, 2" draw-off valve with perforated 1/4" hole strainer, stainless steel construction, (4) legs with adjustable flanged feet, 30 psi
