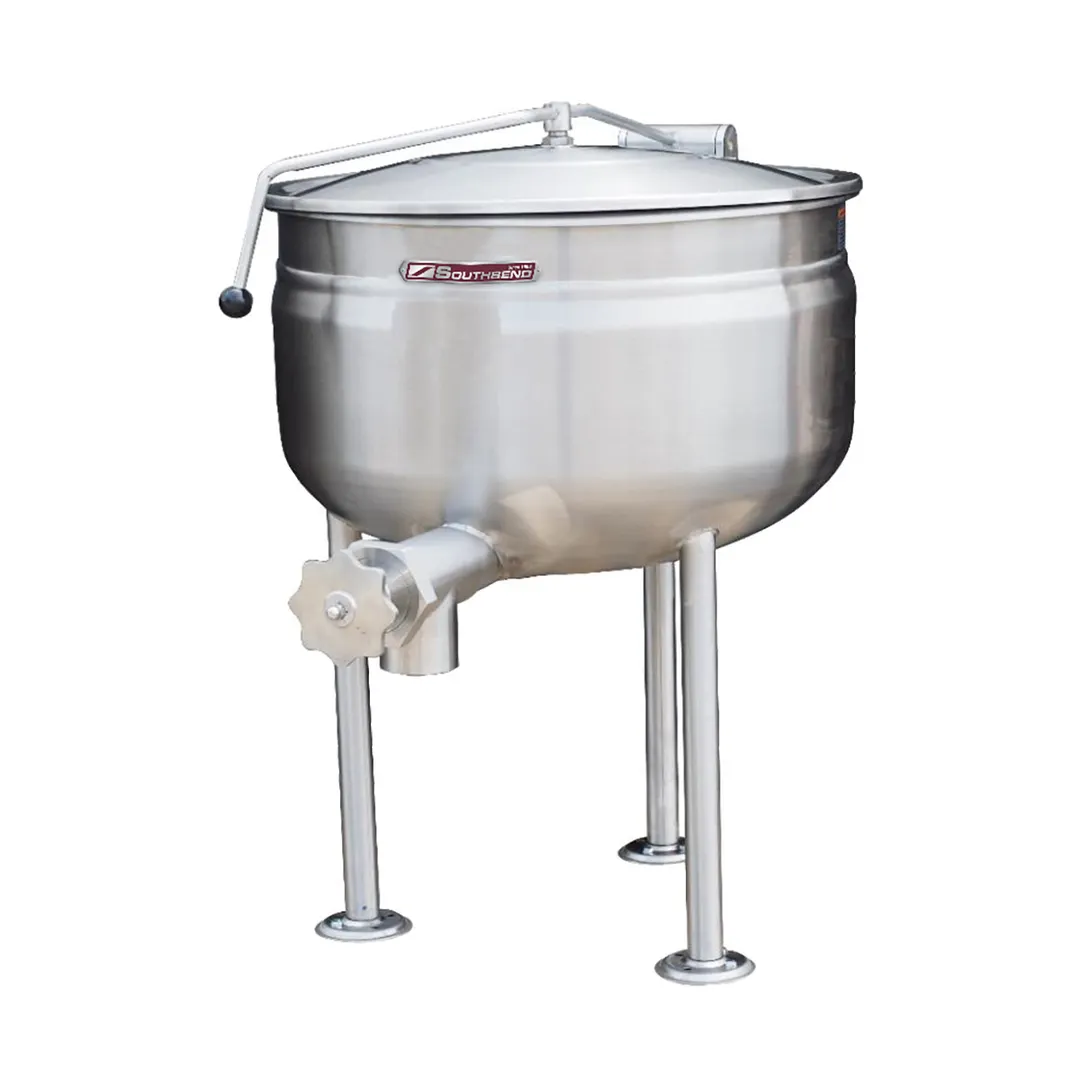

Southbend KDLS-40 Stationary Direct Steam Kettle
Standard Construction Specifications
- Shall be a Southbend Steam model KDLS-20, KDLS-30, KDLS-40, KDLS-60, KDLS-80 or KDLS-100, direct steam connected tri-leg kettle.
- A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
- The bottom of the kettle shall be of hemispherical design for superior heat circulation.
- Unit shall be mounted on stainless steel tubular tri-legs.
- Each leg shall be fitted with a 4 hole, adjustable, flanged foot for securing to the floor.
- Construction shall be all welded satin finish stainless steel, type 304.
- The liner shall be standard 316 for high acid content cooking.
- Convenience features shall include 2” (50mm) sanitary draw-off valve with perforated strainer and a spring assist hinged counterbalanced stainless steel domed cover.
- Includes faucet bracket.
From The Manufacturer
Stationary Kettle, direct steam, 40 gallon capacity, 2/3 jacket, 2" draw-off, includes: perforated strainer, hinged cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior finish, (3) stainless steel tubular legs with adjustable flanged feet, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
