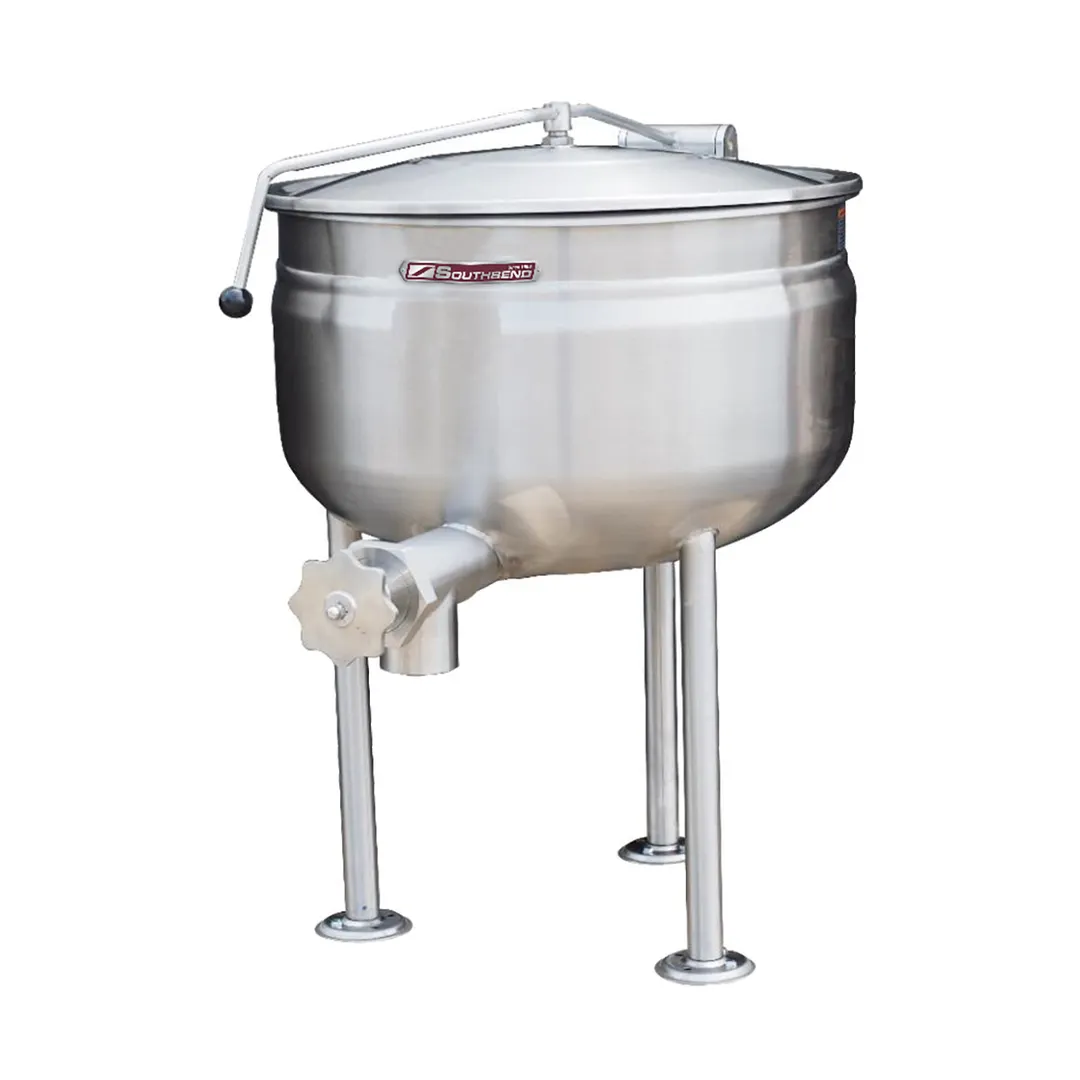

Southbend KDLS-80 Stationary Direct Steam Kettle

Standard Construction Specifications

• Shall be a Southbend Steam model KDLS-20, KDLS-30, KDLS-40, KDLS-60, KDLS-80 or KDLS-100, direct steam connected tri-leg kettle.
• A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
• The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• Unit shall be mounted on stainless steel tubular tri-legs.
• Each leg shall be fitted with a 4 hole, adjustable, flanged foot for securing to the floor.
• Construction shall be all welded satin finish stainless steel, type 304.
• The liner shall be standard 316 for high acid content cooking.
• Convenience features shall include 2” (50mm) sanitary draw-off valve with perforated strainer and a spring assist hinged counterbalanced stainless steel domed cover.
• Includes faucet bracket.
