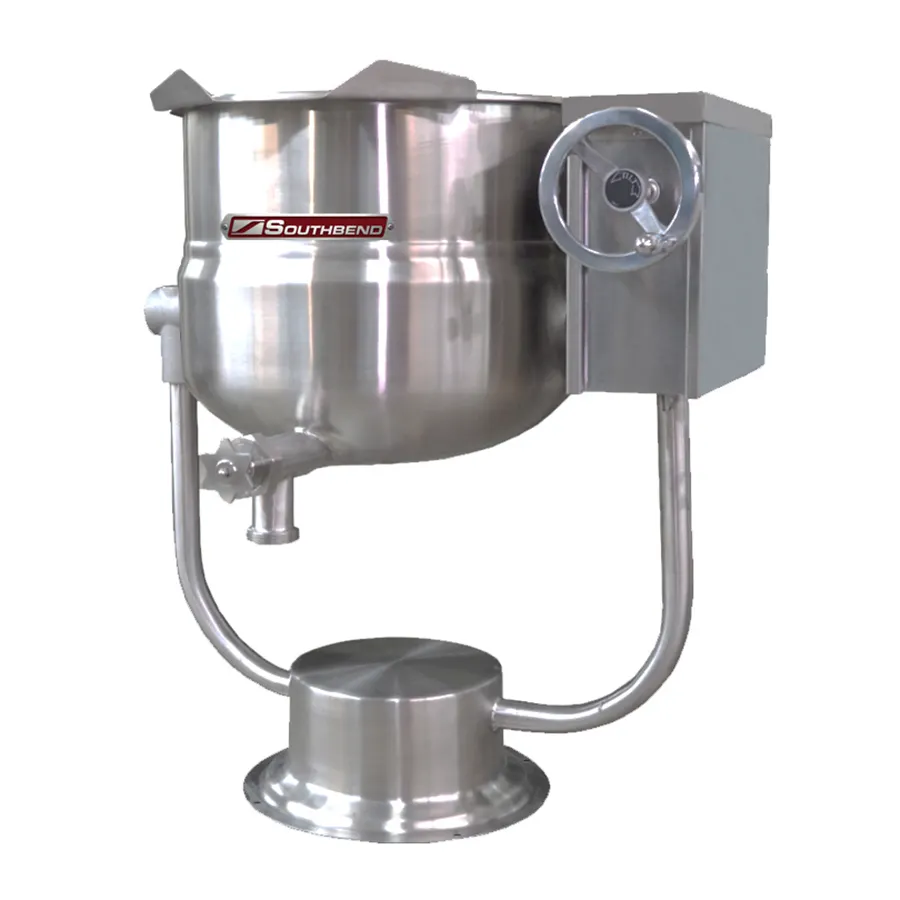

Southbend KDLT-30 Tilting Direct Steam Kettle

Standard Construction Specifications

• Shall be a Southbend Steam model KDLT-20, KDLT-30, KDLT-40, KDLT60, KDLT-80, or KDLT-100, direct steam connected tri-leg tilting kettle.
• A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
• The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• The tri-leg mounting frame (60,80,&100 on 4 legs) of stainless steel pipe shall support the kettle and tilt console, conceal the steam piping and house the steam control valve and tilt mechanism.
• Each leg shall be fitted with a 4 hole adjustable flanged foot for securing to the floor.
• The tilt mechanism shall permit the kettle to tilt forward a full 90° for complete emptying.
• The tilting mechanism shall be self locking for positive stop action.
• Construction shall be all welded #4 finish stainless steel type 304.
• The interior liner shall be standard 316 for high acid content cooking.
• Faucet bracket included.
