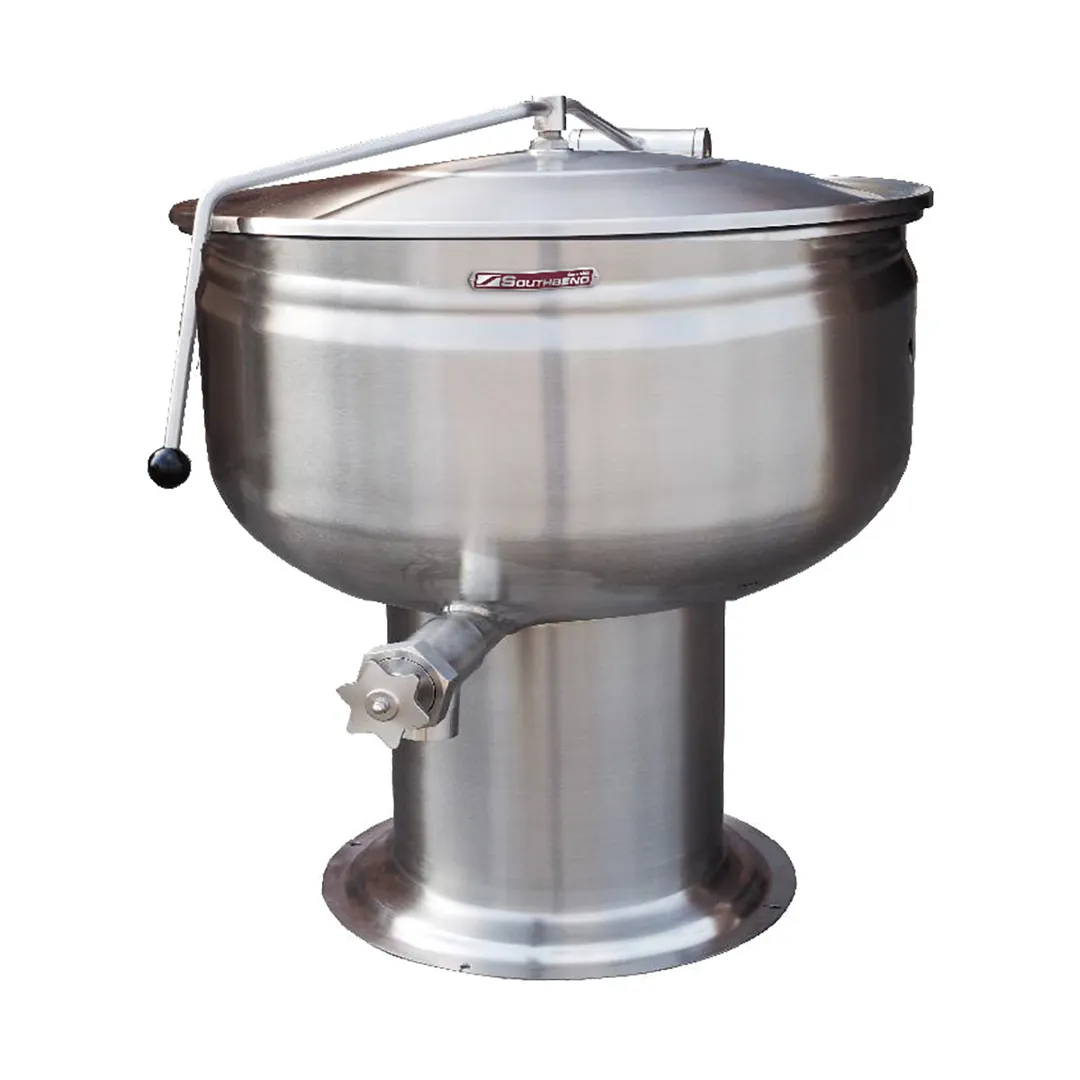

Southbend KDPS-20F Stationary Direct Steam Kettle
Standard Construction Specifications
- Shall be a Southbend Steam model KDPS-20F, KDPS-30F, KDPS-40F or KDPS-60F, direct steam connected, full jacketed pedestal base kettle.
- A double wall kettle interior shall form a steam jacket around the kettle.
- The bottom of the kettle shall be of hemispherical design for superior heat circulation.
- The kettle interior on model 20 gallon shall be standard stainless steel type 316 for high acid content cooking.
- Kettle shall be mounted on stainless steel pedestal base with four 7/16” holes evenly spaced for securing to the floor.
- Construction shall be all welded satin finish stainless steel, type 304.
- The interior liner shall be standard type 316 stainless steel for high acid content cooking.
- Faucet bracket standard.
- Convenience features shall include a spring assist hinged stainless steel cover and a 2” (50mm) sanitary draw-off valve with perforated strainer.
From The Manufacturer
Stationary Kettle, direct steam, 20 gallon capacity, full jacket, 2" draw-off, includes: perforated strainer, spring assisted stainless steel cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel construction, pedestal, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
