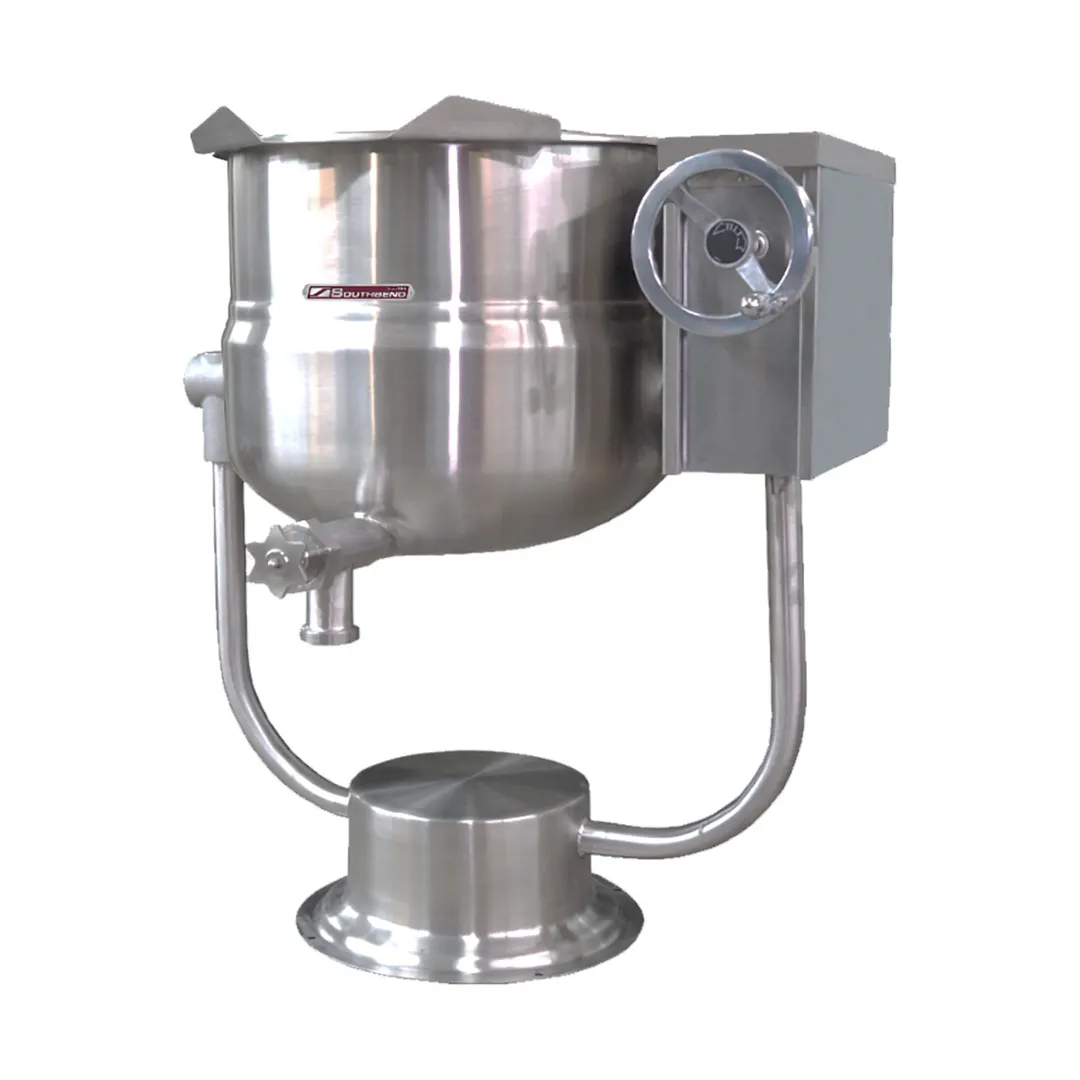

Southbend KDPT-30 Tilting Direct Steam Kettle

Standard Construction Specifications

• Shall be a Southbend Steam model KDPT-20, KDPT-30, KDPT-40, KDPT-60 or KDPT-80, direct steam connected, pedestal tilting kettle.
• A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
• The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• The pedestal base shall have four 7/16” (11 mm) holes evenly spaced for securing to the floor.
• A sealed tilting mechanism shall permit the kettle to tilt forward a full 90° for complete emptying.
• The tilting mechanism shall be self locking for positive stop action.
• Construction shall be all welded, satin finish, stainless steel, type 304.
• The kettle interior shall be standard stainless steel type 316 for high acid content cooking.
• The kettle shall be ASME Code stamped, National Board Registered and NSF certified.
• Faucet bracket standard and included.
