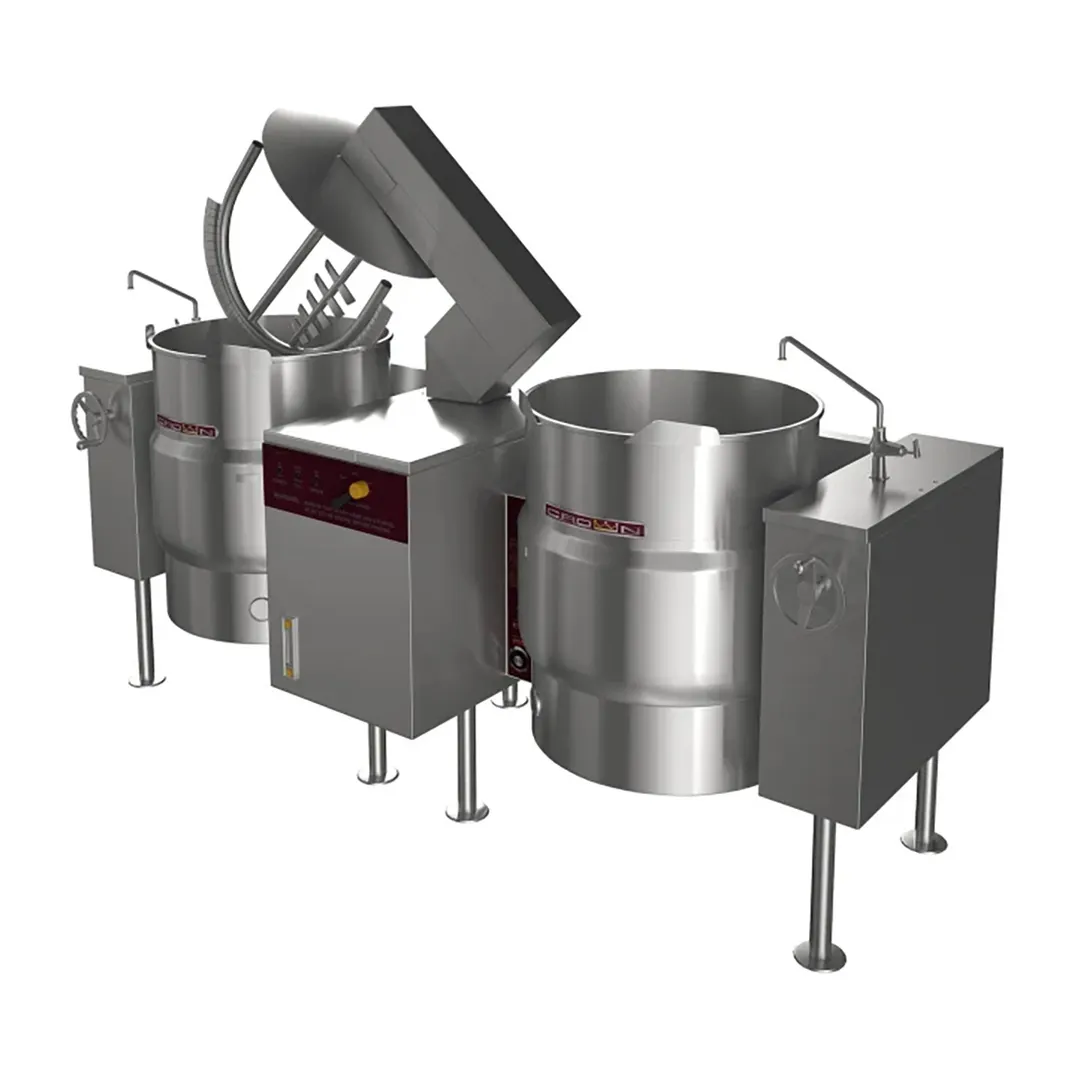

Southbend KEMTL-80-2 Electric Twin Unit Kettle Mixer
Standard Construction Specifications
- Shall be a Southbend Steam model KEMTL-40-2, KEMTL-60-2, KEMTL-80-2 or KEMTL-100-2, self-generating, twin electric kettle.
- Construction shall be welded stainless steel type 304 satin finish.
- A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle, 316 stainless steel liner for high acid content products.
- The bottom of the kettle shall be of hemispheric design for maximum heat transfer.
- The tubular legs shall be constructed of stainless steel pipe fitted with four hole, adjustable, flanged feet for securing to the floor.
- A sealed stainless steel tilt mechanism shall permit the kettle to tilt forward a full 90° for complete emptying.
- The tilt mechanism shall be self locking for positive stop action.
- Kettle controls shall include a power switch, thermostat, power “on” light (pilot light) vacuum/pressure gauge, pressure relief valve and low water shut off.
- Thermostat range to be 140°F to 285°F (60°C to 140°C), a maximum pressure of 50 psi (345 kPa).
- Electric elements to be removable.
Mixer Features
- The mixer is a variable speed unit powered by a 5 hp electric motor driving a hydraulic pump.
- Two agitators shall be included, a primary stainless steel scraper/agitator, and a secondary high speed mixer.
- Both agitators shall be removable for cleaning and no tools will be required for removal.
- The console front to have the main power switch, mixer lift switch and variable speed control.
- The bridge is constructed of 10 gauge stainless steel and contains two heavy duty hydraulic motors to drive the agitators.
- The bridge shall be power tilt, and swing 140° out of the way for kettle tilting or cleaning.
From The Manufacturer
Tilting Kettle/Mixer, electric, (2) 80 gallon capacity, 2/3 steam jacket, 316 stainless steel liner, floor mounted control console supports, includes (2) removable agitators, vacuum/pressure gauge, pressure relief valve, low water shut off, 5 HP variable speed motor, 304 stainless steel construction, stainless steel tubular legs with adjustable flanged feet, cCSAus, NSF
