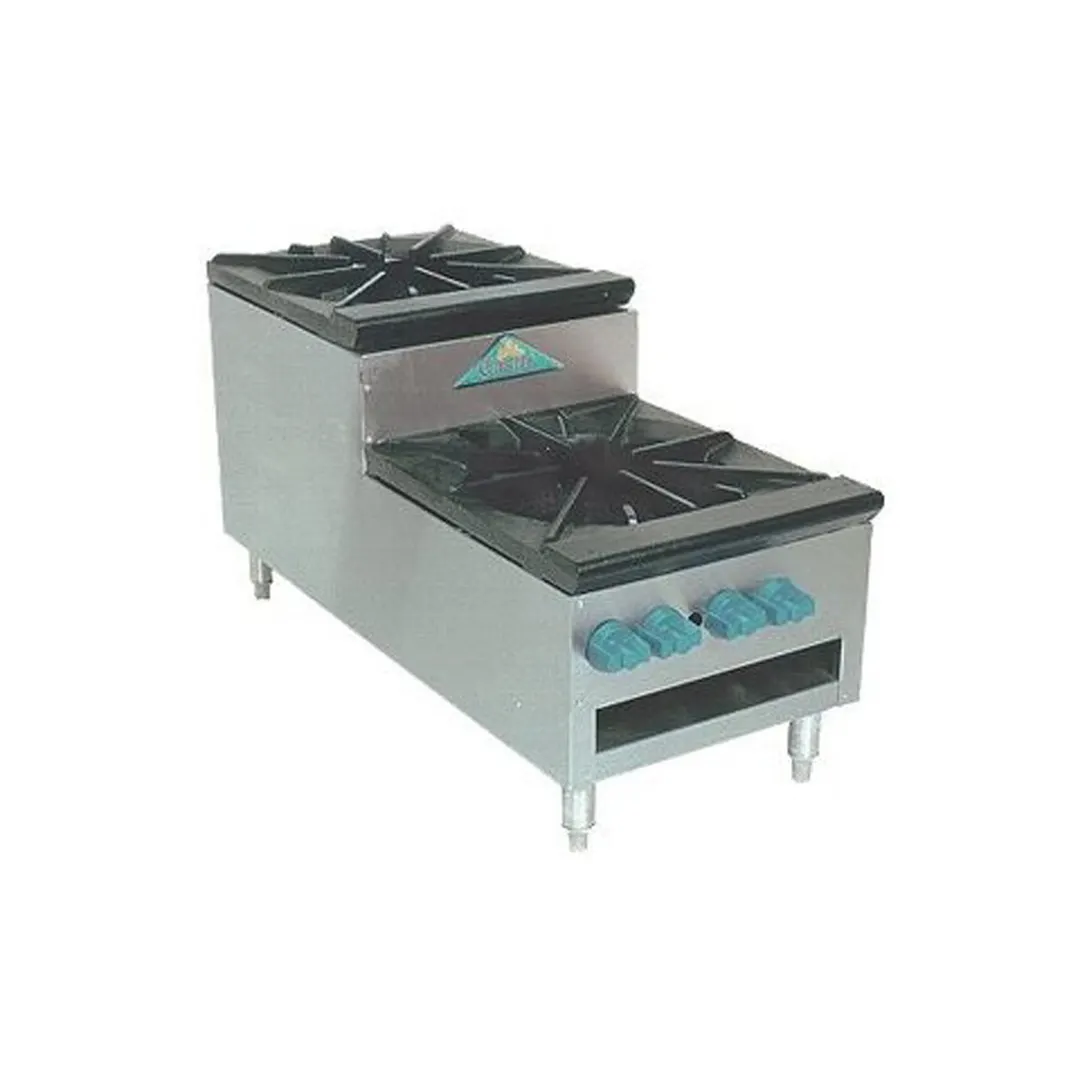

Comstock-Castle SUCSP18 18" Gas Stock Pot Range, (2) Three Ring Burners w/ Step-Up, 220.000 BTU

Comstock-Castle SUCSP18 Standart Features

Construction

Standard finish is easy cleaning stainless steel, welded together with corrosion resistant aluminized framing steel. Stainless steel front panel. 6˝ heavy duty pipe legs with adjustable feet. Installation clearances for non-combustible surfaces are 0˝ on the side and 4˝ in the rear, combustible surfaces are 5˝ and 5˝. Step up models available, call factory

Controls

Castle stock pot stoves are equipped with brass gas valves, automatic standing pilots, adjustable pressure regulators and cool to the touch control knobs.

Burners

CSP models feature a long life 3 ring, double venturi, cast iron burners rated up to a total of 110,000 BTU’s per section. SP models feature a double ring, single venturi, cast iron burner rated at a total of 55,000 BTU’s per section.

Top Grate

Heavy duty one piece cast iron top grate with cast in bull nose. Designed to accommodate pots as large as 18˝ & 20˝ in diameter.

Testing

The gas system is tested before shipment. Optimal pressure is 4˝ WC for natural gas, 10˝ WC for propane

Accessories & Options

Taller & shorter frames, long legs, step up frames, gas hoses, carrying handles, knob protectors and casters.

Comstock-Castle SUCSP18 Specification

Stock Pot Range, Step-Up, Gas, 18" wide x 41" deep frame, 16" and 25" cook surfaces, (2) double venturi, cast iron burners, open front cabinet base, (2) 18" x 21" cast iron top grates, stainless steel exterior finish, (4) manual controls, NSF
