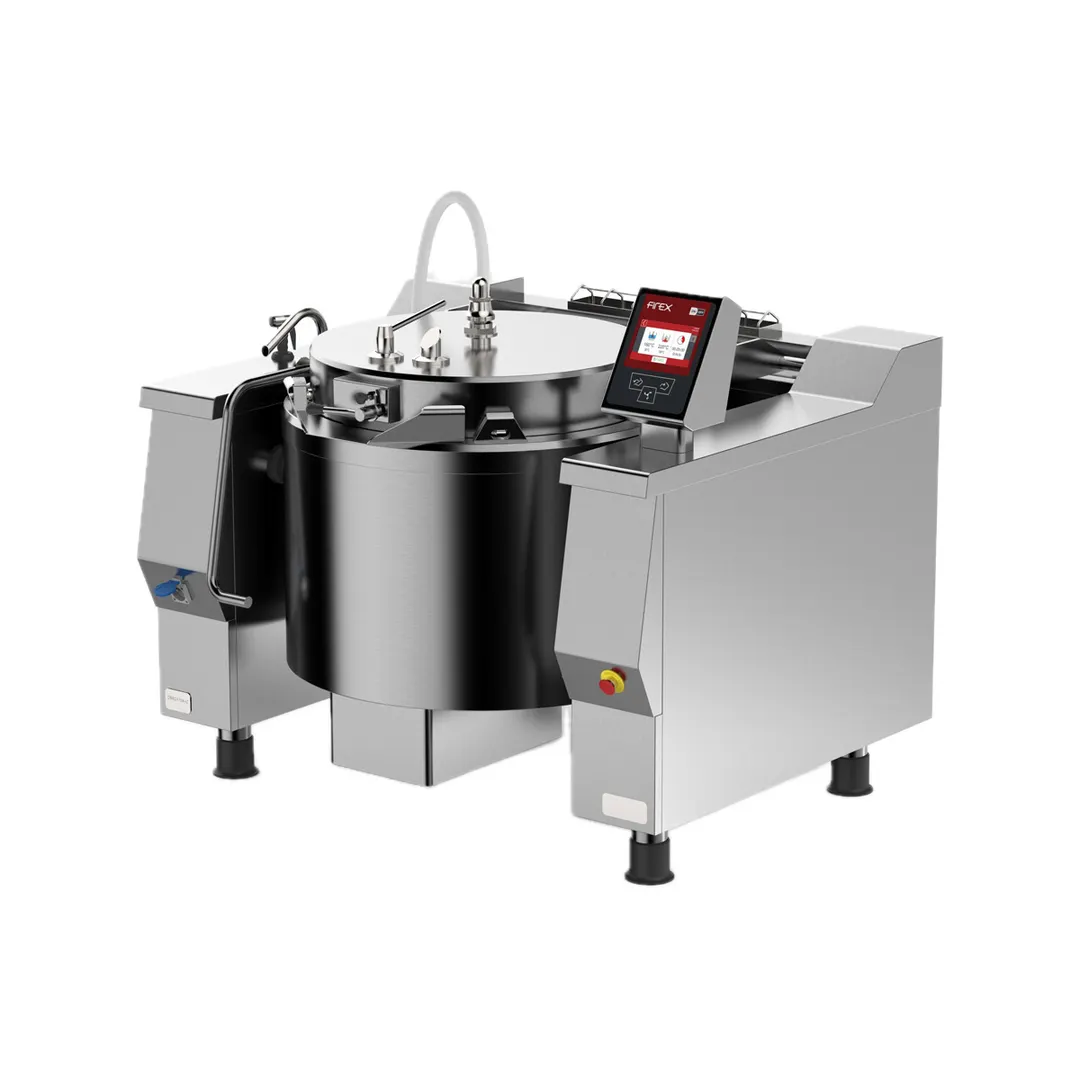

Firex Electric Tilt Braising Pan 48 Gallon with Mixer - 19.4kW, 4.3PSI - Heating Walls

General Functional Features

Heating by means of armoured elements in INCOLOY-800 alloy controlled by electronic board
Temperature control by system with two probes (product/bottom)
Heating tank walls by using 3 band heaters, which can be activated from the bottom up, controlled by an electronic control panel
Pressure cooking with automatic system for eliminating air from the cooking container (for cooking with saturated steam) and automatic steam condensation after cooking to allow fast and safe lid opening without steam dispersion in the room
Automatic mixing device with three arms, PTFE scrapers, complete with vertical blade for scraping walls, entirely removable to facilitate cleaning, adjustable from the control panel according to the product to be processed
Electronic control by means of multifunctional keyboard with Touch Screen 7” and easy and clear messages
USB connection to download HACCP data, update the software and load cooking programs
Ability to interrogate the machine using communication protocol MODBUS over RS485 serial interface
Connection for power economizer

Panel Board Functions

On/off switch
Resistive 7” touch screen
Keys to turn on/off the mixer and move basin
Selection of 8 different cooking modes, with working temperature setting
Possibility of cooking with tilted basin (up to 15°)
Cooking type and time setting
Cooking in “Manual” mode
Cooking in “Program” mode
Creating and editing multiphase cooking programs, setting for each phase: type of cooking; cooking parameters (temperature and time); mixer settings; settings for heating walls and possibility to insert text messages
Wall temperature settings (range 122-266° F) and 3 levels for heating walls
Speed setting/adjustment (clockwise and counterclockwise) rotation times and mixer pause times
Possibility to activate mixer at minimum speed during tank tilting to facilitate product pouring
Tank water load setting (hot up to 140° F/cold) with automatic liter measurements
Control for tilting and return of cooking tank from Touch Screen or keyboard
Delayed cooking setting with date, time, and programming cycle
Language settings Touch Screen
Input of different units of measurement (° C/° F, Liters/gallons, etc)

Display/Signal

Display type of cooking, temperature probes used and set temperature
Heating operating visual alarm
Time to end of cycle display
Tank pressure display
Reporting lid locking and condensing time during cooking under pressure
Display tank out of position for cooking
Audible/visible warning of mixer program start
Signaling tap position, managing water in the tank
Signal of lid and cock position during vat tilting
Thermostat intervention safety signaling
Self-diagnostics

Safety System

Emergency button
Blocking of heating for excess of temperature with manual resettable safety thermostat
Mechanical lid opening lock with tank under pressure
Lid safety valve
Heating interruption during vat tilting

From The Manufacturer

Cucimix Tilting Skillet Pressure Braising Pan, electric, 48 gallon capacity, heating tank walls, programmable electronic controls with 7" touch screen, automatic mixer, spring-balanced hinged lid with (4) point reinforced locking system, USB connection, adjustable feet, stainless steel construction, 4.3 PSI, IPX5, cETLus, ETL-Sanitation
