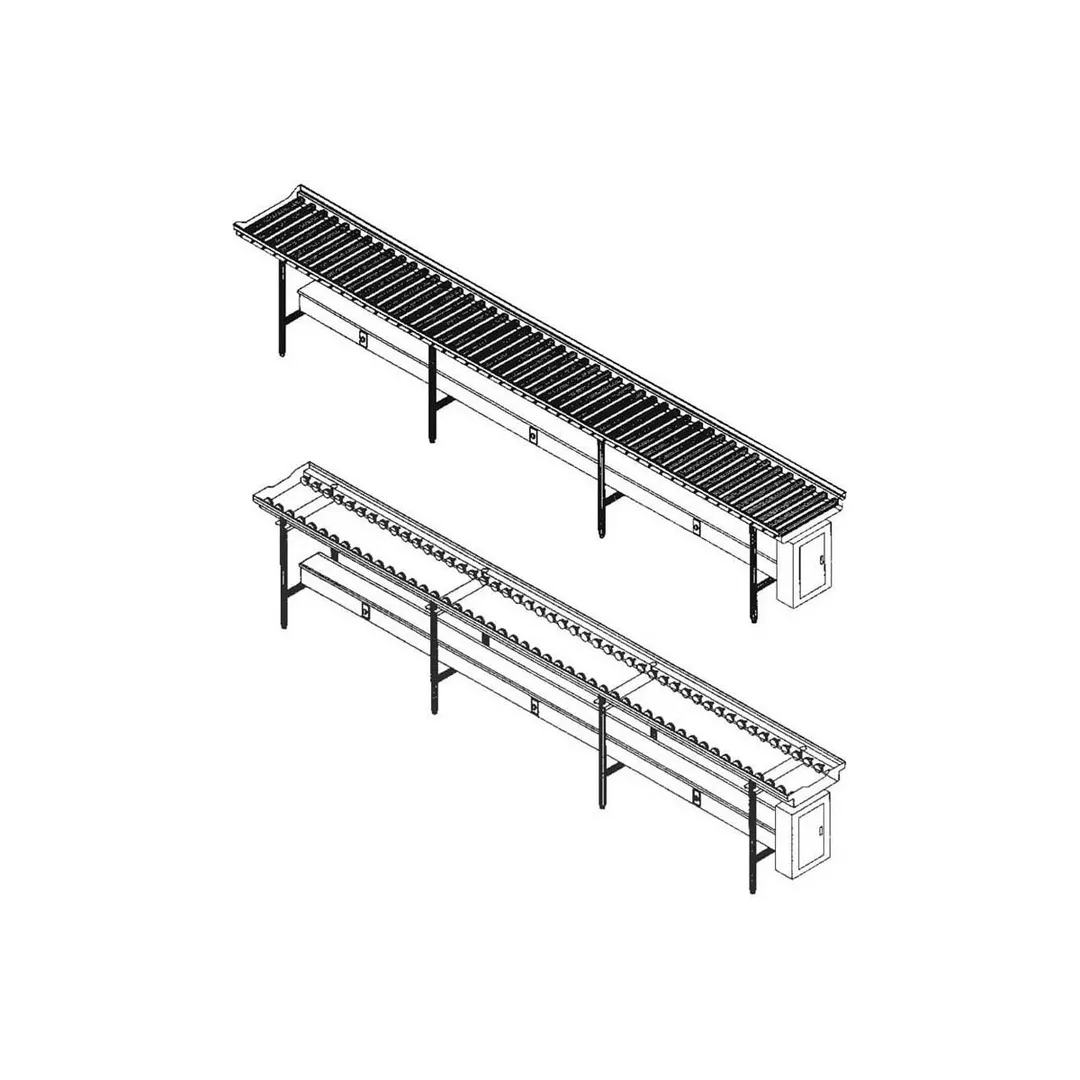

Piper Products SSC-16 Stainless Steel Nylon-Rollers Tray Make-Up Conveyor - 16'L

Why use Piper Products Roller and Skate Wheel?

Roller and Skate Wheel conveyors are designed for tray makeup. These conveyors will help for streamline tray assembly for healthcare or catering operations. Both units can be equipped with an electric raceway and breaker panels for on-line support equipment connections. Roller conveyors will handle compartment or flat bottom trays. Skate Wheel conveyors will handle flat bottom trays only.

Piper Products SSC-16 Standart Features

• Stainless steel frame
• PVC rollers or Nylon rollers
• Stainless steel bullet feet
• Stainless steel "H" frame

Piper Products SSC-16 Construction

Skate Wheel assemblies shall be 2" diameter nylon wheels with low friction bushing for free movement. Wheels are secured to frame with stainless steel bolts with with selflocking nuts. Wheels are spaced 3" to 4" centers and are removable for easy cleaning. Conveyors are supported by a 1-5/8" O.D. 16 gauge stainless steel tubular legs. Stainless steel tubing fits into stainless steel sleeves welded to conveyor frame. Legs are secured to sleeves with allen head set screws. Conveyors come standard with adjustable stainless bullet feet.
