Winholt FLRTRGH-1824H4-14GA Floor Trough Drain

SKU WNH-FLRTRGH-1824H4-14GA

Winholt FLRTRGH-1824H4-14GA Floor Trough Drain

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Winholt FLRTRGH-1824H4-14GA Specs

Manufacturer	Winholt
Model Number	FLRTRGH-1824H4-14GA
Weight	54 lbs
Width	24″
Depth	18″
Height	4″
Width (long side)	13" - 24" (2 ft)
Depth (short side)	18"
Trough Construction	14 ga stainless steel trough
Certifications	NSF

View All Winholt Products >

Description

Reviews

Efficient Waste Management for High‑Traffic Kitchens

Winholt’s 18" × 24" floor trough drain keeps commercial kitchen floors dry and safe, reducing slip hazards and downtime.

Key Features

Dimensions: 18" W × 24" L × 4" H with a 4" deep stainless steel tub.
Construction: 14‑gauge 304 stainless steel, fully welded for durability.

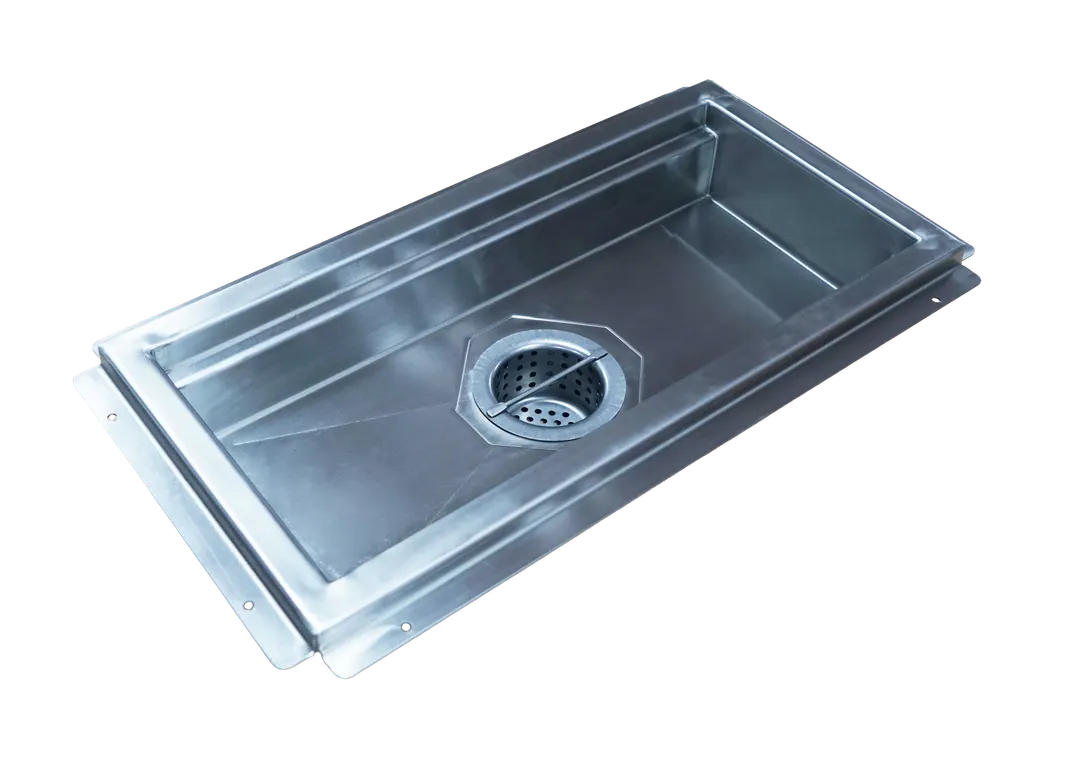

Removable 4" grate and perforated drain basket with handle simplify cleaning and debris capture.

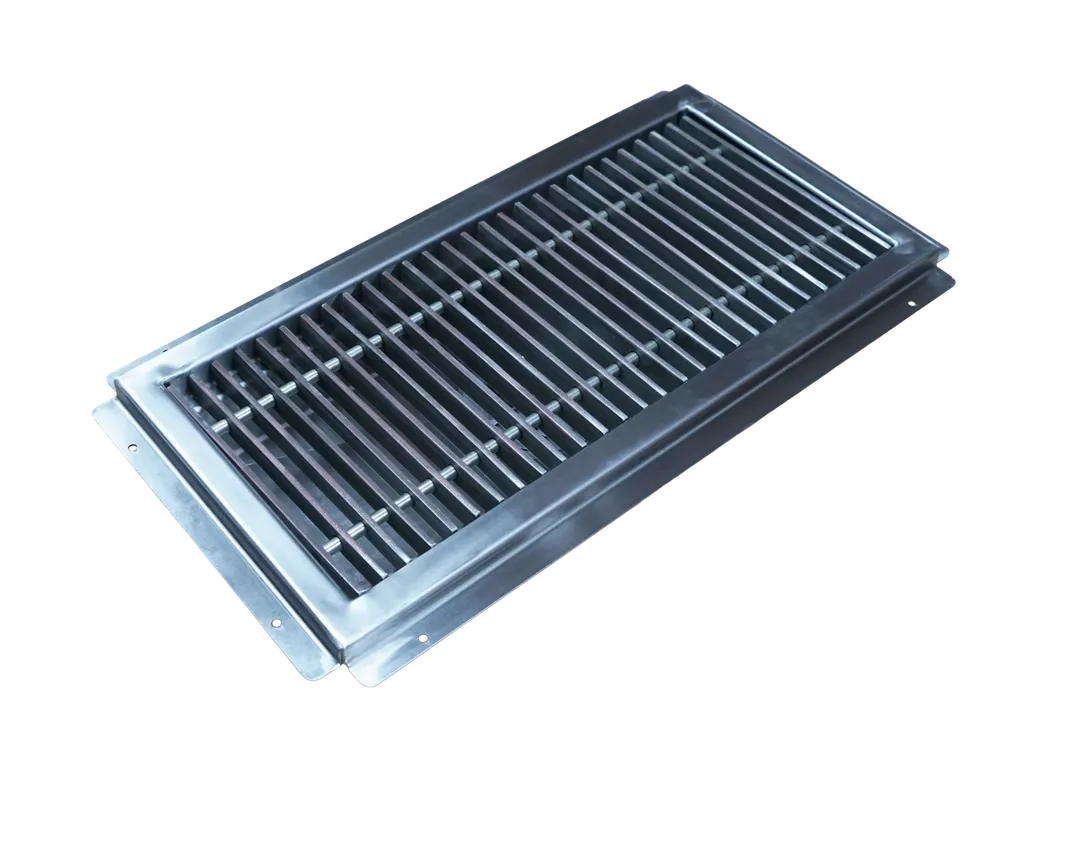

Grating: 3/16" × 1" stainless steel bars spaced 1" apart, pitched toward drain for fast runoff.
Certification: NSF listed, meeting foodservice health and safety standards.

From The Manufacturer

Floor Trough, 18"W x 24"L x 4"H dimensions, 4"D tub with removable grate, 4"drain basket, 14 gauge, stainless steel, NSF

Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.

Compare to Similar ItemsShop All Trough Drains

	Winholt FLRTRGH-1824H4-14GA Floor Trough Drain	Titan Stainless 2FLT-18 Floor Trough Drain	Titan Stainless 2FBFLT-18 Floor Trough Drain	Omcan USA 44612 (44612) Floor Trough, 18" X 18"	IMC Teddy ASFT-1824-CH Asft Anti-Spill Floor Trough, 24"W X 18"D	IMC Teddy ASFT-1824-SGAS Asft Anti-Spill Floor Trough, 24"W X 18"D	IMC Teddy FT-1824-SGAS Ft Floor Trough, 24"W X 18"D, 4" Deep Receptacle
Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Certifications	CertificationsNSF	CertificationsNSF	CertificationsNSF	CertificationsNSF	CertificationsMade in USA, NSF	CertificationsMade in USA, NSF	CertificationsMade in USA, NSF
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)20.13	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)24
Manufacturer	ManufacturerWinholt	ManufacturerTitan Stainless	ManufacturerTitan Stainless	ManufacturerOmcan USA	ManufacturerIMC Teddy	ManufacturerIMC Teddy	ManufacturerIMC Teddy
Features	Features-	Features-	Features-	Features-	Features-	Featuresanti-slip / non-slip surface	Featuresanti-slip / non-slip surface
Width (long side)	Width (long side)13" - 24" (2 ft)	Width (long side)13" - 24" (2 ft)	Width (long side)13" - 24" (2 ft)	Width (long side)13" - 24" (2 ft)	Width (long side)13" - 24" (2 ft)	Width (long side)13" - 24" (2 ft)	Width (long side)13" - 24" (2 ft)
Grate Type	Grate Type-	Grate Type-	Grate Type-	Grate Type-	Grate Type-	Grate Typesubway-style grating	Grate Typesubway-style grating
Grate Construction	Grate Construction-	Grate Constructionstainless steel grates	Grate Constructionfiberglass grates	Grate Constructionstainless steel grates	Grate Construction-	Grate Constructionstainless steel grates	Grate Constructionstainless steel grates
Depth (short side)	Depth (short side)18"	Depth (short side)18"	Depth (short side)18"	Depth (short side)18"	Depth (short side)18"	Depth (short side)18"	Depth (short side)18"
Trough Construction	Trough Construction14 ga stainless steel trough	Trough Construction14 ga stainless steel trough	Trough Construction14 ga stainless steel trough	Trough Construction14 ga stainless steel trough	Trough Construction14 ga stainless steel trough	Trough Construction14 ga stainless steel trough	Trough Construction14 ga stainless steel trough
Pan Type	Pan Type-	Pan Type-	Pan Type-	Pan Type-	Pan Typeanti-splash	Pan Typeanti-splash	Pan Typenon anti-splash
Deep (pan depth)	Deep (pan depth)-	Deep (pan depth)-	Deep (pan depth)-	Deep (pan depth)4"	Deep (pan depth)6"	Deep (pan depth)6"	Deep (pan depth)4"
