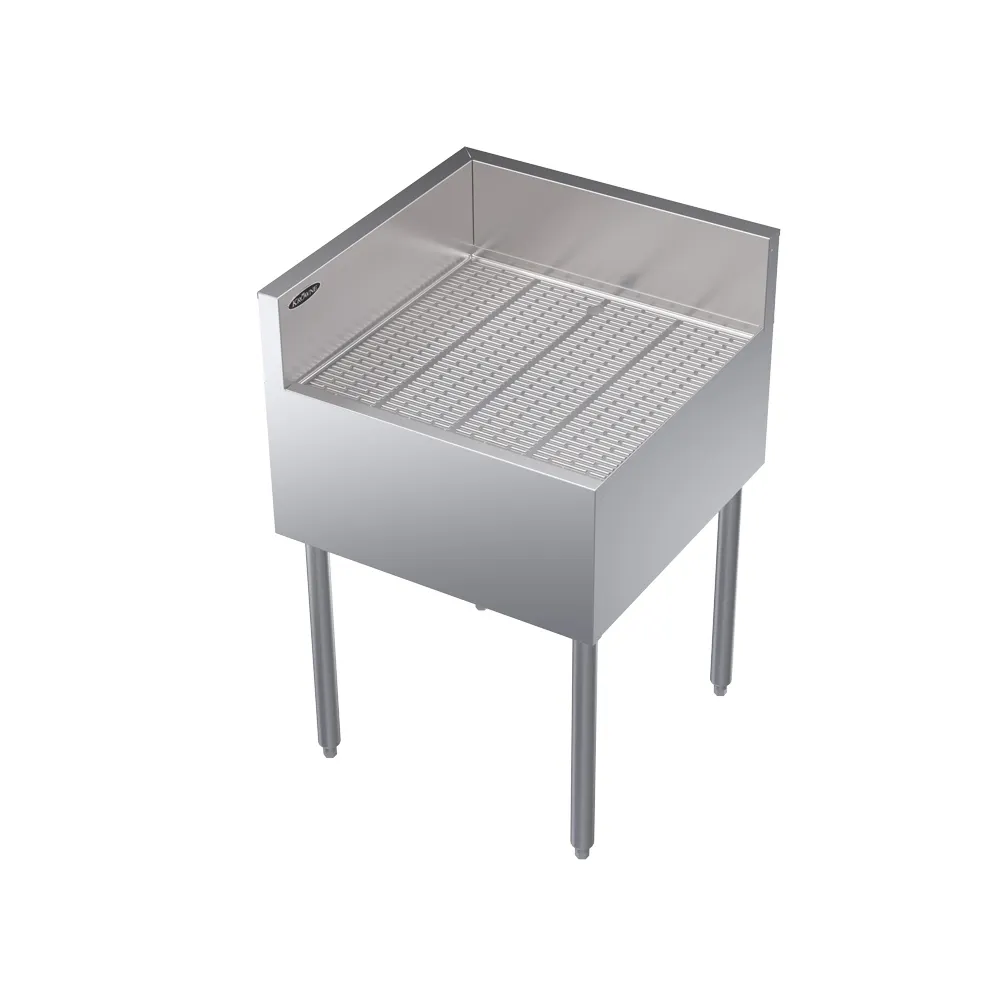

Name: Krowne KR24-C24L 24" Underbar Drainboard
Brand: Krowne
SKU: KRO-KR24-C24L
Price: 1104.4 USD
Availability: InStock

Krowne KR24-C24L Royal Series 24" Corner Drainboard with Left Return

Krowne KR24-C24L Features And Specifications

Drainboard :20 gauge embossed stainless steel reinforced with welded braces every 6 inches. 3/4” radius on all vertical and horizontal edges
Front Apron :20 gauge stainless steel clad over 20 gauge galvanized steel
Sides :20 gauge stainless steel
Backsplash :20 gauge stainless steel
Back and Bottom :20 gauge stainless steel
Legs:1 5/8” tubular 16 gauge stainless steel with grey plastic bullet foot
Plumbing : 1” IPS drain connection
Overall Length :24”
Left Side to Drain :20”
Depth :24”
Back Side to Drain :11-1/2”
Return End : Right
Weight (lbs.) :57

From The Manufacturer

Royal Series Underbar Corner Drainboard, free standing, 24"W x 24"D x 36-1/2"H O.A., left end return, embossed top with 1" drain, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF

Manufacturer	Krowne
Model Number	KR24-C24L
Weight	57 lbs
Width	24″
Depth	24″
Height	36.5″
Drainboard & Filler Board Type	drainboards
Type	free standing, corner drainboard
Design	left inside corner
Working Height	30"
Base Type	open base
Construction	stainless steel construction
Width (side - side) OA	19" - 24"
Depth (front - back) OA	24" - 27"
Splash	6"
Drainboard Depth	21"
