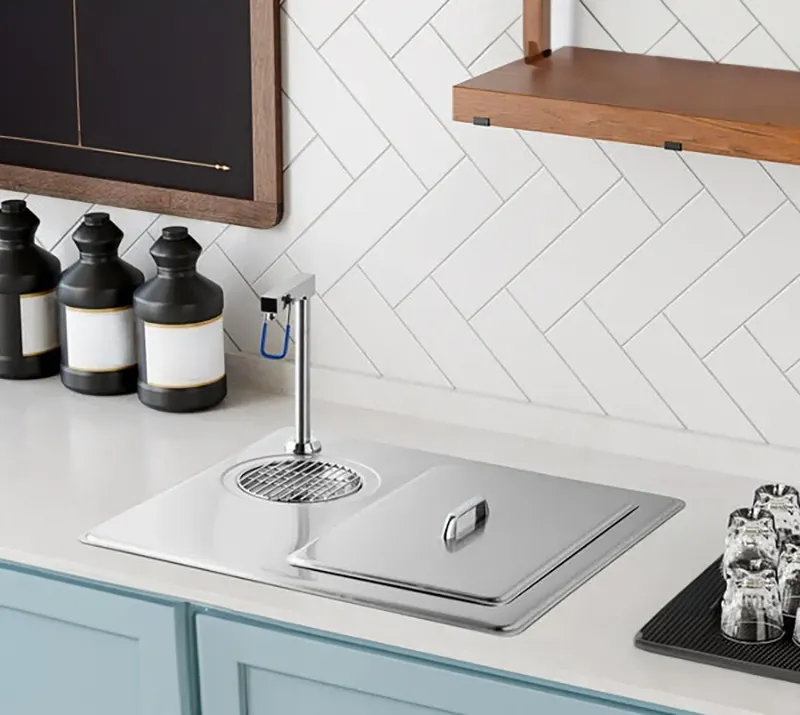

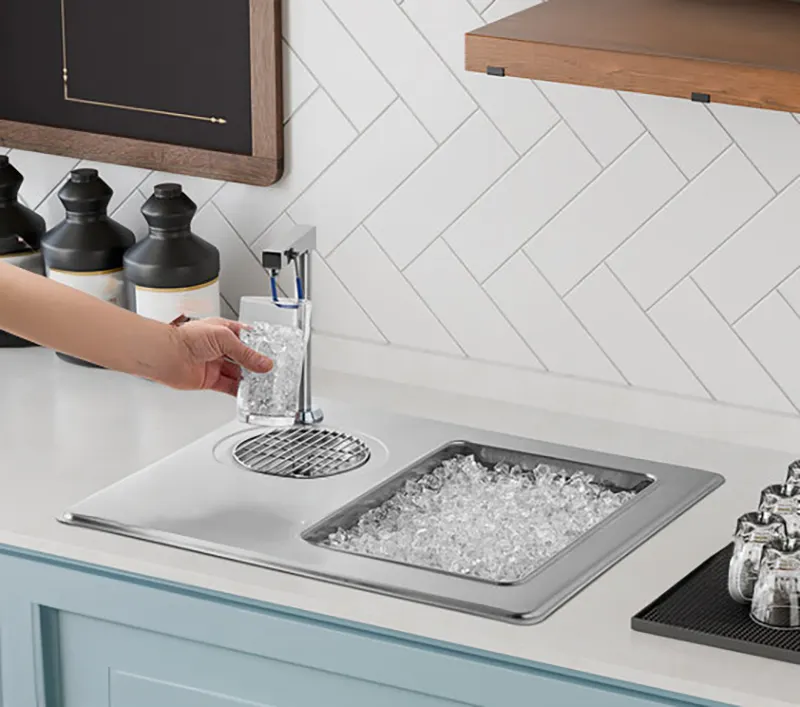

The Delfield 204 Drop-In Water And Ice Station
Why Use Delfield's Drop-In?
Safety and Sanitation
UL and NSF - All Delfield Drop-in products are UL approved and NSF certified. Which means you can count on safe, consistent construction and performance every time.
Convenience
Delfield Drop-in products are easy to install into any new or existing counter. A press fit flange gasket comes pre-installed making the units ready to drop-in immediately.
Quality
Delfield Drop-in products have an unmatched level of quality. The units are reliably built by the best in the industry and come standard with a 90-day labor and 1-year parts warranty
Construction
Delfield Drop-in products are constructed with stainless steel tops and
interiors. Cold units are insulated with high-density polyurethane foam
and hot units are insulated with fiberglass.
Refrigeration lines are secured to the liner with stainless steel spot
clips and thermal transfer compound is applied to improve heat transferred
cool the food product better.
Delfield 204 Standart Features
- High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam throughout unit
- Top is 18-gauge stainless steel with raised die stamped opening

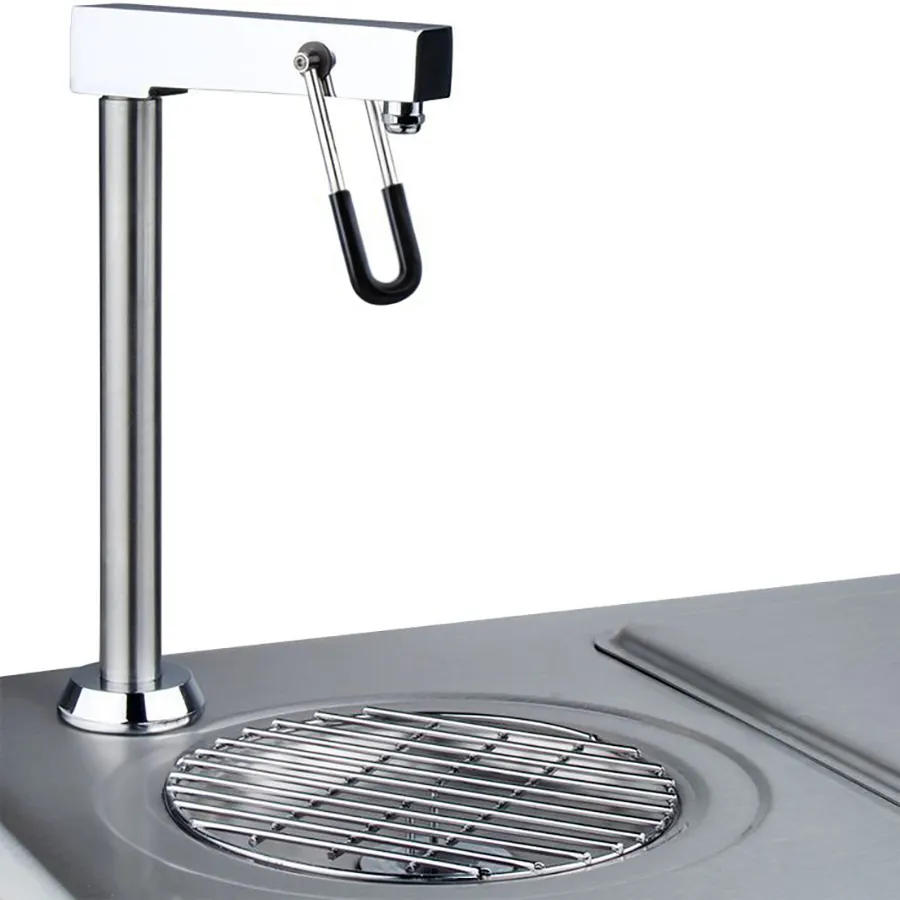

- 204: Water and ice station with glass filler

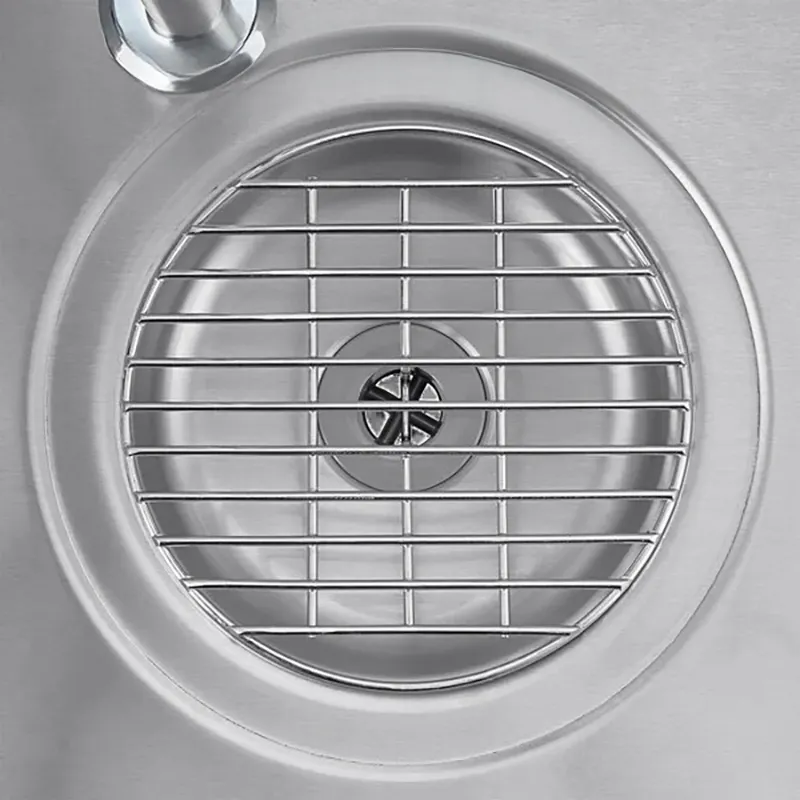

- Chrome plated wire strainer
- Glass filler is 9.5” high
- Pitcher filler is 13.5” high
- One-piece 20-gauge stainless steel lift-off cover with handle
- Liner of ice bin is high-impact ABS plastic with coved corners
- 1” diameter drain plumbed out the bottom
- Exterior tank is made of galvanized steel
Delfield 204 Specification
- Top is 18-gauge stainless steel, has 1.37” (3 cm) overhang all around. Glass filler is 9.5” (24 cm) high, over die-stamped drain opening fitted with chrome-plated wire strainer. Pitcher filler is 13.5” (34 cm) high, over die-stamped drain opening fitted with chrome-plated wire strainer. Ice bin opening is die-stamped with .19” (5 mm) raised edges, measures 15.12” x 10.5” (38 cm x 27 cm), has one-piece 20-gauge stainless steel lift-off cover.
- Liner of ice bin is high-impact ABS plastic, has rounded corners and is pitched to 1” (25 mm) diameter drain. Bin is insulated all around with high-density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Ice bin holds 45 pounds of ice.
- Exterior body is 24-gauge galvanized steel.
- Cutout dimensions are 21” (53 cm) x 17.75” (45 cm).
