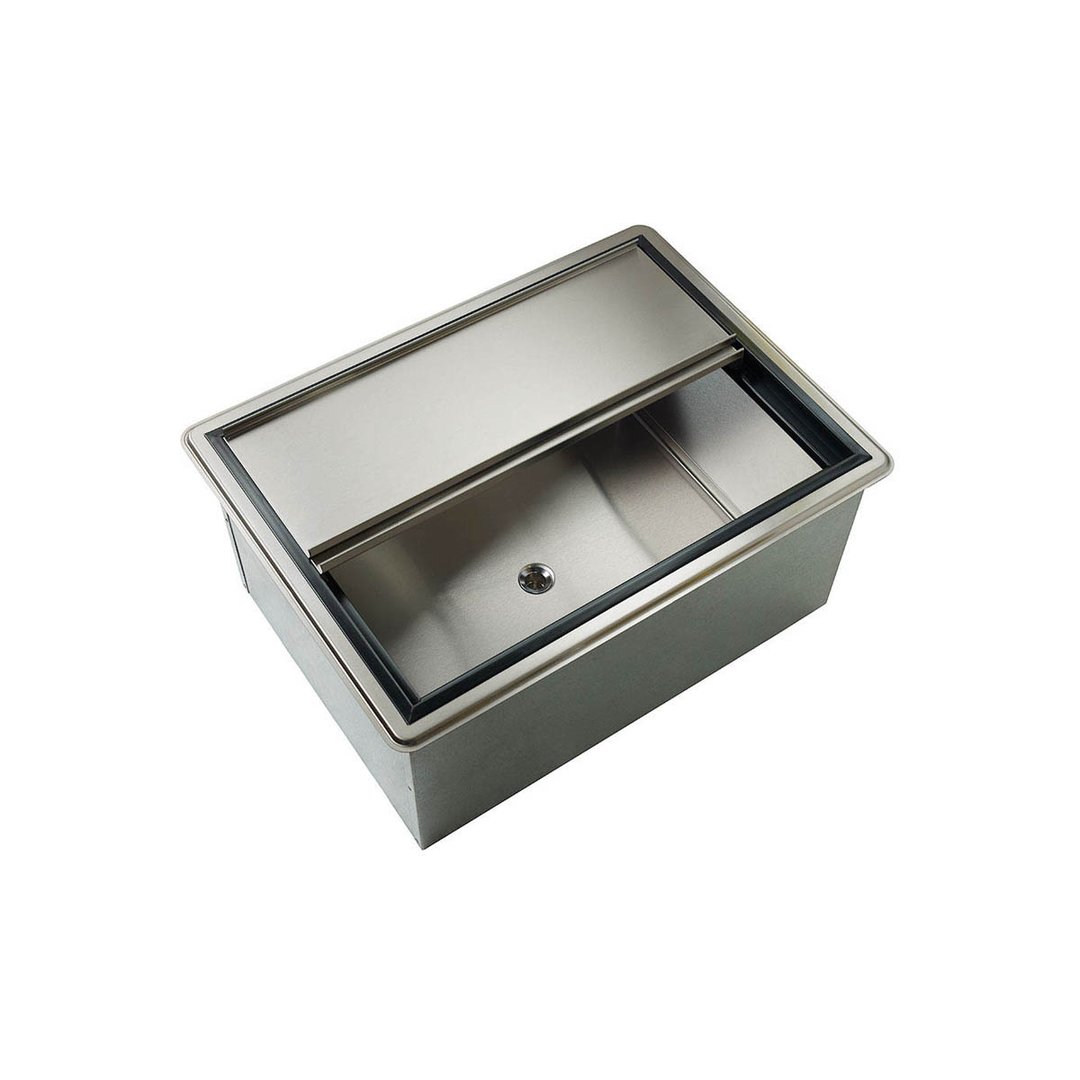

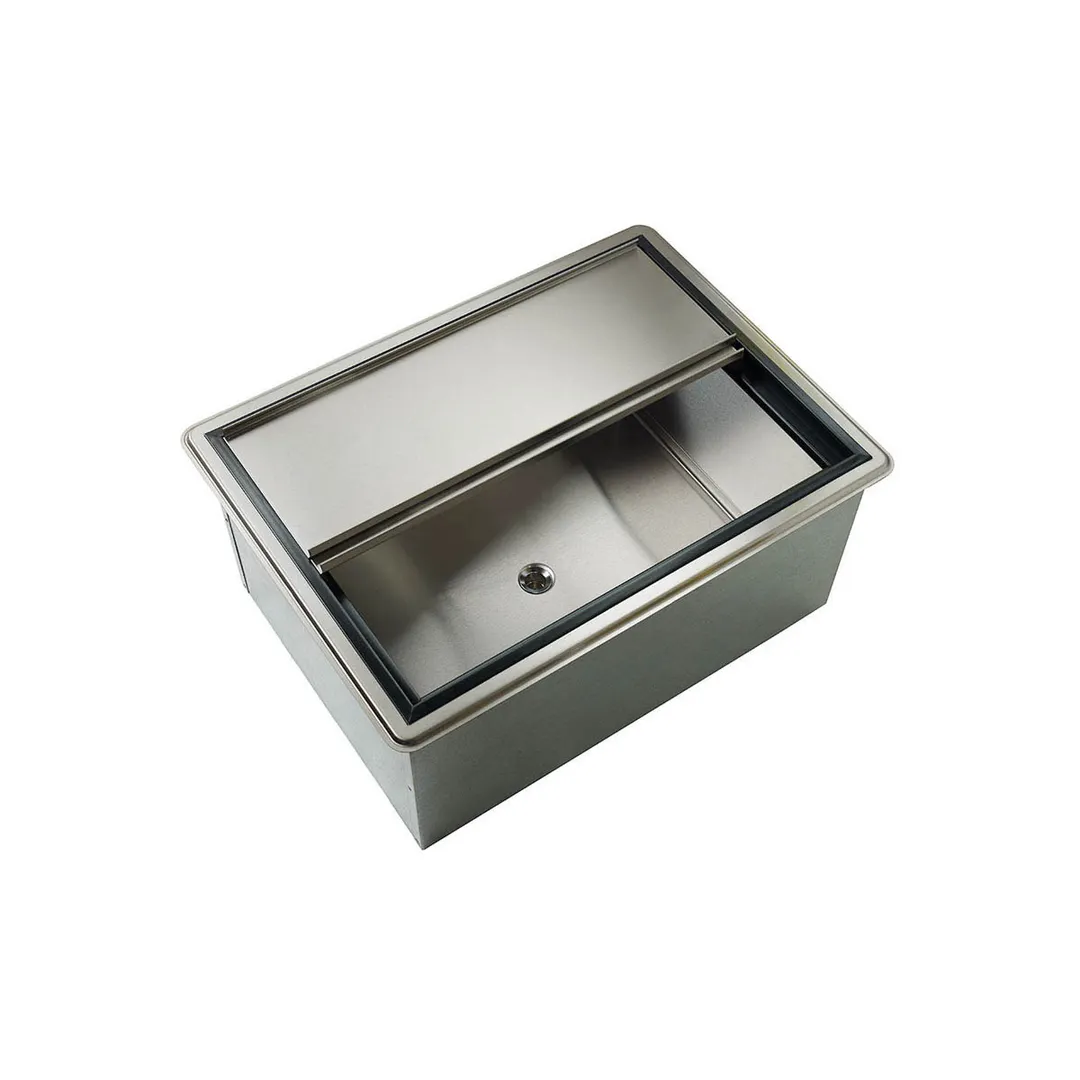

Name: Krowne D2712 27" Drop-In Ice Bin, 73 Lb Capacity, 10" Deep Stainless Steel Liner
Brand: Krowne
SKU: KRO-D2712
Price: 739.12 USD
Availability: InStock

Krowne D2712 Large Drop-In Ice Bin with 7-Circuit Cold Plate

Krowne D2712 Features

Ice Bin Interior: 20 gauge stainless steel
Cold Plate: Cast aluminum post mix cold plate with seven circuits. Each circuit is 5/16” OD stainless steel tubing. Two full with remainder to be half circuits. Bump and swedge fittings on ends. (optional 10 circuit available)
Sliding Cover: Two piece 20 gauge stainless steel
Plumbing: Cold Plate: 1/2” IPS drain connection, No Cold Plate: 1” IPS drain connection

Krowne D2712 Specifications

Size: 27" L X 20" W
Liner Depth: 10"
Overall Depth: 12"
Cold Plate Circuit: N/A
Ice Capacity (lbs.): 73
Cutout Size: 25 1/4” x 18 1/4”
Weight (lbs.): 60

From The Manufacturer

Krowne Ice Bin, drop-in, 27"W x 20"D O.A., 73 lbs ice capacity, 10" deep stainless steel liner, fully insulated, stainless steel top, includes stainless steel sliding cover, NSF (25-1/4" x 18-1/4" cutout required) (available with a cold plate – see D2712-7)

Manufacturer	Krowne
Model Number	D2712
Weight	60 lbs
Depth	20″
Height	12″
Width	27″
Construction	stainless steel
Ice Capacity	70 - 99 lbs.
Cover	sliding cover
Cold Plate	without
Splash	without backsplash
Ice Capacity (approximate)	73 lbs.
Ice Bins and Cocktail Bins Type	drop in
