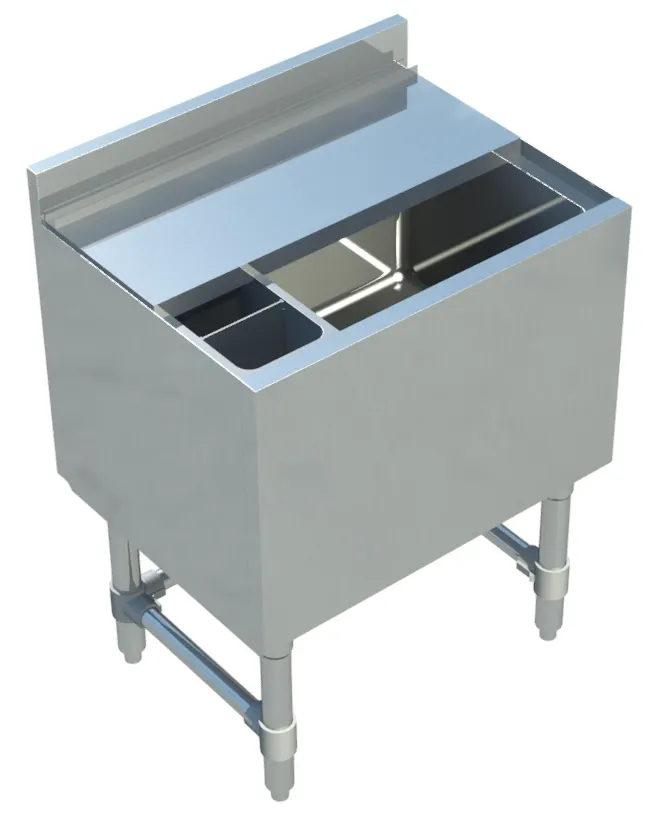

The Sapphire Manufacturing SMIB-1824CP7 Ice Bin With Cold Plate
The Sapphire Manufacturing SMIB-1824CP7 Features
- Ice bin has coved corners with 3/4" radius and insulated with polyurethane foam.
- Top is fabricated with 1-3/16" flat front edge, flat edge on both ends and 7/8" flat top with 4" backsplash.
- Post mix/aluminum cold plate with stainless steel tubing circuits.
- Two piece 18 gauge sliding lid included.
- All exposed welded areas smooth polished to brush finish sanitary #4.
- (4) Galvanized steel legs with 1" adjustable bullet feet.
- Welded galvanized steel leg sockets with two point leg fastening.
- Adjustable galvanized steel cross-bars with aluminum die cast fittings to secure cross-bars to legs for added stability.
- 13/16" drain-pipe.
- Interior plastic bottle holder included.
- Carton box packing.
- All units shipped K.D., but easily assembled.
The Sapphire Manufacturing SMIB-1824CP7 Material
- Top & Ice Bin:18 Ga. Stainless Steel - 304
- Exterior Bottom & Rear:18 Ga. Stainless Steel - 304
- Apron Front & Two Sides:18 Ga. Stainless Steel - 304
- Sliding Lid:18 Ga. Stainless Steel - 304
- Leg:1-5/8" Galvanized Steel Tubing
- Cross-bar:1-1/4" Galvanized Steel Tubing
- Leg Socket:Galvanized Steel
- Bullet Feet:Plastic (1" Adjustable)
From The Manufacturer
Underbar Ice Bin, 12" D insulated cabin, 24"L x 18-1/2"D x 33”H, 30" working height, (2) piece sliding lid & (7) stainless steel tubing circuits, 18ga 304 stainless steel body, galvanized steel legs with adjustable side & rear bracing and 1" adjustable plastic bullet feet, interior plastic bottle holder & 13/16" drain included, shipped KD, but easily assembled. NSF
