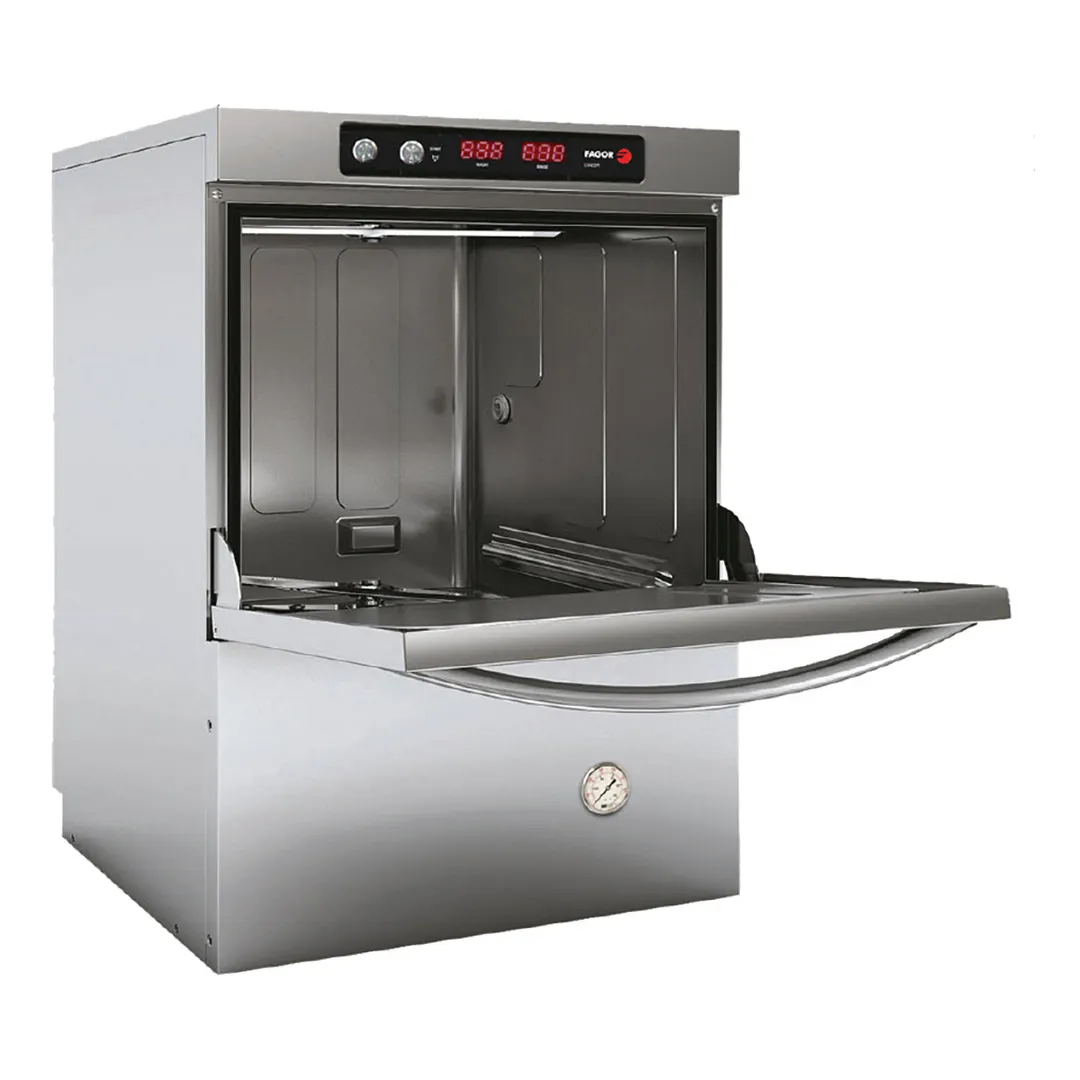

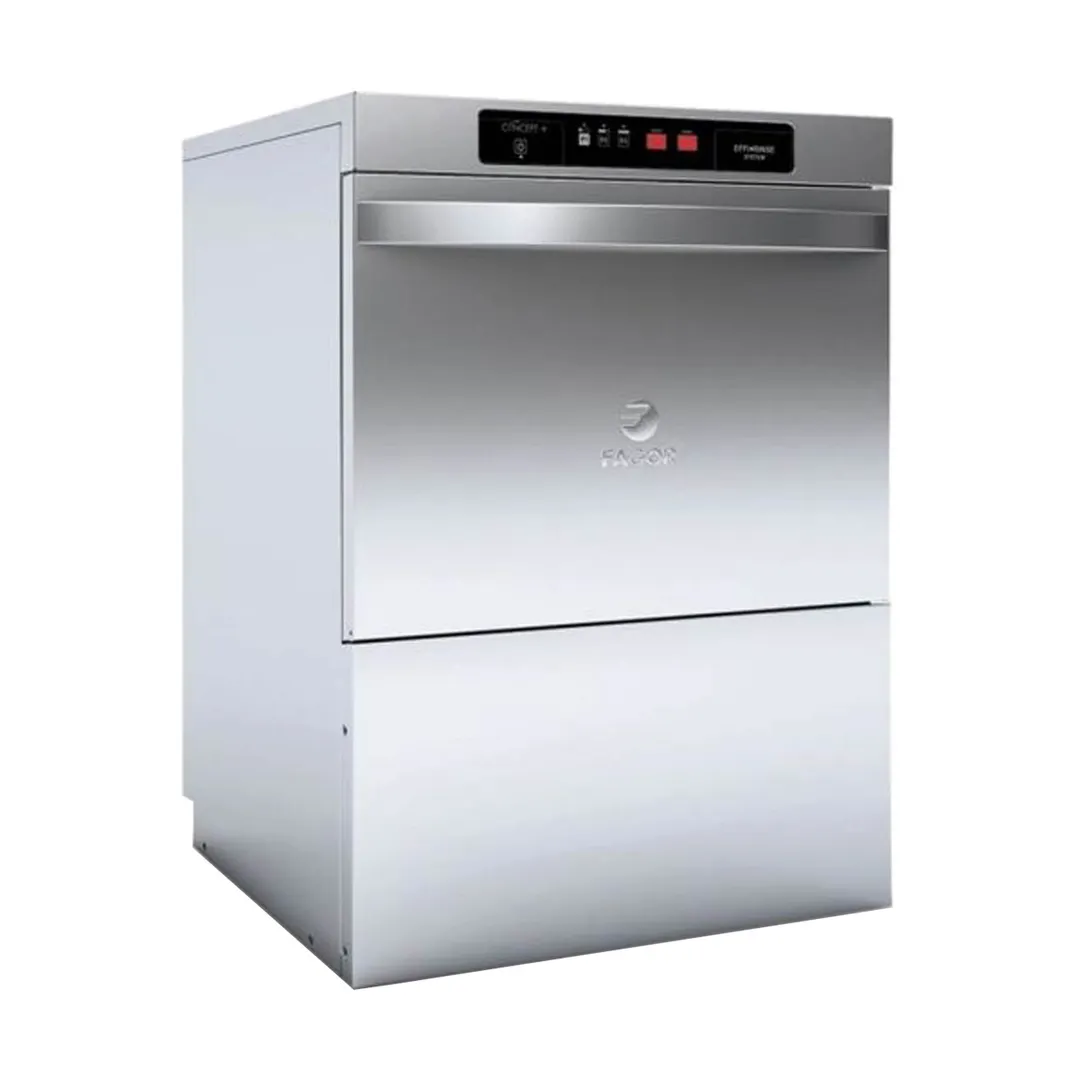

Fagor CO-500W EVO CONCEPT 23" Undercounter Dishwasher,30 Racks/Hr-16 Gal/Hr-High Temp w/Booster

The Fagor CO-500W is a reliable and efficient solution designed to meet the rigorous dishwashing demands of restaurant kitchens, bars, and other foodservice establishments. This Fagor undercounter dishwasher integrates the benefits of a larger unit into a compact yet heavy-duty design. While its 32.75-inch (83.19 cm) height snugly fits under any counter, it occupies a minimal footprint with 23.63-inch (60.02 cm) width and depth. Despite these small dimensions, it offers high-temperature cleaning prowess, ensuring 30 racks of spotless dishes, utensils, and glassware per hour.

Type of Fagor CO-500W EVO CONCEPT Undercounter Dishwasher

The Fagor CO-500W undercounter dishwasher is a valuable model in Fagor's EVO Concept Series. This high-temp machine has a built-in booster to sanitize soiled dishes with hot water rather than cleaning chemicals. The booster raises the incoming water temperatures of 120-140°F (48.88-60°C) by 70°F (21.11°C). You can effortlessly adapt the dishwasher as a glasswasher or sanitizer whenever needed.

Fagor CO-500W EVO CONCEPT's Build Quality

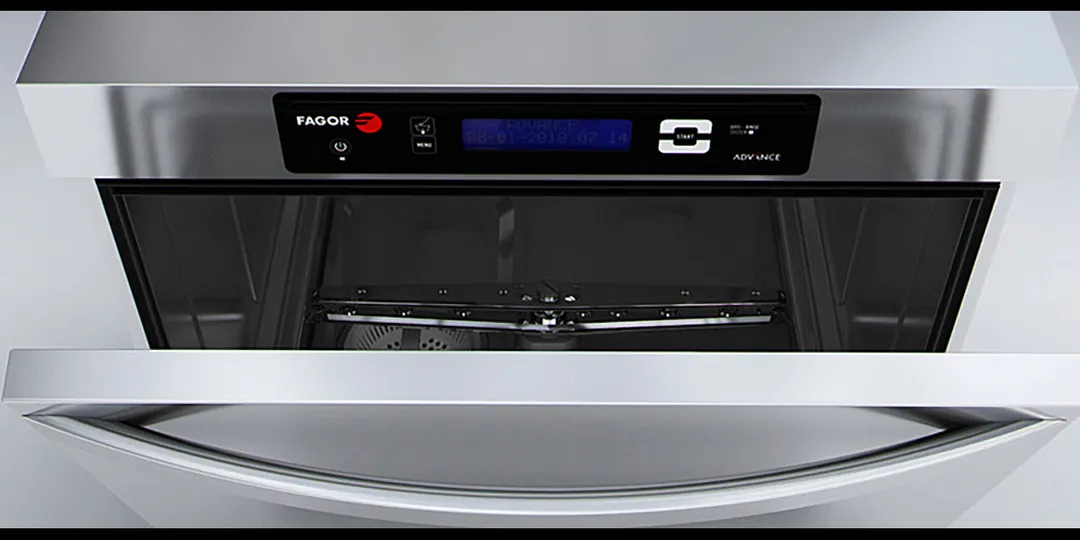

Fagor CO-500W is constructed from commercial-grade AISI 304 stainless steel. The double-skin stamped design increases the strength of the body, wash tank, rack guides, control panel, wash/rinse arms, and tray filters against corrosion and heavy-duty use. The rock counterbalanced door is supported with a double-spring and stainless steel hinge system to withstand wear over extended use. The digital control panel is IPX-certified for extra protection against external humidity and sprayed cleaning of the machine's exterior.

Fagor CO-500W Dishwasher’s Smart Features

Fagor CO-500W is equipped with some smart features to facilitate the dishwashing process and maintain high hygiene standards.

• Wash: An optimized hydraulic system delivers robust mechanical action using the clean water in the tank. At the same time, carefully balanced power ensures precise sanitation temperatures throughout the washing cycle.
• Effi Silent: A complete double-layered construction adds insulation to both the body and door, reducing noise levels below 65 dB and improving thermal efficiency.
• Soft Start: The wash pump power control in the Fagor CO-500W dishwasher regulates the water flow into the machine. The gradual increase in the water flow level protects the dishes and the machine's internal components from early-cycle damage.
• Hot Water Assurance: This system works with the booster heater to ensure that the rinse cycle won't proceed until the rinse water reaches the desired sanitation temperature of 180°F (82.22°C).

Fagor CO-500W Dishwasher Wash and Rinse Cycles

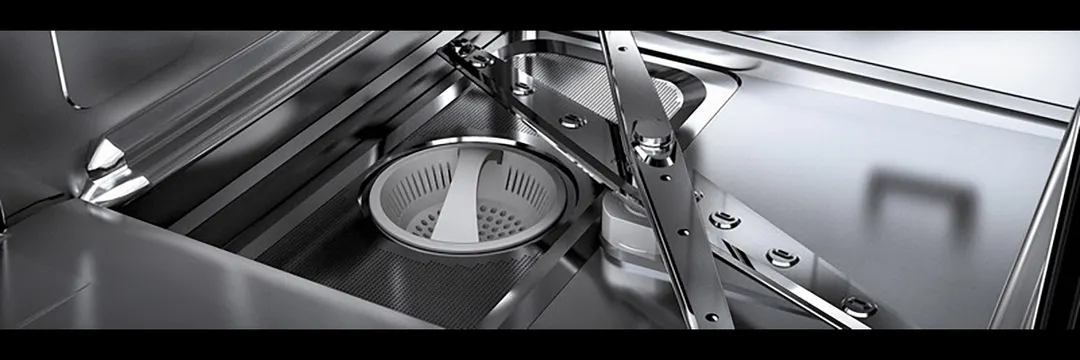

Fagor CO-500W finishes a whole cycle in 120 seconds. It achieves this with interchangeable wash and rinse spray arms and detergent and rinse aid dispensers. A 3/4 HP wash pump water, a 3.05 kW tank heating element, and a 3.05 kW booster heating support the process. The machine's onboard pressure gauge checks that the rinse water pressure remains within the 20-25 psi range.

Fagor CO-500W’s Rack Size Compatibility

Your Fagor CO-500W purchase comes with one 20" by 20" (50.8 x 50.8 cm) peg rack for small-diameter dishes, one 20" by 20" flat rack for large pots, sheet pans, and trays, and one cutlery container. You can easily load large items thanks to its 15.25-inch (38.74 cm.) door opening clearance.

Fagor CO-500W’s Water Consumption and Capacity

Fagor CO-500W 23" Undercounter Dishwasher consumes 0.63 gallons (2.38 liters) of water per cycle, amounting to nearly 16 gallons (60.57 liters) an hour. The wash tank holds 5.40 gallons (20.44 liters) of water.

Fagor CO-500W’s Certifications

The Energy Star-rated and ETL-listed Fagor CO-500W also holds cETLus, CE, and IPX4 certifications.
