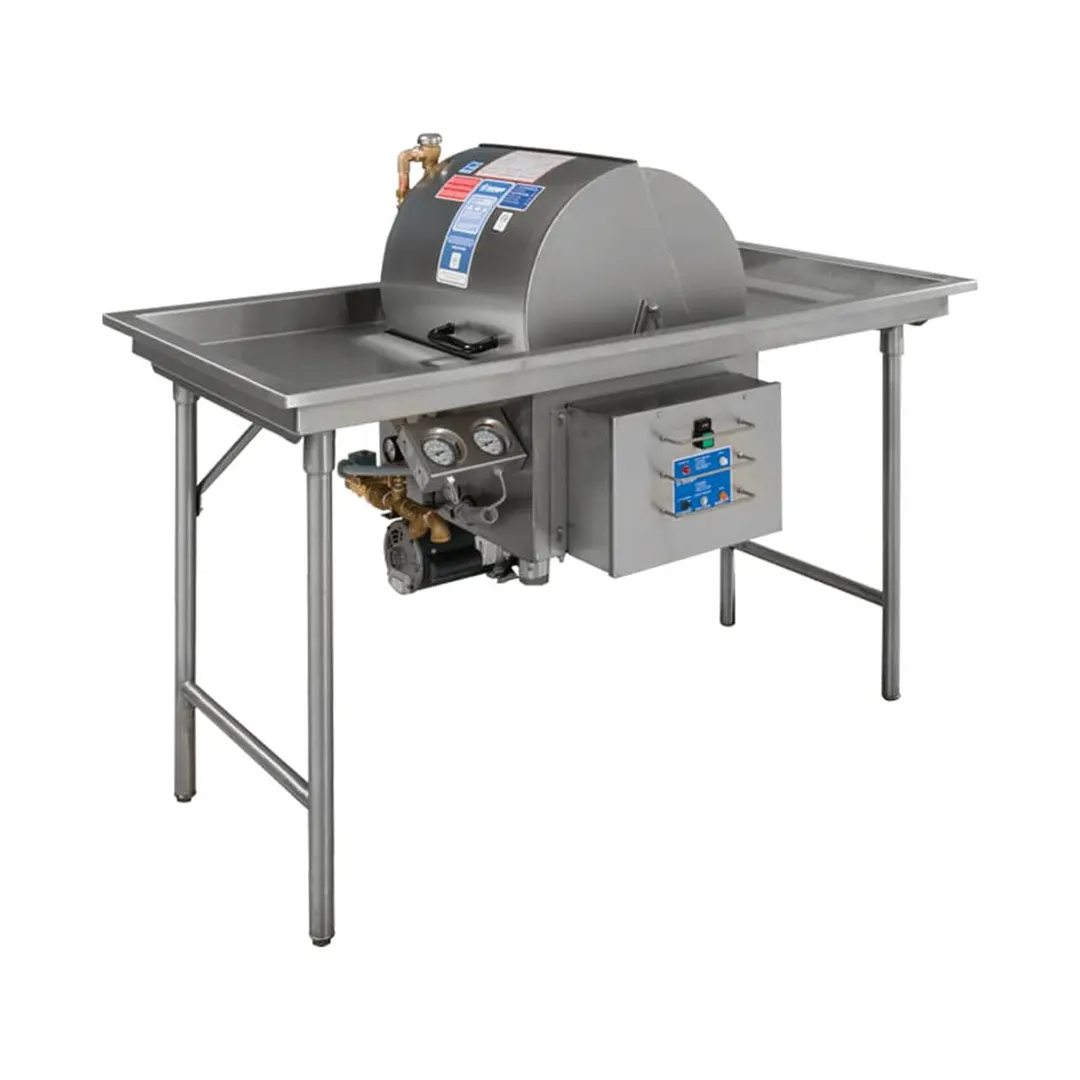

Insinger ENSIGN 40-2 Roll Top Type Dishwasher
Insinger ENSIGN 40-2 Standard Features
- Automatic counter type single tank dishwasher with pass-thru telescoping hood
- 0.75 gallons/rack
- Capacity is 43- 16" x 16" racks per hour or 720 dishes
- No venting required
- A timed wash and rinse cycle
- Fully automatic operation with power on/off button
- Cycle starts when door is closed
- Tank heat: electric immersion heater
- Thermometer for wash
- Thermometer for final rinse
- Vacuum breaker
- Manifold clean-out brush
- Automatic tank fill
- Low water protection
- Detergent connection provision
- Space saving compact design
- Fully automatic operation
- Side mounted control panel (NEMA 12)
- Simplified scrap screen design
- Standard frame drip proof motor
- Door safety switch
- SureFire® Start-Up and Check-Out Service
Insinger ENSIGN 40-2 Specifications
- CONSTRUCTION- Hood and tank constructed of 16 gauge type 304 S/S. Hood unit of all welded seamless construction. All internal castings are non-corrosive lead free nickel alloy or bronze.
- DOORS- Two opening operating doors. Operating doors have fingertip control, rotating on S/S bracket. Doors formed of 18 gauge S/S.
- PUMP- Centrifugal type “packless” pump with a brass petcock drain. Construction includes ceramic seal and a balanced cast impeller on a precision ground stainless steel shaft, extension or sleeve. All working parts mounted as an assembly and removable as a unit without disturbing pump housing. One 1/2 hp motor, standard horizontal C-face frame, drip proof, internally cooled with ball-bearing construction.
- CONTROLS- Side-mounted control cabinet, housing motor controls and overload protection, transformer, contactors and all dishwasher integral controls. All controls safe low voltage 24 VAC.
- SPRAY SYSTEM- Wash and rinse spray systems made of 18-8 type 304 S/S pipe.
- WASH- Power wash arm above with 14 high pressure action cleaning slots and 6 power wash arms below, each designed with 5 high pressure action cleansing slots. The slots are precision milled for water control producing a fan spray. Wash arms are removable without the use of tools.
- FINAL RINSE- 1 spray body above designed with 4 power rinse nozzles and 1 power rinse coil below designed with 6 nozzles
- DRAIN- Overflow assembly with skimmer is removable without use of tools for drain line inspection. Heater protected by low water level controls.
- Shipping Weight : 400 lbs
From The Manufacturer
Ensign Dishwasher, Hood Type, high temperature, no booster, straight-thru design, approximately 43 racks/hour capacity, stainless steel construction, electric or steam tank heat, drop-into table top, 1/2 HP, ETLus, Made In USA
