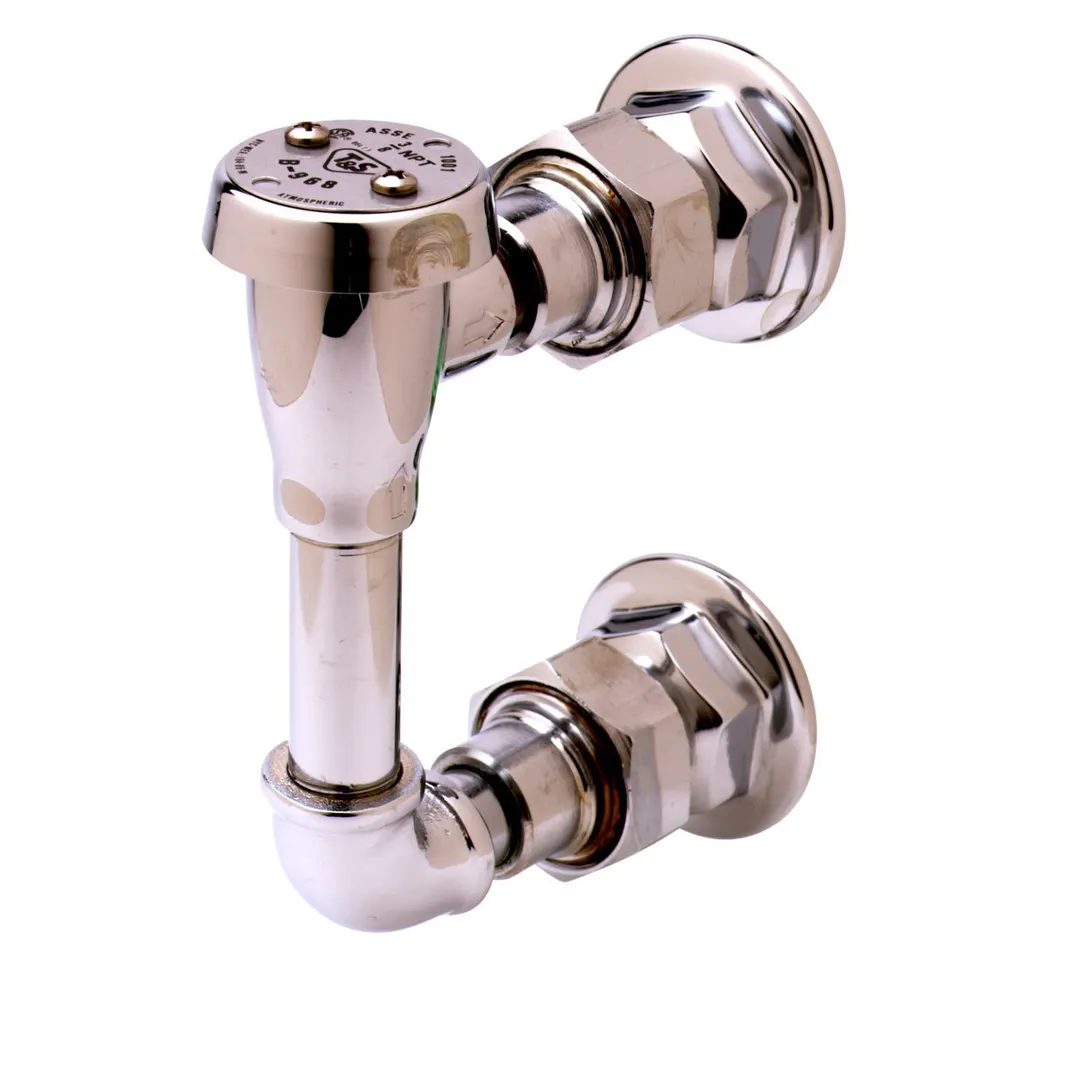

T&S Brass B-0929 Atmospheric Vacuum Breaker
General Info
The B-0929, Wall mount elevated atmospheric vacuum breaker with polished chrome plated brass body, 3/8" NPT female flanged inlet and outlet.
T&S Brass B-0929 Features
- Wall mount elevated atmospheric vacuum breaker
- 3/8" NPT female flanged inlet and outlet
- Material: Polished chrome plated brass
T&S Brass B-0929 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 13.70 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Vacuum Breaker Assembly, all brass, heavily chromium plated, 3/8" IPS flanged female bottom inlet, top outlet with union couplings 3-3/4" centers
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
