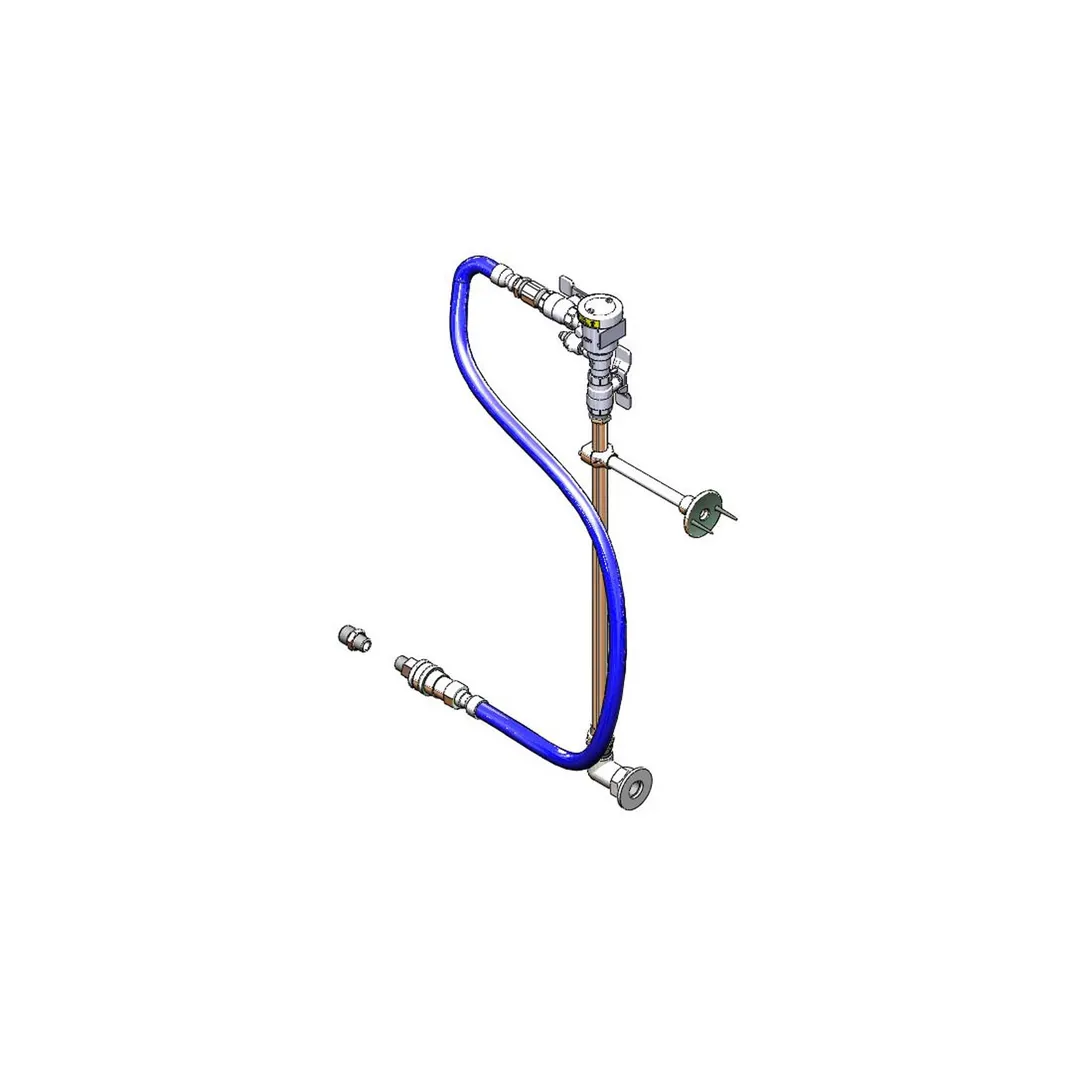

T&S Brass 0RK-SK Hose Reel Connector Kit
General Info
The 0RK-SK, Hose connector kits w/ 1/2" NPT inlet elbow, 3/8" NPT x 18" riser, 6" wall bracket, vacuum breaker with integral check valve, 3/8" NPT x 36" flexible water connector and quick disconnect with 3/8"close nipple. Certified to ASSE 1056.
T&S Brass 0RK-SK Features
- Hose connector kit
- 1/2" NPT inlet swivel elbow and flange
- 3/8" NPT x 18" riser
- 6" wall bracket
- Continous pressure vacuum breaker w/ integral check valve
- 3/8" NPT x 36" flexible water connector
- Stainless steel quick disconnect w/ 3/8" close nipple
- Material: Polished chrome plated brass
T&S Brass 0RK-SK Specifications
- Pressure Min/Max : 20 psi (1.38 bar)/125 psi (8.62 bar)
- Temperature Min/Max: 40 F (4.44℃)/140 F (60℃)
- Connector Type :Water
- Flow Rate : 9.5 GPM (35.96 L/min)
- Box Dimensions : 3.88 x 12.00 x 27.50
- Weight : 7.20 lbs (3.27 kg)
- Other Details : See spec. sheet
From The Manufacturer
Hose Reel Connector Kit, 18" riser, 36" flexible water connector hose, vacuum breaker, stainless steel quick disconnect, 1/2" female NPT elbow, 3/8" NPT, NSF
