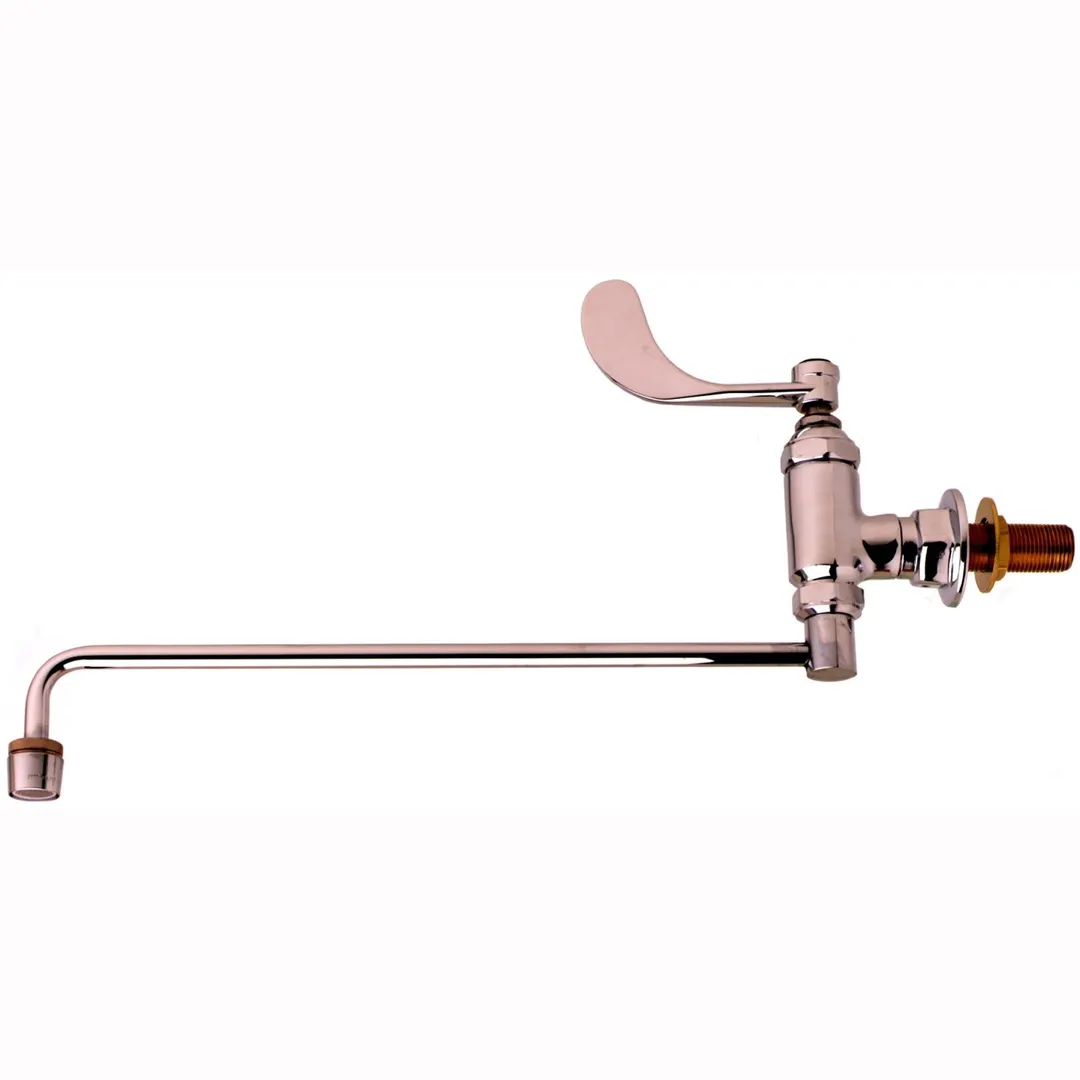

T&S Brass B-0578-01 Chinese Range Faucet
General Info
The B-0578-01, Wall mounted range faucet, polished chrome plated brass body, 13 1/8" swivel nozzle, 2.2 GPM aerator, compression cartridge with spring check, 4" wrist action handle, 1/2" NPT male inlet shank and slip flange.
T&S Brass B-0578-01 Features
- Wall mounted range faucet
- 13 1/8” swivel nozzle below faucet body
- 2.2 GPM aerator, Series 1 (B-0199-01)
- Quarter-turn Eterna compression cartridge w/ spring check
- 4" wrist action handle w/ blue index
- 1/2” NPT male inlet shank w/ Ø2” slip flange
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handle
T&S Brass B-0578-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :2.2 GPM [8.33 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Faucet, Chinese Range, heavy duty, flanged 1/2" NPT male inlet, 4" wrist action handle
