Delfield Work Top Refrigerated Counter
Standard Features
- All 4400 Series units are 100% front breathing, which allows the unit to be pushed against a wall or built into a cabinet, or an existing lineup.
- Durable, rugged stainless-steel sides, top and front
- Features Delfield’s exclusive ABS interior (on sides). ABS is extremely durable – it won’t dent, chip or corrode and is backed by a limited lifetime warranty.
- “D” prefix models feature Delfield’s new drawer system. Drawers are backed by a lifetime warranty on the track assembly.
- Bent in full length handle on doors and drawers.
- Standard on 5” casters for easy cleaning and installation
- One wire shelf standard, installed per door section.
- ACT solid state electronic control
- Environmentally friendly R290 refrigerant
- High density foamed in place, environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane keeps energy costs low.
- 10’ cord and plug supplied
- Three-year parts and labor warranty and a seven-year compressor parts warranty
Specifications
- Exterior top is one-piece, 22-gauge stainless steel with integral 2.12” (5.4cm) square nosing on the front. ST and STD models have standard backsplash, full width and 4” (10cm) tall.
- Exterior back and bottom are two-piece 24-gauge galvanized steel. Exterior ends are stainless steel.
- Interior sides are thermoformed ABS plastic with integral shelf supports. Base is fully insulated with high density foamed in place, environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.
- Refrigeration system uses environmentally friendly R290 refrigerant. Condenser coil and hot gas condensate evaporator mounted on rear of cabinet. Evaporator coil is located on the interior rear wall of cabinet. Refrigerant flow is controlled by a capillary tube. Cabinet maintains an interior temperature of 33°F to 41°F (0°C to 4°C).
- ACT control: ACT electronic, solid-state control, mounted on the exterior rear of the cabinet, allows unit to maintain precise temperatures in heavy duty conditions.
- Electrical connection is 115 volt, 60 Hertz, single phase. Unit has a 10’ (3m) long electrical cord and NEMA 5-15 plug.
- Casters: Equipment is mounted on 5” (13cm) diameter plate casters with front two locking brakes. Equipment clearance above the floor is 2.5” (6cm).
- Drawers have a 22-gauge stainless steel exterior, with thermoformed ABS plastic interior liner. Drawer frames are 12-gauge stainless steel. Drawer slides are 11-gauge stainless steel with Delrin bearings. Top drawer holds one full size 12” x 20”, 4”-6” (30.5cm x 50.8cm x 10.2cm) deep pan, and three 1/6 size pans. Bottom drawer holds one full size 12” x 20” and three 1/6 size, 4” deep pans. Pans are supplied by others.
From The Manufacturer

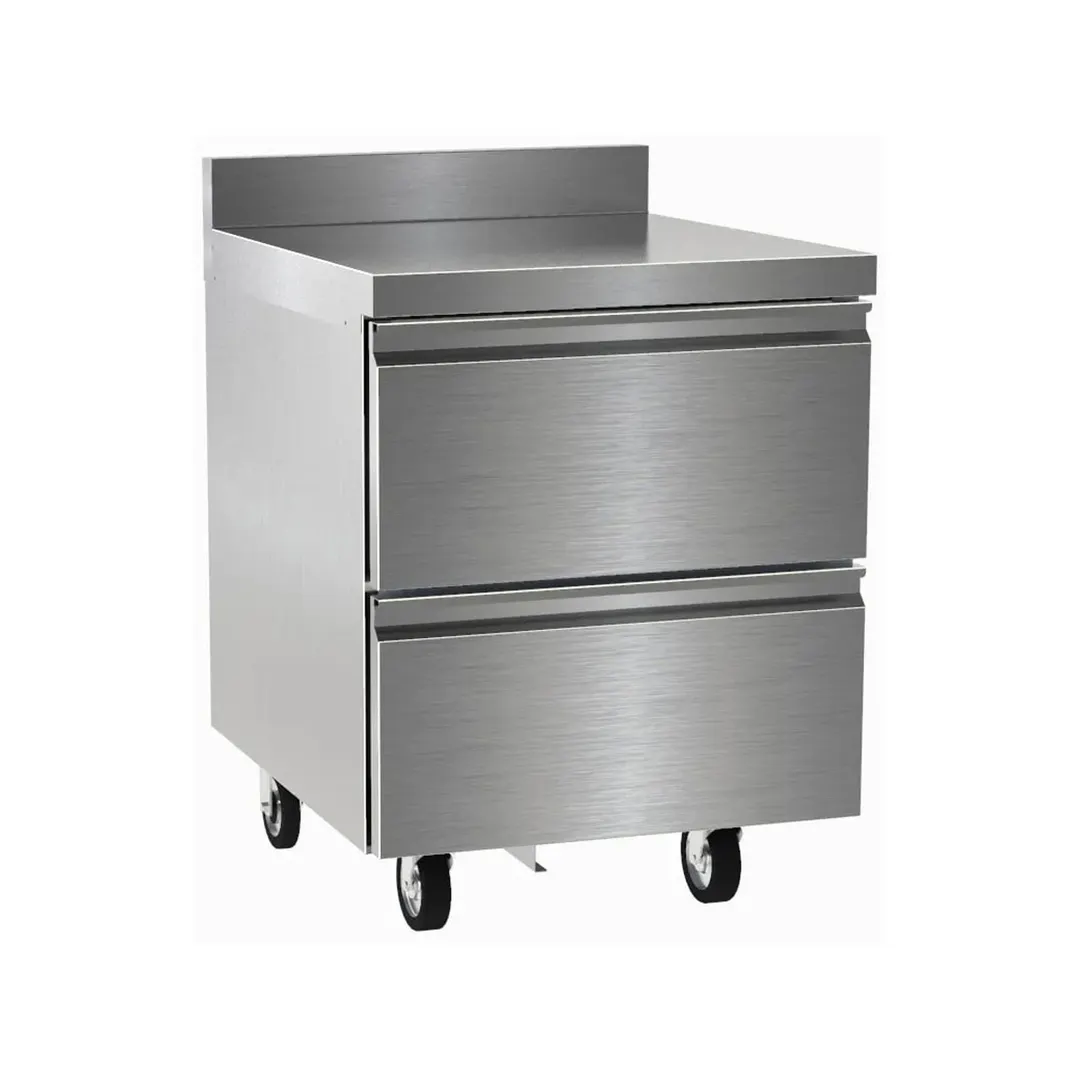

Refrigerated Worktop, one-section, 32"W, (2) drawers, 4" backsplash
