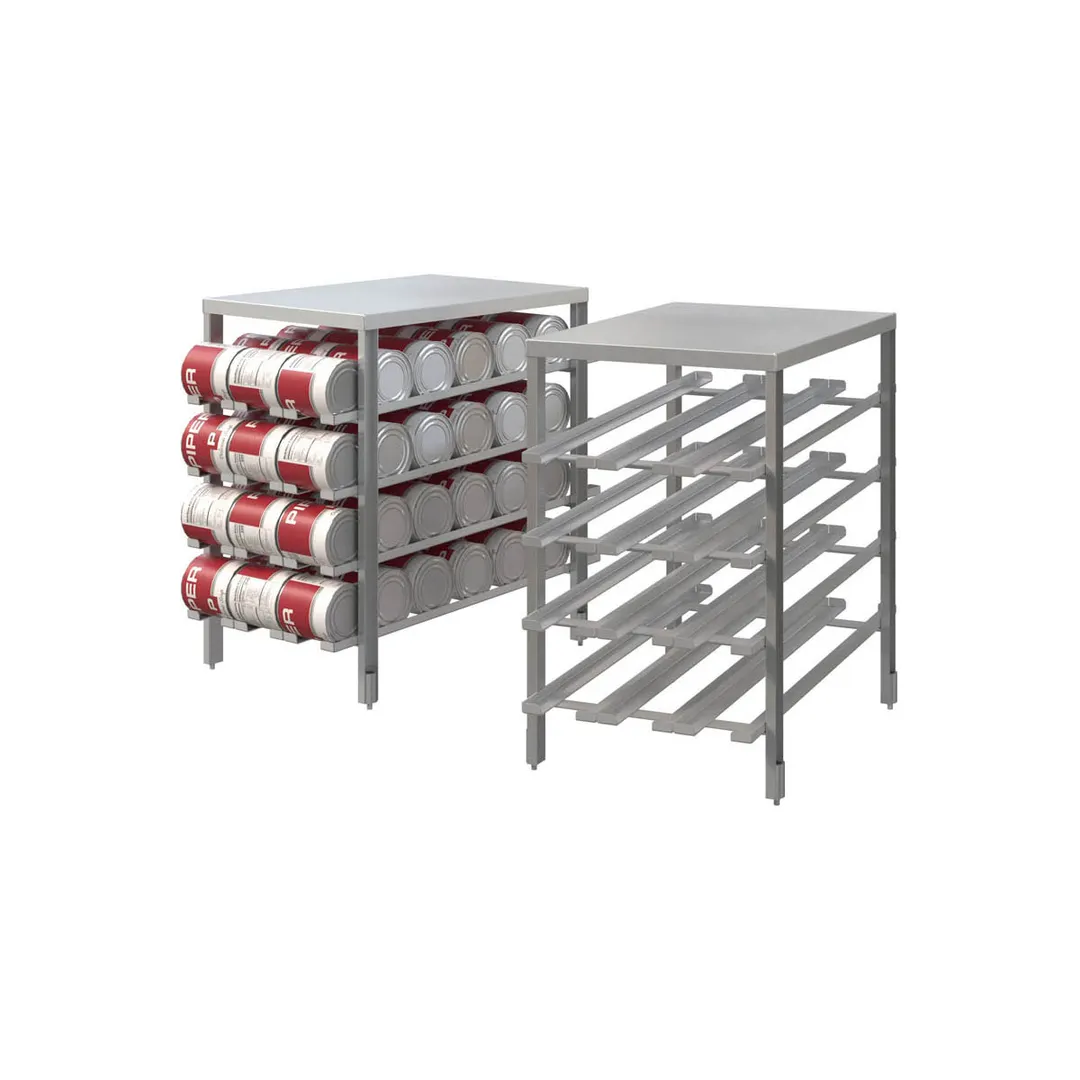

Piper Products CSR-308 Can Storage Racks
Piper Products CSR-308 Specification
Frame
The vertical corner uprights and the top and bottom cross bracing are constructed of all welded 1-1/2" x 1-1/2" x 1/8" thick extruded aluminum angles. The front and rear center uprights are 1-1/2" wide x 1/4" thick aluminum, welded to the top and bottom cross braces.
Guides
The guides are 1" x 2" x 1/8" thick, formed aluminum angles with front and rear edges turned up 1". The guides are welded to the uprights on 7-1/4" centers to accommodate No. 10 cans, with the rear of the guide 1-1/2" higher than the front to allow the cans to roll forward.
CSR-308
The unit is the same as Model CSR-210, except that it is constructed to accommodate No. 5 cans. The guides are set on 5-3/16" centers in lieu of 7-1/4". This unit is loaded from the rear.
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
