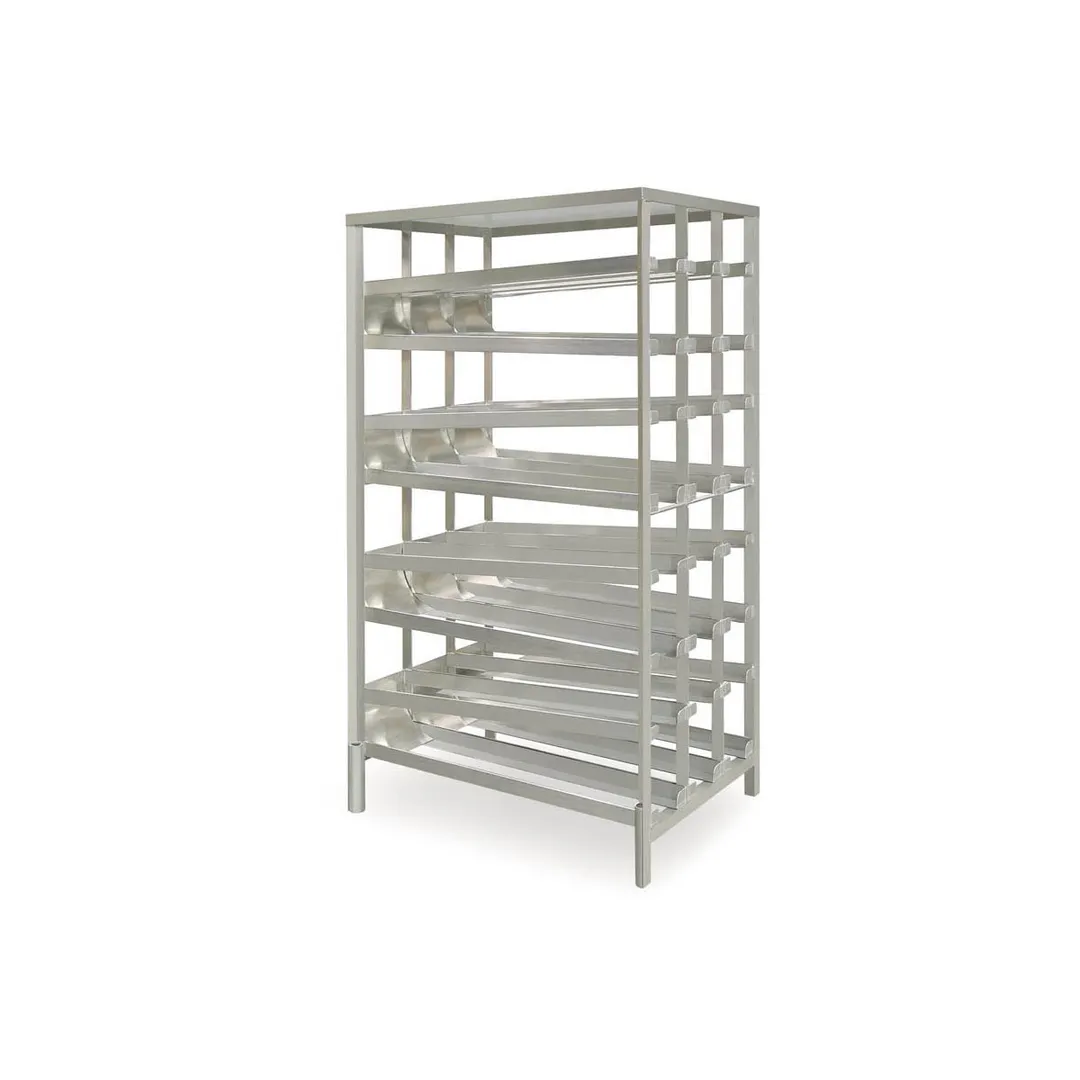

Piper Products CSR-FF-156 Can Storage Racks
Piper Products CSR-FF-156 Specification
Frame
The vertical corner uprights and the top and bottom cross bracing are constructed of all welded 1-1/2" x 1-1/2" x 1/8" thick extruded aluminum angles. The front and rear center uprights are 1-1/2" wide x 1/4" thick aluminum, welded to the top and bottom cross braces.
Guides
The guides are 1" x 2" x 1/8" thick, formed aluminum angles with front and rear edges turned up 1". The guides are welded to the uprights on 7-1/4" centers to accommodate No. 10 cans, with the rear of the guide 1-1/2" higher than the front to allow the cans to roll forward.
CSR-FF-156
The unit is the same as Model CSR-210 except that it is front loading. The loading guides are inclined to the rear, where an aluminum deflector transfers the cans to unloading guides below which are inclined towards the front. Used where installation prevents rear loading.
