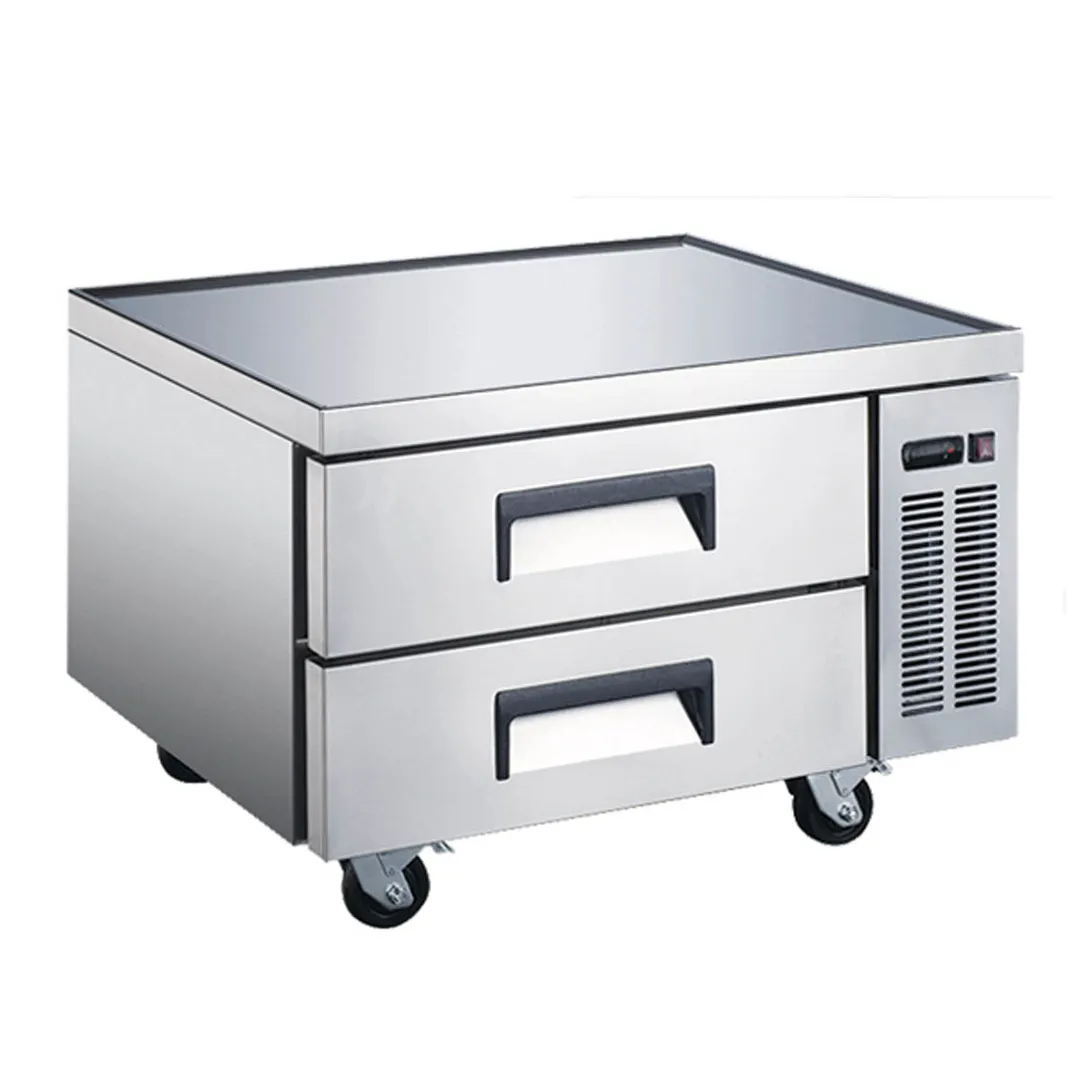

OMCAN REFRIGERATED CHEF BASES WITH DRAWERS

Standard Features:

Electronic control system: Adjustable temperature control and defrost frequency
Standard drawer features: Heavy-duty pull handle, tracks and rollers. Ensuring drawers are easy to open and close while maintaining a quality performance
Standard heavy-duty casters included
Accessible condenser coil for easy service access
Simple installation with no plumbing required
Made of 304 Stainless steel made interior and exterior and a matching aluminum finished back
Easy to clean interior with rounded corners
Constructed with heavy-duty reinforced stainless steel top with drip-resistant “V” edge to avoid spillage
Refrigeration system holds 33°F to 41°F (0.5°C to 5°C) for the best in food preservation

ITEM SPECIFICATIONS:

ITEM NUMBER 50070
MODEL RE-CN-0036-C
NET VOLUME (CU. FT.) 29 cu.ft/ 821 L
NUMBER OF DRAWERS 2
SHELF CAPACITY (EACH DRAWER) GN Pans: (1) Full size — 12”L x 20” W x 4”D & (3) 1/6 size — 6”L x 6”W x 4”d
TEMPERATURE RANGE 33-41°F/ 0.5-5°C
HORSEPOWER 1/6
ELECTRICAL 110V/60Hz/1Ph
RATED CURRENT 2.1A
REFRIGERANT R290
CORD LENGTH 7.4 ft./ 2.25 m
DIMENSIONS (WDH) 36” x 32” x 25”/ 924 x 816 x 644 mm
NET WEIGHT 154 lbs./ 70 kg.
GROSS WEIGHT 198 lbs./ 90 kg.

OMCAN REFRIGERATED CHEF BASES WITH DRAWERS

From The Manufacturer

(RE-CN-0036-C) Refrigerated Chef Base/Equipment Stand, 36" W, 29 cu. ft. (821L), (2) drawers - each holds (1) full size & (3) 1/6 pans, side mount self-contained refrigeration, 33°F to 41°F (0.5°C to 5°C) temperature range, heavy duty casters, 304 stainless steel interior & exterior with aluminum finished back,1/6 Hp, R290 Hydrocarbon refrigerant, cord, NEMA 5-15P, 2.1 amps, 110v/60/1-ph, cETLus, ETL-Sanitation (shipped on pallet)

Manufacturer	Omcan USA
Model Number	50070
Weight	257 lbs
Width	36″
Depth	32″
Height	25″
Base Type	refrigerated
Size	1 section
Drawer Qty	2 drawers
Refrigeration	self-contained, side mounted
Compressor HP	1/6 HP
Exterior Finish	stainless steel & aluminum exterior
Top Finish	stainless steel top
Top Style	marine edge
Certifications	cETLus, ETL-Sanitation
Capacity (Cu. Ft.)	6

	Omcan USA 50070 36" 2 Drawers Refrigerated Chef Base, Side Mounted	Coldline CB36 36" 2 Drawers Refrigerated Chef Base, Marine Edge, 5.9 cu. ft., Stainless Steel Top	Hurakan HKN-CB36R1 D/E/S 36" Chef Base Refrigerator w/ 2 Drawer, 5.9 cu. ft.	Coldline CB52 52" 2 Drawers Refrigerated Chef Base, Marine Edge, 9.9 cu. ft.	Coldline CB48 48" 2 Drawers Refrigerated Chef Base, Marine Edge, 9.6 cu. ft., (4) 1/1 GN pans	Victory CBR36HC 36" 2 Drawers Refrigerated Chef Base, Marine Edge Top, 5.6 Cu Ft. Free Shipping	U-STAR USCB-36 36" 2 Drawers Refrigerated Chef Base w/ V-Edge Top, 5.9 cu. ft. Free Shipping	Omcan USA 50112 48" 2 Drawers Refrigerated Chef Base Marine Edge, 8.5 cu. ft., 115V R290, 1/6 HP	Omcan USA 50071 52" 2 Drawers Refrigerated Chef Base, Side Mounted, (6) full size pans
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Capacity (Cu. Ft.)	Capacity (Cu. Ft.)6	Capacity (Cu. Ft.)5.9	Capacity (Cu. Ft.)5.9	Capacity (Cu. Ft.)9.9	Capacity (Cu. Ft.)9.6	Capacity (Cu. Ft.)5.6	Capacity (Cu. Ft.)6	Capacity (Cu. Ft.)8.5	Capacity (Cu. Ft.)9
Certifications	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	CertificationsETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	Certifications-	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36.38	WIDTH (SIDE - SIDE)36.38	WIDTH (SIDE - SIDE)52.38	WIDTH (SIDE - SIDE)48.4	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36.25	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)52
Manufacturer	ManufacturerOmcan USA	ManufacturerColdline	ManufacturerHurakan	ManufacturerColdline	ManufacturerColdline	ManufacturerVictory	ManufacturerU-STAR	ManufacturerOmcan USA	ManufacturerOmcan USA
Refrigeration	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted
Width	Width25" - 36" wide	Width25" - 36" wide	Width25" - 36" wide	Width49" - 60" wide	Width37" - 48" wide	Width25" - 36" wide	Width25" - 36" wide	Width37" - 48" wide	Width49" - 60" wide
Top Finish	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top
Exterior Finish	Exterior Finishstainless steel & aluminum exterior	Exterior Finishstainless steel & aluminum exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel & aluminum exterior	Exterior Finishstainless steel & aluminum exterior	Exterior Finishgalvanized & stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel & aluminum exterior
Compressor HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/4 HP
Drawer Qty	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers
Base Type	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated
Size	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section
Top Style	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge
Pan Capacity	Pan Capacity -	Pan Capacity (2) 1/1 GN & (6) 1/6 GN	Pan Capacity -	Pan Capacity (6) 1/1 GN	Pan Capacity (4) 1/1 GN	Pan Capacity (4) 12" x 20" x 6"	Pan Capacity -	Pan Capacity -	Pan Capacity -

Manufacturer	Omcan USA
Model Number	50070
Weight	257 lbs
Width	36″
Depth	32″
Height	25″
Base Type	refrigerated
Size	1 section
Drawer Qty	2 drawers
Refrigeration	self-contained, side mounted
Compressor HP	1/6 HP
Exterior Finish	stainless steel & aluminum exterior
Top Finish	stainless steel top
Top Style	marine edge
Certifications	cETLus, ETL-Sanitation
Capacity (Cu. Ft.)	6

	Omcan USA 50070 36" 2 Drawers Refrigerated Chef Base, Side Mounted	Coldline CB36 36" 2 Drawers Refrigerated Chef Base, Marine Edge, 5.9 cu. ft., Stainless Steel Top	Hurakan HKN-CB36R1 D/E/S 36" Chef Base Refrigerator w/ 2 Drawer, 5.9 cu. ft.	Coldline CB52 52" 2 Drawers Refrigerated Chef Base, Marine Edge, 9.9 cu. ft.	Coldline CB48 48" 2 Drawers Refrigerated Chef Base, Marine Edge, 9.6 cu. ft., (4) 1/1 GN pans	Victory CBR36HC 36" 2 Drawers Refrigerated Chef Base, Marine Edge Top, 5.6 Cu Ft. Free Shipping	U-STAR USCB-36 36" 2 Drawers Refrigerated Chef Base w/ V-Edge Top, 5.9 cu. ft. Free Shipping	Omcan USA 50112 48" 2 Drawers Refrigerated Chef Base Marine Edge, 8.5 cu. ft., 115V R290, 1/6 HP	Omcan USA 50071 52" 2 Drawers Refrigerated Chef Base, Side Mounted, (6) full size pans
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Capacity (Cu. Ft.)	Capacity (Cu. Ft.)6	Capacity (Cu. Ft.)5.9	Capacity (Cu. Ft.)5.9	Capacity (Cu. Ft.)9.9	Capacity (Cu. Ft.)9.6	Capacity (Cu. Ft.)5.6	Capacity (Cu. Ft.)6	Capacity (Cu. Ft.)8.5	Capacity (Cu. Ft.)9
Certifications	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	CertificationsETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	Certifications-	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation	CertificationscETLus, ETL-Sanitation
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36.38	WIDTH (SIDE - SIDE)36.38	WIDTH (SIDE - SIDE)52.38	WIDTH (SIDE - SIDE)48.4	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36.25	WIDTH (SIDE - SIDE)48	WIDTH (SIDE - SIDE)52
Manufacturer	ManufacturerOmcan USA	ManufacturerColdline	ManufacturerHurakan	ManufacturerColdline	ManufacturerColdline	ManufacturerVictory	ManufacturerU-STAR	ManufacturerOmcan USA	ManufacturerOmcan USA
Refrigeration	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted	Refrigerationself-contained, side mounted
Width	Width25" - 36" wide	Width25" - 36" wide	Width25" - 36" wide	Width49" - 60" wide	Width37" - 48" wide	Width25" - 36" wide	Width25" - 36" wide	Width37" - 48" wide	Width49" - 60" wide
Top Finish	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top	Top Finishstainless steel top
Exterior Finish	Exterior Finishstainless steel & aluminum exterior	Exterior Finishstainless steel & aluminum exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel & aluminum exterior	Exterior Finishstainless steel & aluminum exterior	Exterior Finishgalvanized & stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel & aluminum exterior
Compressor HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/6 HP	Compressor HP1/4 HP
Drawer Qty	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers	Drawer Qty2 drawers
Base Type	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated	Base Typerefrigerated
Size	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section	Size1 section
Top Style	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge	Top Stylemarine edge
Pan Capacity	Pan Capacity -	Pan Capacity (2) 1/1 GN & (6) 1/6 GN	Pan Capacity -	Pan Capacity (6) 1/1 GN	Pan Capacity (4) 1/1 GN	Pan Capacity (4) 12" x 20" x 6"	Pan Capacity -	Pan Capacity -	Pan Capacity -

Omcan USA 50070 36" 2 Drawers Refrigerated Chef Base, Side Mounted
