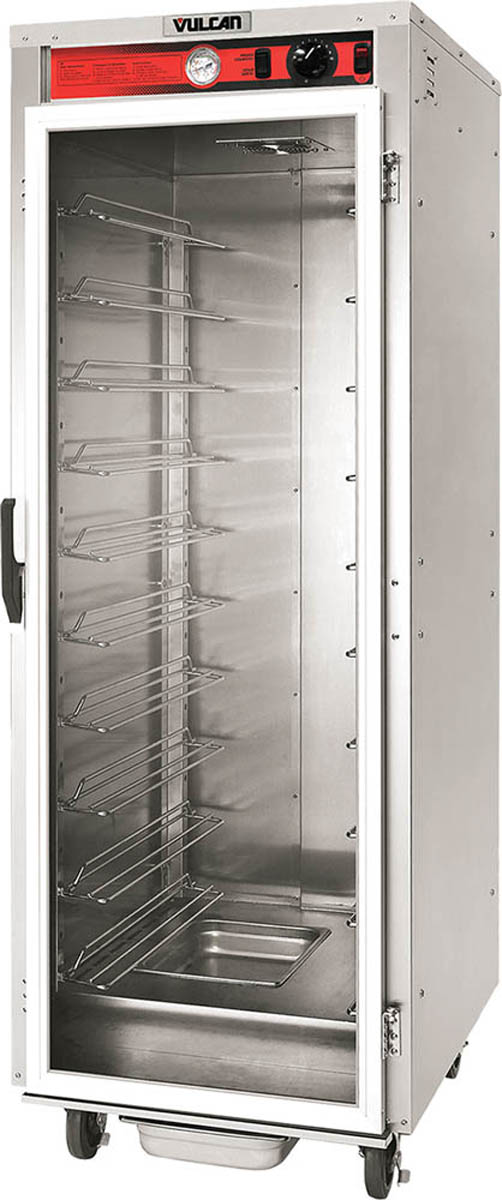

Vulcan VP18 18 PAN NON-INSULATED HEATED HOLDING & PROOFING CABINET
SPECIFICATIONS
Eighteen level heated holding and proofing cabinet, Vulcan Model No. VP18. Heavy duty 20 gauge polished stainless steel cabinet. Four 5" casters, two swivel with brakes, two rigid. Glass door with heavy duty hinges, door latch mechanism and gaskets. Adjustable interior pan supports adjust on 3" centers and are removable for easy cleaning. Accommodates up to eighteen 18" x 26" sheet pans and thirty six 12" x 20" x 2 3⁄4" steam table pans. Includes 1⁄2 gallon water pan for proofing, drip trough and removable condensation pan on the bottom of cabinet. Top mounted, control panel includes fan on/off switch, dial thermostat adjustable from ambient to 190°F, cabinet temperature thermometer, and switch to change from proofing to holding. 2,000 total watt heating elements with stainless steel cover, 16.7 total amp draw. One year limited parts and labor warranty. After the first year, 10-year parts warranty on the heating elements. Requires 120 volt single phase power supply. Furnished with top mounted power cord with strain relief and NEMA 5-20 plug.
Overall Dimensions:
25 1⁄4" W x 30 3⁄4" D x 71" H
STANDARD FEATURES
- Eighteen level heated holding and proofing cabinet accepts eighteen 18" x 26" pans or thirty-six 12" x 20" pans.
- Heavy duty 20 gauge polished stainless steel cabinet.
- Set of 5" casters, two swivel with brakes and two rigid.
- Full size glass door with field reversible heavy duty hinges, door latch mechanism, and gaskets provide visibility of the contents in the cabinet
- Adjustable interior pan supports adjust on 3" centers and are removable for easy cleaning.
- Top mounted, control panel includes fan on/off switch, dial thermostat adjustable from ambient to 190°F, cabinet temperature thermometer, and switch to change from proofing to holding.
- Top mounted control panel is easy to use and out of the way of brooms, mops, and feet. Control panel on top eliminates removing control panel for cleaning.
- Fan and air tunnel provide even heat distribution.
- 2,000 total watt heating elements with stainless steel cover, 16.7 amps total draw.
- Requires 120 volt, single phase power supply
- Furnished with top mounted power cord with strain relief and NEMA 5-20 plug (except for Canada which comes with a 5-30 plug).
- Furnished with ten pairs of tray slides.
- Includes 1⁄2 gallon water pan for proofing, drip trough and removable condensation pan on the bottom of cabinet.
- One year limited parts and labor warranty. After the first year, 10-year parts warranty on the heating elements
