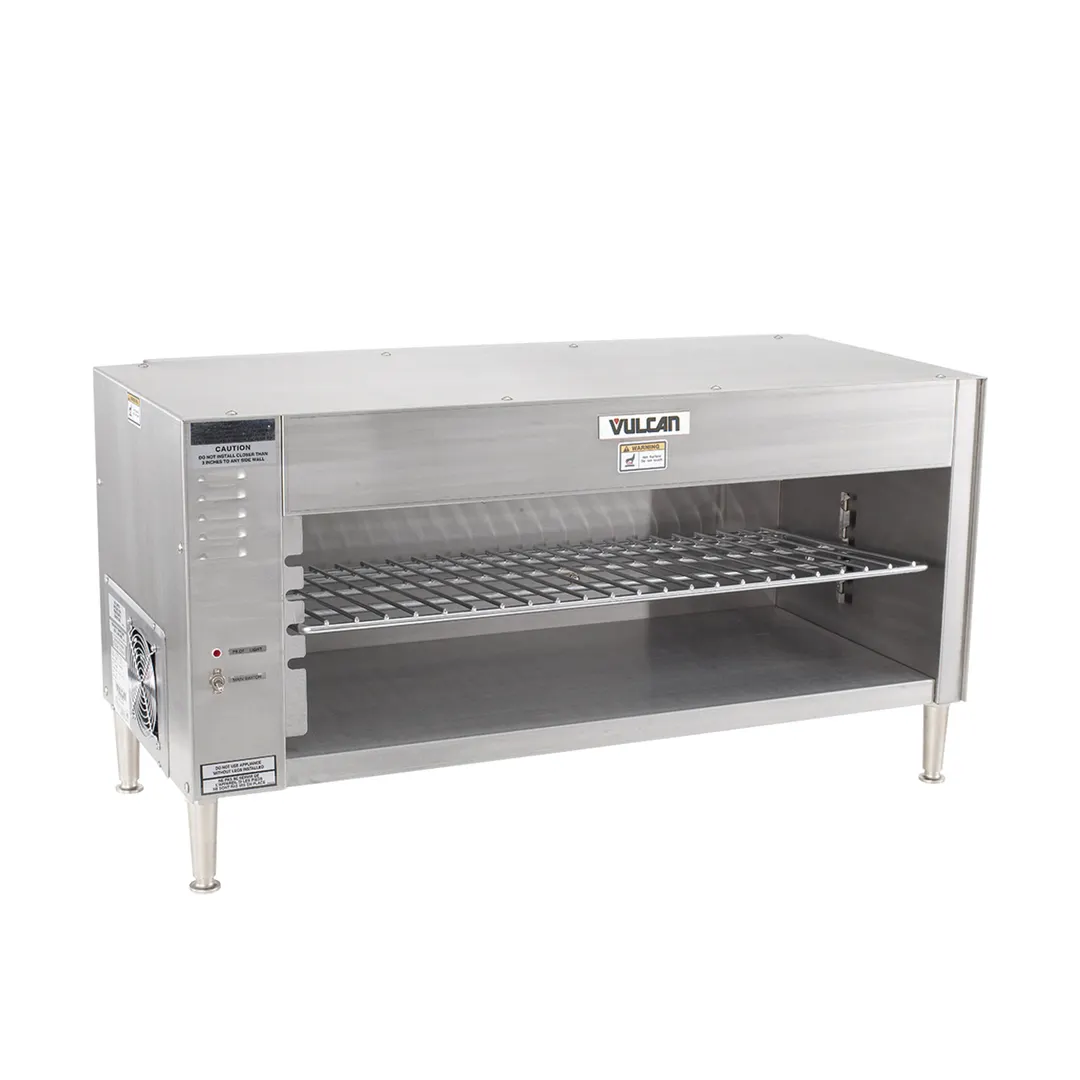

Vulcan 1024 2,400 Watt Electric Countertop Cheesemelter, Quartz Element

SPECIFICATIONS

Quartz heated, cheesemelter, (counter) (wall mount) Vulcan Models 1024, 1036, 1048. Stainless steel front, sides, top and interior. 1" of insulation on top, sides and back. Rack activated micro switch power heaters to 100% when product is placed on the rack. Idles at 25% heat when master switch is “On” and there is no product on the rack. Solid state controls with cooling fan. Top mounted energy efficient quartz heaters snap in for easy installation. Requires 208 volt or 240 volt single phase. NSF Certified. UL Listed. UL Listed to Canadian safety standards.

• 1024: 27" w x 17 1⁄8" d
• 1036: 36 1⁄2" w x 17 1⁄8" d
• 1048: 50" w x 17 1⁄8" d

STANDARD FEATURES

• Stainless steel top, inside, sides and fasteners
• Top, sides and back are insulated with 1" of insulation
• Solid state controls
• Fan cooled electrical compartment
• Inputs: 1024 Models – 2.4 KW, 1036 Models – 3.6 KW, 1048 Models – 4.8 KW
• Master switch in the “On” position causes unit to idle at 25% heat.
• 100% power “On” results from placing product on the rack.
• Rack is adjustable to four positions
• Clearance to the top from each rack position: Position 1 – 2", Position 2 – 3 1⁄2", Position 3 – 4 3⁄4", Position 4 – 6"
• 1024 and 1036 models have a single “On-Off” switch and red indicator light.
• 1048 models have a single “On-Off” switch with a red indicator light as well as right and left heater “On” switches and lights.
• Instant “On”, instant “Off” even heating, top quartz heaters.
• Energy efficient snap in heaters for easy installation.
• Available in 208 or 240 volt, single phase.
• Field wiring connection on left side.
• 4" adjustable legs.
• One year limited parts and labor warranty on all components except heating elements. 90 day limited parts and labor warranty on heating elements.
