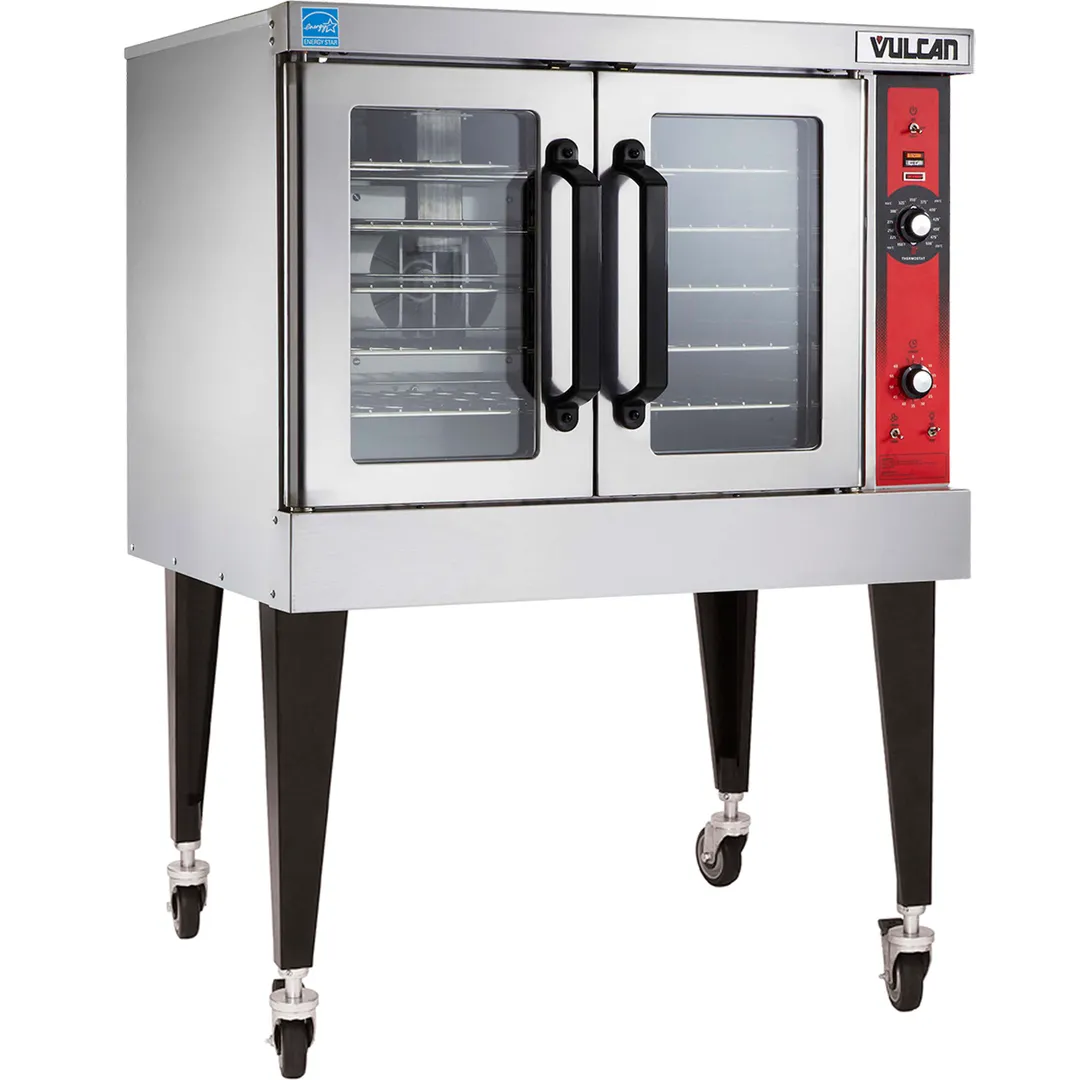

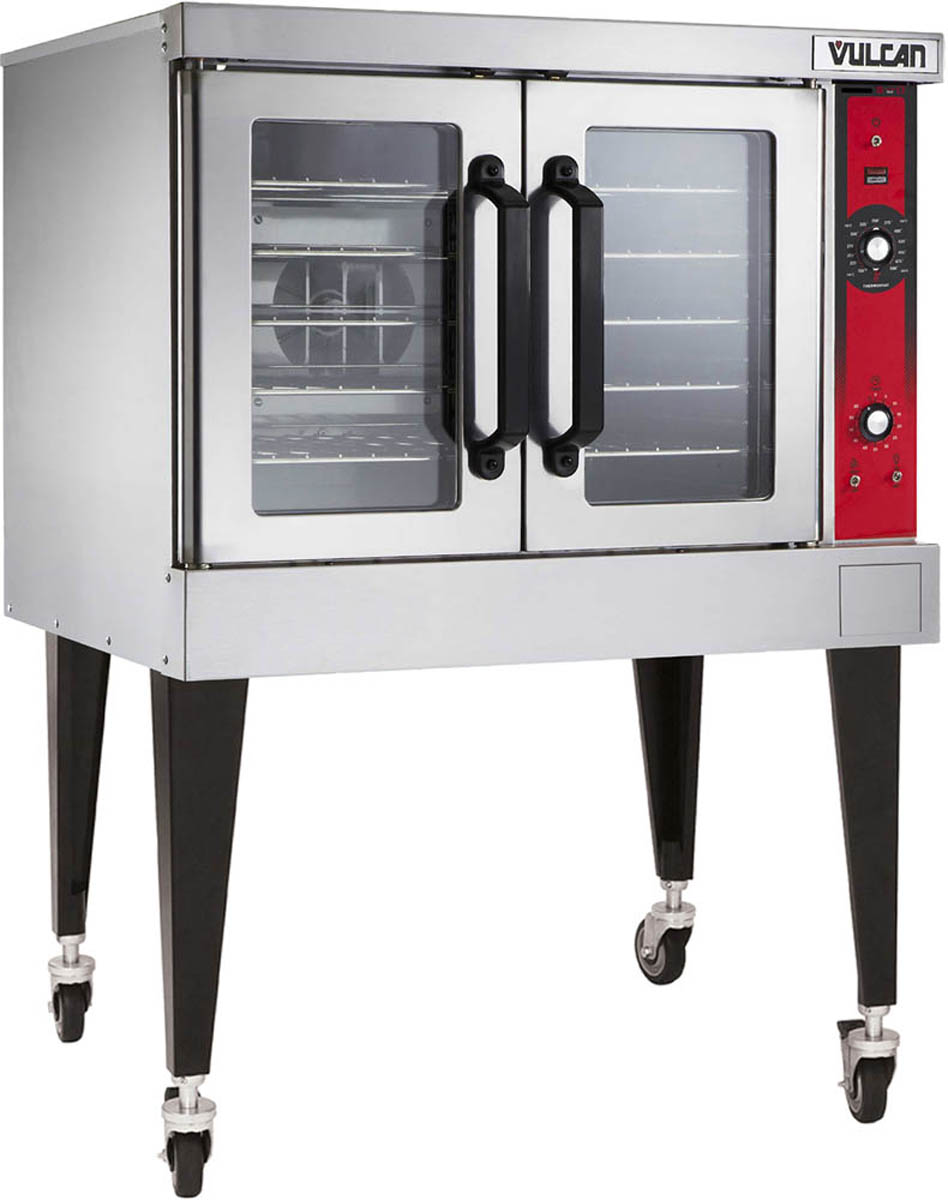

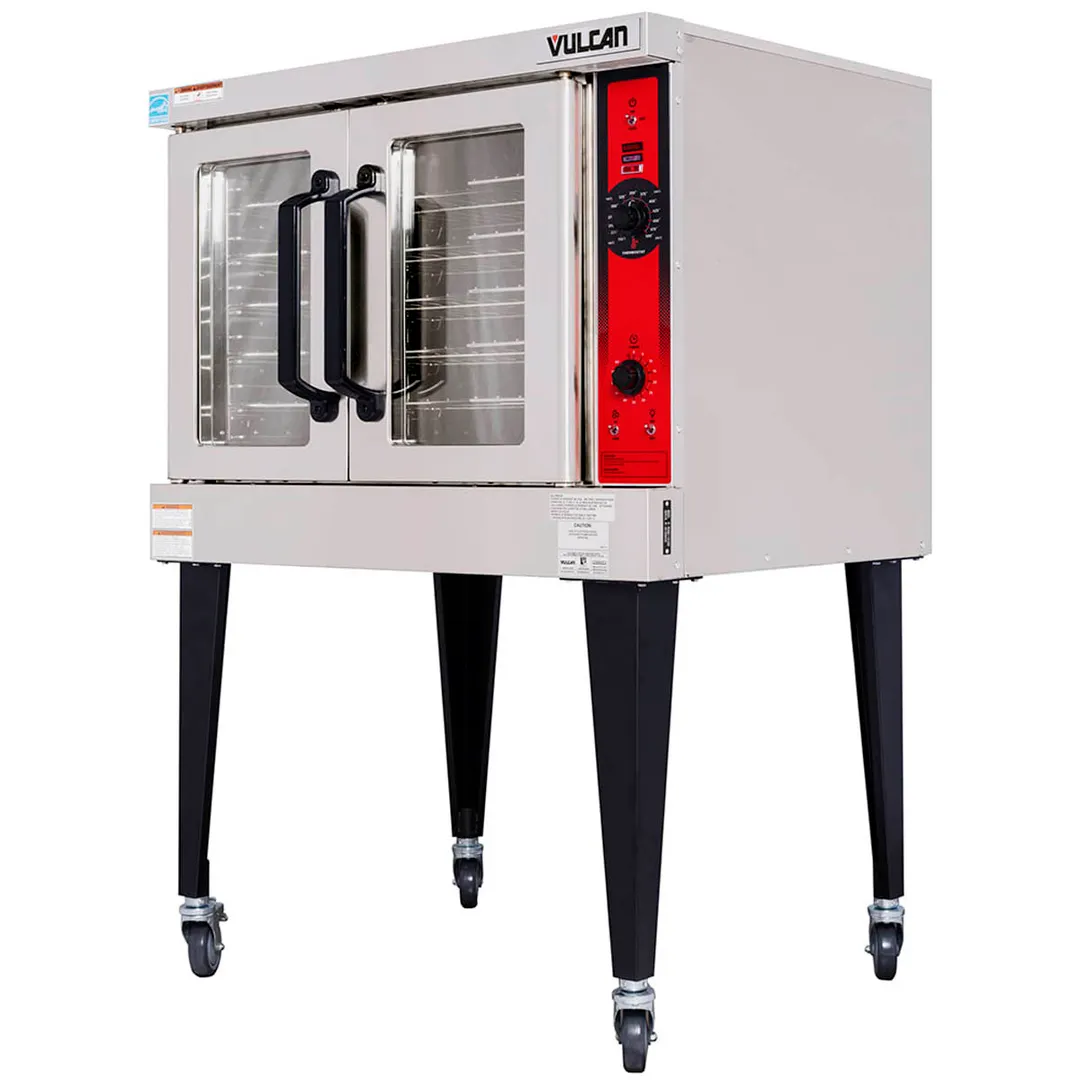

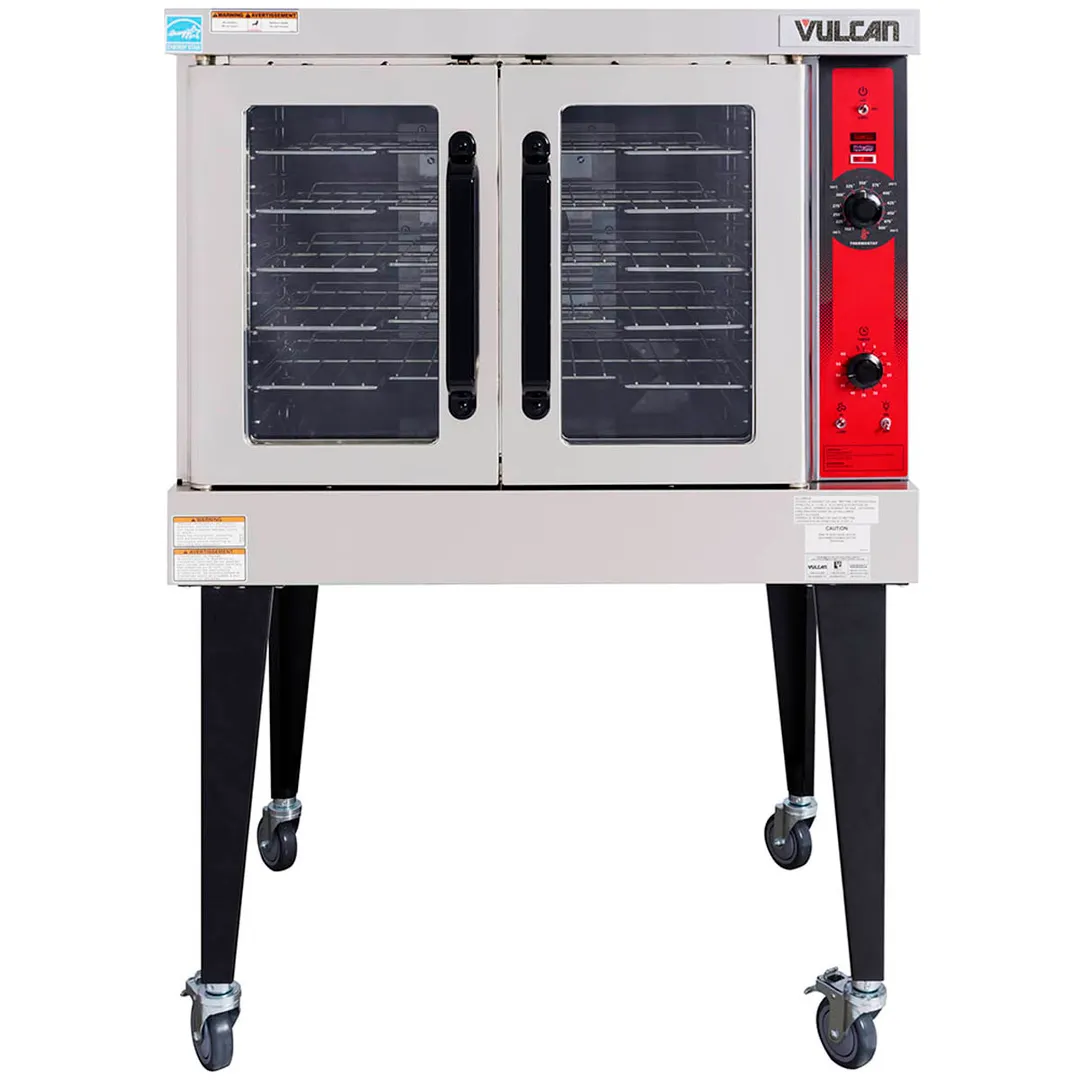

Vulcan VC4G SERIES SINGLE DECK GAS CONVECTION OVENS
SPECIFICATIONS
Single section, gas convection oven, Vulcan-Hart Model No. (VC4GD) (VC4GC). Stainless steel front, sides and top. Painted legs. Independently operated stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interior measures 29"w x 22 1⁄8"d x 20"h. Two interior oven lights. Five nickel plated oven racks measure 28 1⁄4" x 20 1⁄2". Eleven position nickel plated rack guides with positive rack stops. One 50,000 BTU/hr. burner. Electronic spark igniter. Furnished with a two speed 1⁄2 H.P. oven blower-motor. Oven cool switch for rapid cool down. 120 volt, 60 Hz, 1 ph power supply required. 6' cord and plug. 7.7 amps total draw.
Exterior Dimensions:
40 1⁄4"w x 41 1⁄8"d (includes motor & door handles) 37 3⁄4"d (includes motor only) x 54 3⁄4"h on 23 3⁄4" legs with feet. 23 3⁄4" legs can adjust an additional 1" in length. Legs with casters are adjustable from 28" to 29 1⁄8" in length. CSA design certified. NSF listed.
SPECIFY TYPE OF GAS WHEN ORDERING. SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VC4GD: Solid state temperature controls adjust from 150° to 500°F. 60 minute timer with audible alarm.
VC4GC: Computer controls with digital time and temperature readouts. 99-hour timer with audible alarm. Roast and Hold cycle. One hundred programmable menu selections. Shelf I.D. programming.
STANDARD FEATURES
- Stainless steel front, sides and top
- Painted legs.
- Independently operated stainless steel doors with double pane windows.
- 50,000 BTU/hr. burner.
- Electronic spark igniter
- 1⁄2 H.P. two speed oven blower-motor. 120/60/1 with 6' cord and plug. 7.7 amps total draw.
- Oven cool switch for rapid cool down
- Porcelain enamel on steel oven interior.
- Five nickel plated oven racks with eleven rack positions.
- 3⁄4" rear gas connection with combination gas pressure regulator and safety solenoid system.
- One year limited parts and labor warranty.
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
