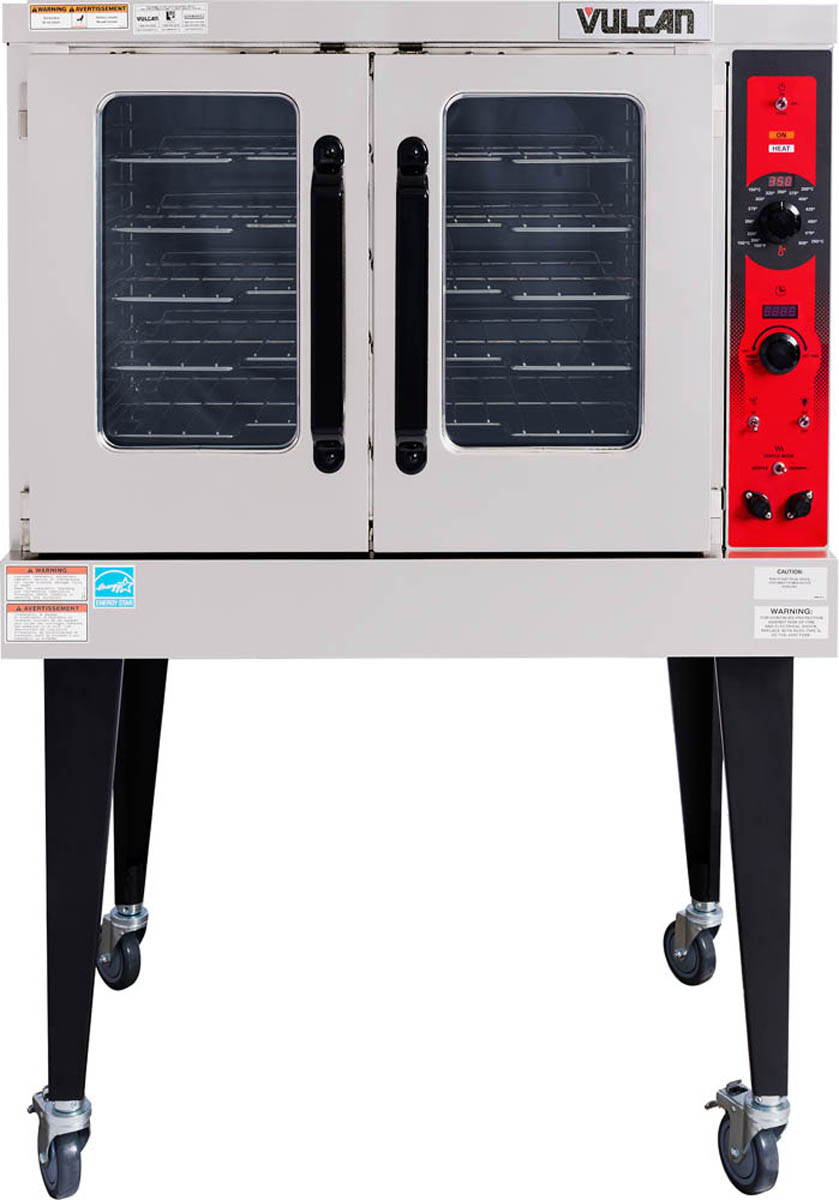

Vulcan VC5ED Electric Convection Oven VC5E SERIES SINGLE DECK ELECTRIC CONVECTION OVEN
SPECIFICATIONS
Single section, electric convection oven, Vulcan Model No. (VC5ED). Stainless steel front, sides and top. Painted legs. Independently operated removable stainless doors with double pane windows. Non-sag insulation applied to top, rear, sides, bottom. Porcelain enamel on steel oven interior measures 29"w x 22 1⁄8"d x 20"h. One interior oven light. Five nickel plated oven racks measure 28 1⁄4" x 20 1⁄2". Eleven position nickel plated rack guides with positive rack stops. Heated by electric solid sheath elements rated at 12.0 KW. Furnished with a two speed 1⁄2 H.P. oven blower motor. Oven cool switch for rapid cool down. 208/240V 60Hz 1 or 3 phase.
Exterior Dimensions:
40.1"w x 40"d (includes motor & door handles) 37"d (includes motor only) 54"h on 23 3⁄4" legs (add 2" if on casters)
VC5ED: Solid state temperature dial controls adjust from 150° to 500°F with digital display enhancement. 5-hour timer with audible alarm.
STANDARD FEATURES
- Independently operated removable stainless steel doors with double pane windows
- Gentle Bake mode selector switch.
- On-board diagnostics for easy servicing
- Five nickel plated grab-and-go oven racks with eleven rack positions.
- Stainless steel front, sides and top.
- Painted legs.
- 12.5 total KW.
- 1⁄2 H.P. two speed oven blower-motor.
- Moisture vent.
- Oven cool switch for rapid cool down
- Porcelain enamel on steel oven interior.
- One year limited parts and labor warranty.
- Three year limited warranty on doors.
