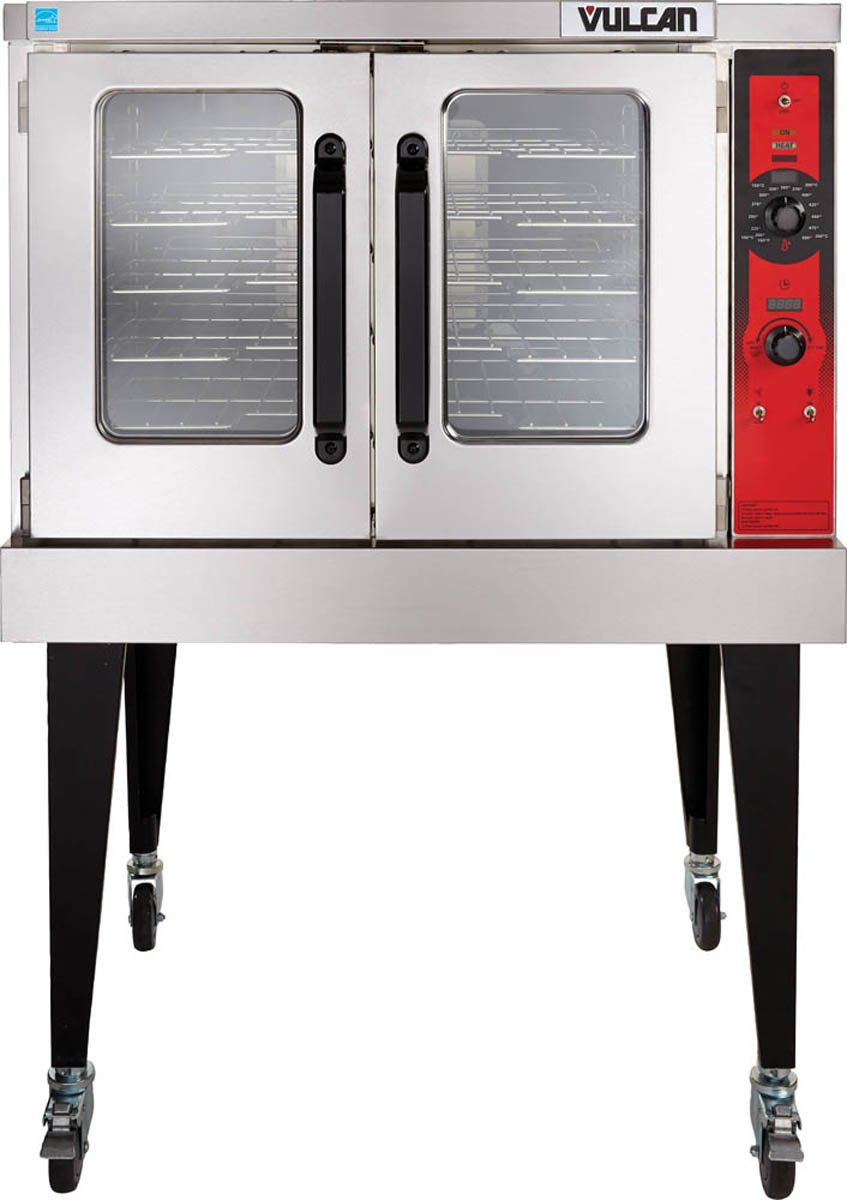

Vulcan VC5G SERIES SINGLE DECK GAS CONVECTION OVEN WITH REMOVABLE DOORS
SPECIFICATIONS
Single section, gas convection oven Vulcan Model No. VC5GD. Stainless steel front, sides and top. Painted legs. Independently operated removable stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear and sides. Porcelain enamel on steel oven interior measures 29"w x 22 1⁄8"d x 20"h. One interior oven light. Five nickel plated oven racks measure 28 1⁄4" x 20 1⁄2" with grab-and-go front cut out. Eleven position nickel plated rack guides with positive rack stops. One 50,000 BTU/hr. burner. Electronic spark igniter. Furnished with a two speed 1⁄2 H.P. oven blower-motor. Oven cool switch for rapid cool down. 120 volt, 60 Hz, 1 ph power supply required. 6' cord and plug supplied. 7.7 amps total draw.
Exterior Dimensions:
40"w x 39 1⁄4"d (includes motor & door handles) 36 1⁄2"d (includes motor only) x 543⁄4"h on 23 3⁄4" legs with feet. 23 3⁄4" legs can be adjusted an additional 1" in length. Legs with casters are adjustable from 28" to 291⁄8" in length. CSA design certified. NSF listed.
VC5GD: Solid state temperature dial controls adjust from 150° to 500°F with digital display enhancement. 5-hour timer with audible alarm.
STANDARD FEATURES

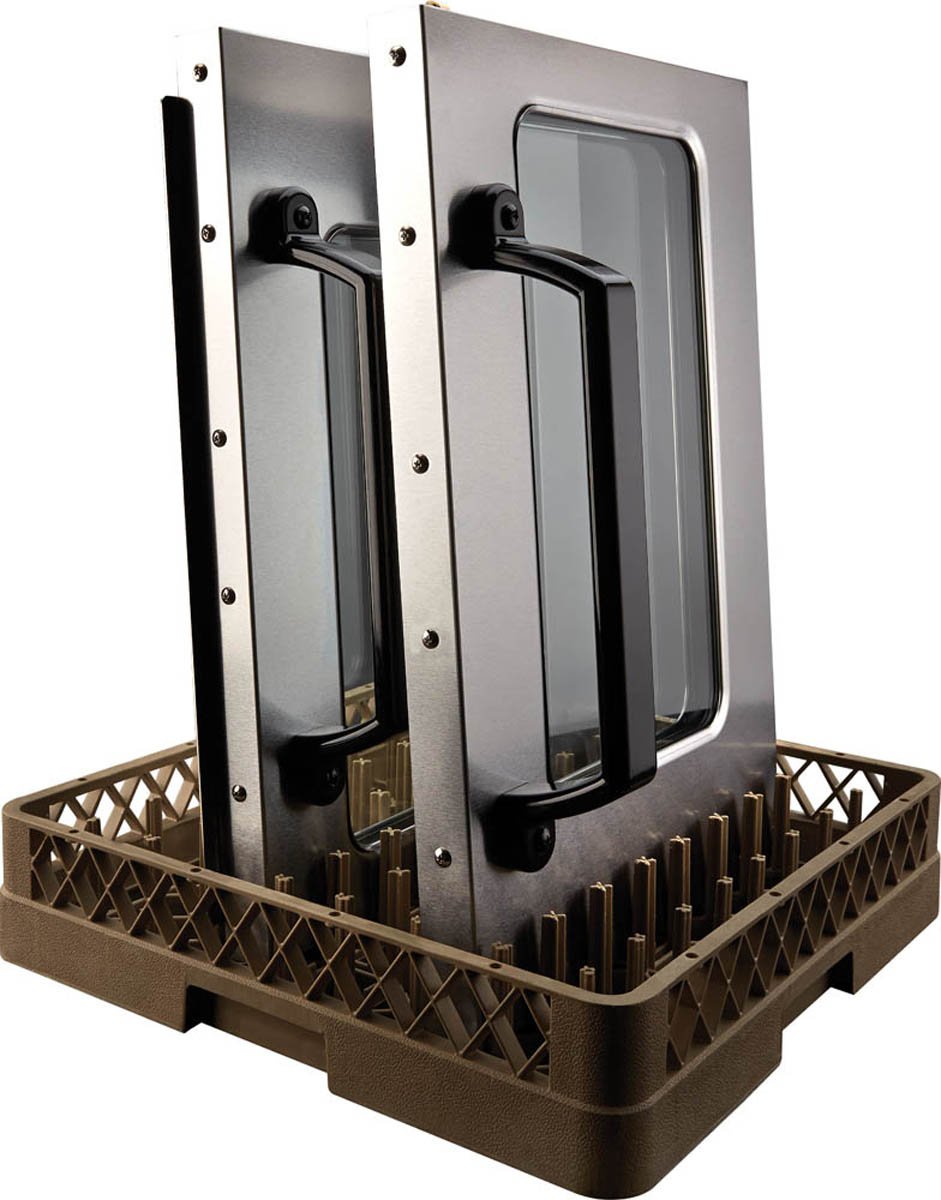

- Independently operated lift-off stainless steel doors with double pane windows.
- On-board diagnostics for easy servicing
- Stainless steel front, sides and top.
- Five nickel plated grab-and-go oven racks with eleven rack positions.
- Painted legs.
- 5-hour timer with digital display enhancement.
- Cool-to-the-touch handles.
- 50,000 BTU/hr. burner.
- Electronic spark igniter.
- 1⁄2 H.P. two speed oven blower-motor. 120/60/1 with 6' cord and plug. 7.7 amps total draw.
- Oven cool switch for rapid cool down.
- Porcelain enamel on steel oven interior.
- 3⁄4" rear gas connection with combination gas valve / pressure regulator and safety solenoid system.
- One year limited parts and labor warranty
- Three year limited warranty on doors.
